53047 (BP 6900) - Lawn-Boy Backpack Blower (SN: 200000001 - 200999999) (2000) MAIN BODY ASSEMBLY Parts Diagram

Backpack Blower

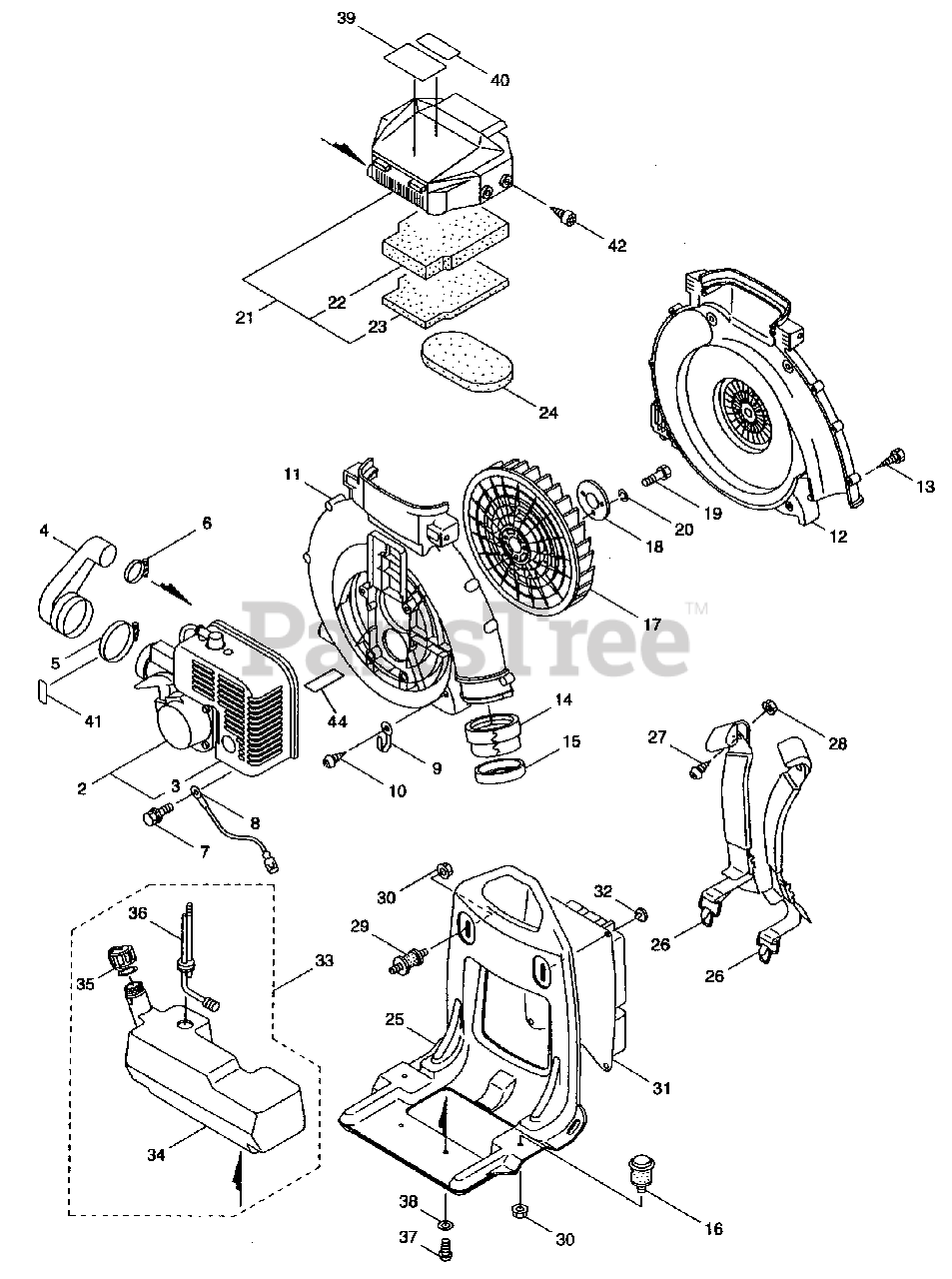

MAIN BODY ASSEMBLY Parts Diagram

  • Title
1

Blower Assembly

Note: Not Serviced

$

$

Not available

2

Lawn-Boy Ml19611

Engine (Incl. Ref. # 3)

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Lawn-Boy Ml19616

Pipe-Inlet

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Not available

8

Lawn-Boy M108634

Cord-Earth

$

$

Not available

$

$

Not available

10

Lawn-Boy M082697

Screw-Tapping

$

$

Not available

11

Lawn-Boy Ml19386

Case-Fan (E)

$

$

Currently unavailable

12

Lawn-Boy M119387

Case-Fan (S)

$

$

Not available

13

Lawn-Boy Ml18530

Screw-Tapping

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Lawn-Boy Ml19161

Rubber Band

$

$

Currently unavailable

16

$

$

Not available

$

$

Currently unavailable

18

$

$

Not available

$

$

Not available

20

Lawn-Boy M012502

Washer-Spring

$

$

Not available

21

Lawn-Boy Ml19364

Air Cleaner Assembly (Incl. Ref. # 22,23)

$

$

Currently unavailable

22

Lawn-Boy M119664

Element
(Superseded to M122951)

$42.99

$

Usually ships in 3-6 days

0

$

$

Currently unavailable

24

$

$

Not available

25

Lawn-Boy M119174

Frame-Knapsack

$265.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy Ml18802

Band-Knapsack

$

$

Currently unavailable

27

Lawn-Boy M083445

Screw
(Superseded to M127221)

$

$

Not available

$

$

Not available

29

$

$

Not available

$

$

Not available

31

Lawn-Boy Ml19177

Cushion Pad

$

$

Currently unavailable

32

$

$

Not available

33

Fuel Tank Assembly

Note: Not Serviced

$

$

Not available

34

Lawn-Boy Ml19389

Tank-Fuel

$

$

Currently unavailable

35

Lawn-Boy M119390

Cap Assembly

$

$

Not available

36

Lawn-Boy M119391

Filter Assembly

$

$

Not available

37

$

$

Not available

38

$

$

Not available

39

$

$

Not available

40

$

$

Not available

41

Lawn-Boy 99-2831

Decal-Choke

$

$

Not available

42

Lawn-Boy M082708

Screw-Tapping

$

$

Not available

43

Lawn-Boy 98-8049

Decal-Hot Surface

$

$

Not available
