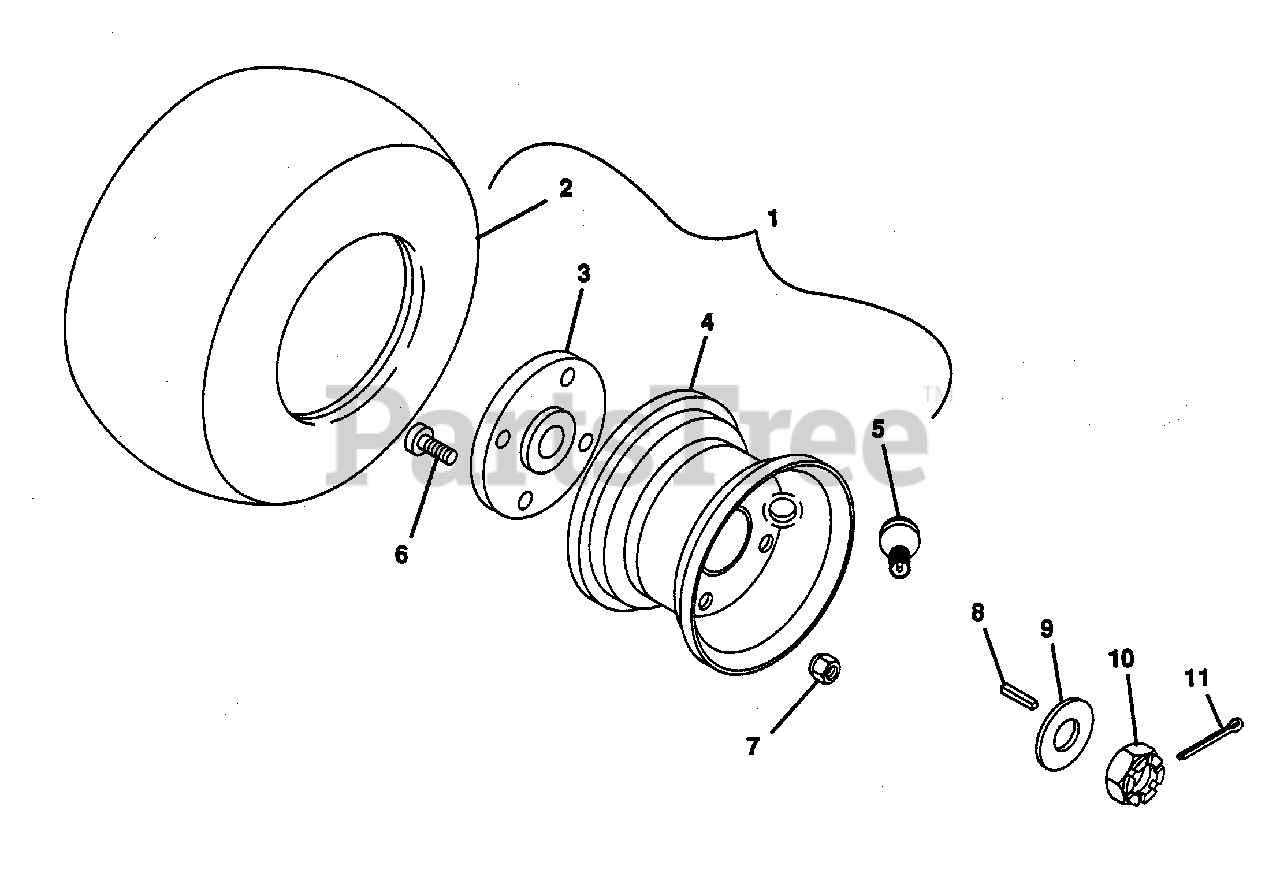

53040 - Gravely Pro 300 Walk-Behind Mower, 20hp Kohler Wheels Parts Diagram

Pro 300 Walk-Behind Mower, 20hp Kohler

Wheels Parts Diagram

  • Title
1

51235

Wheel Asm., 16x6.50-8

$

$

Not available

2

48881

Tire, 16x6.50-8

$

$

Not available

3

52056

Assembly, Hub

$

$

Not available

4

52055

Assembly, Rim

$

$

Not available

5

11191

Assembly, Valve Stem

$

$

Not available

6

52057

Bolt, 1/2-20x 1.25 Pan Head

$

$

Not available

7

11058

Nut, Rim

$

$

Not available

8

52054

Key, Square .187x.750

$

$

Not available

9

Gravely 423315

Washer, Flat .813x1.37x.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

10

52053

Nut, Hex 3/4-28 Slotted

$

$

Not available

11

Gravely 119120

Pin, Cotter .094x1.25
(Superseded to 06713400)

$0.99

$

Usually ships in 4-12 days

0
