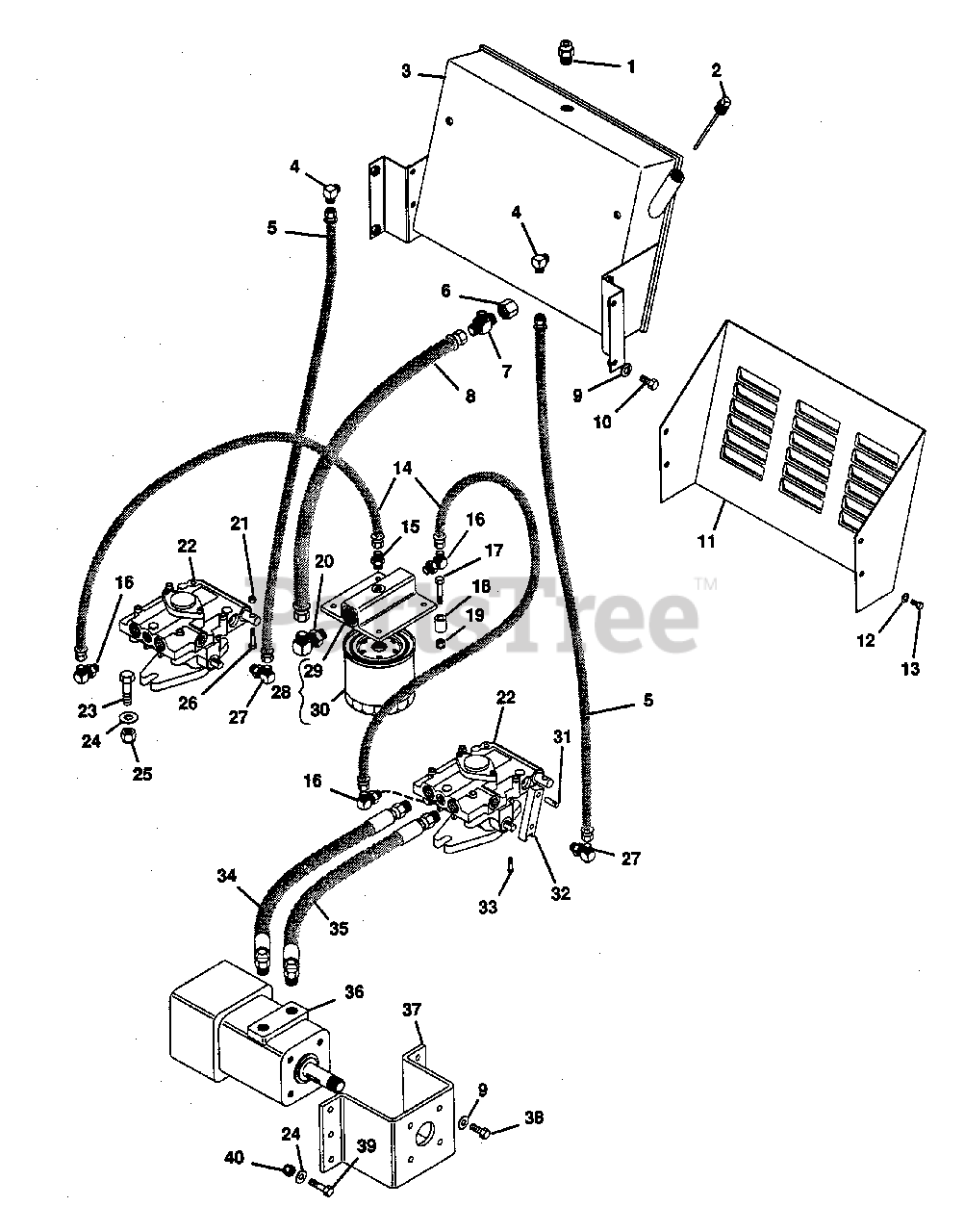

53040 - Gravely Pro 300 Walk-Behind Mower, 20hp Kohler Hydraulic System Parts Diagram

Pro 300 Walk-Behind Mower, 20hp Kohler

Hydraulic System Parts Diagram

  • Title

1

48596

Plug, 1/8 Vent

$

$

Not available

2

22457

Gauge, Hydraulic Tank Level

$

$

Not available

3

52685

Tank, Hydraulic Oil

$

$

Not available

4

35645

Adaptor, 2501-6-4 90 Deg. Elbow

$

$

Not available

5

39847

Hose, Hyd. Valve to Tank

$

$

Not available

6

51285

Capnut, 304-C-8

$

$

Not available

7

51284

Adaptor, 2601-8-8-6 Side Tee

$

$

Not available

8

51283

Hose, Tank to Filter

$

$

Not available

9

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

11

52652

Shield, Heat

$

$

Not available

12

Gravely 120380

Washer, Lock 114 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 180016

Bolt, Hex 1/4-20x.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

14

51281

Hose, Oil Filter to Pump

$

$

Not available

15

21286

Adaptor, 0503-4-4

$

$

Not available

16

18826

Adaptor, 2503-4-4

$

$

Not available

17

Gravely 180087

Bolt, Hex 5/16-18x2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

18

52653

Bush., St..328x.462x1.00 Stl.

$

$

Not available

19

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

20

50961

Adaptor, P-H #2503-8-8

$

$

Not available

21

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

22

51146

Pump, Variable Displace

$

$

Not available

23

Gravely 180123

Bolt, Hex 3/8-16x1.125

$

$

Not available

24

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 180042

Bolt, Hex 1/4-20x1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

27

18828

Adaptor, 2503-6-6

$

$

Not available

28

51142

Assembly, Spin-On Lube

$

$

Not available

29

51143

Assembly, Head

$

$

Not available

30

50968

Element

$

$

Not available

31

51889

Pin, Dowel

$

$

Not available

32

51116

Arm, Pump Actuating

$

$

Not available

33

Gravely 418934

Screw, Cap 10-24x.75 Hex Socket
(Superseded to 05932900)

$

$

Not available

34

51231

Asm, Hose Wheel Motor to Pump

$

$

Not available

35

51232

Asm, Hose Wheel Motor to Pump

$

$

Not available

36

51130

Motor, Hydraulic Wheel

$

$

Not available

37

51106

Bracket, Wheel Motor

$

$

Not available

38

Gravely 180121

Bolt, Hex 3/8-16x.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

39

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0
