53040 - Gravely Pro 300 Walk-Behind Mower, 20hp Kohler Electrical System Parts Diagram

Pro 300 Walk-Behind Mower, 20hp Kohler

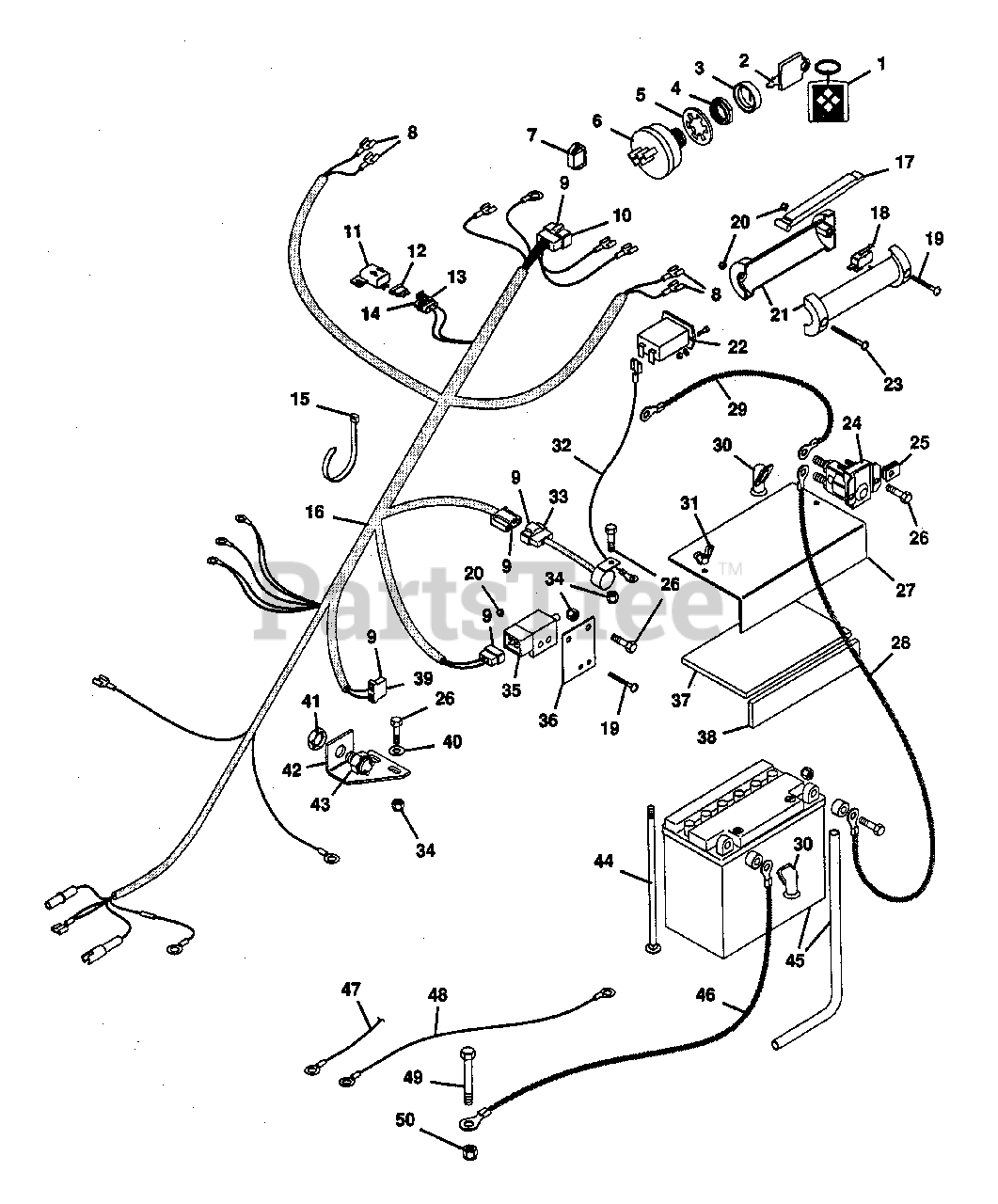

Electrical System Parts Diagram

  • Title

1

45842

Chain, Key

$

$

Not available

2

45488

Key, Ignition Switch

$

$

Not available

3

45490

Boot, for 9/16 Switch

$

$

Not available

4

45497

Nut, 5/8-32 for Switch

$

$

Not available

5

18586

Washer, Lock 5/8 Int. Th.

$

$

Not available

6

52855

Switch, Ignition w/Ground

$

$

Not available

7

50673

Light, Indicator

$

$

Not available

8

46988

Terminal, Female

$

$

Not available

9

38059

Terminal

Note: (20 HP)

$

$

Not available

9

Note: (16 HP)

$

$

Not available

10

38058

Connector

$

$

Not available

11

45921

Cover

$

$

Not available

12

45037

Fuse, 25 Amp

$

$

Not available

13

45920

Assembly, Connector

$

$

Not available

14

45923

Terminal, for 10-12 Ga. Wire

$

$

Not available

15

41634

Tie Wrap, Black

$

$

Not available

16

51568

Harness, Wiring

Note: (16 HP)

$

$

Not available

16

53036

Harness, Wiring

Note: (20 HP)

$

$

Not available

17

46822

Lever

$

$

Not available

18

46823

Switch

$

$

Not available

19

Gravely 159929

Screw, Machine 10-24x.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

20

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

53003

Handle

$

$

Not available

22

38256

Hourmeter

$

$

Not available

23

Gravely 159967

Screw, Mach. 10-24x1.50 PHDCR
(Superseded to 06118300)

$2.49

$

Usually ships in 4-12 days

0

24

45071

Switch, Magnetic

$

$

Not available

25

11676

Nut, Speed 1/4-20

$

$

Not available

26

Gravely 180020

Bolt, Hex 1/4-20x.750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

27

49294

Cover, Battery

$

$

Not available

28

42129

Cable, Battery to Solenoid

$

$

Not available

29

47649

Cable, Solenoid to Starter

Note: (16 HP)

$

$

Not available

29

35141

Cable, Solenoid to Starter

Note: (20 HP)

$

$

Not available

30

33847

Boot, Battery Cable

$

$

Not available

31

10413

Nut, Wing 1/4-20

$

$

Not available

32

21425

Wire, Instrument Panel

$

$

Not available

33

43435

Module, Interlock

Note: (20 HP)

$

$

Not available

33

41881

Module, Interlock

Note: (16 HP)

$

$

Not available

34

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

35

46219

Switch, Interlock

$

$

Not available

36

51810

Bracket, Interlock Switch

$

$

Not available

37

50417

Pad, Battery

$

$

Not available

38

50418

Pad, Battery

$

$

Not available

39

42176

Connector, 2-Wire Switch

Note: (16 HP)

$

$

Not available

39

Note: (20 HP)

$

$

Not available

40

Gravely 120392

Washer, Flat .281 x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 107354

Nut, Stamped 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

42

51717

Bracket, Interlock Switch

$

$

Not available

43

20916

Switch, Interlock

$

$

Not available

44

Gravely 126922

Bolt, 1/4-20x7.00 Rd Hd Sq Nk
(Superseded to 06200229)

$4.49

$

In Stock, only 1 left!

0

45

41358

Battery, 12 Volt

$

$

Not available

46

50383

Cable, Negative Battery

$

$

Not available

47

35378

Terminal, Ring Tongue

$

$

Not available

48

42529

Wire, Ground

$

$

Not available

49

Gravely 180087

Bolt, Hex 5/16-18x2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

52071

Decal, Hydro-Pro

Note: NS

$

$

Not available
