53033 - Gravely 60" Deck Mulching Kit MULCHING KIT Parts Diagram

60" Deck Mulching Kit

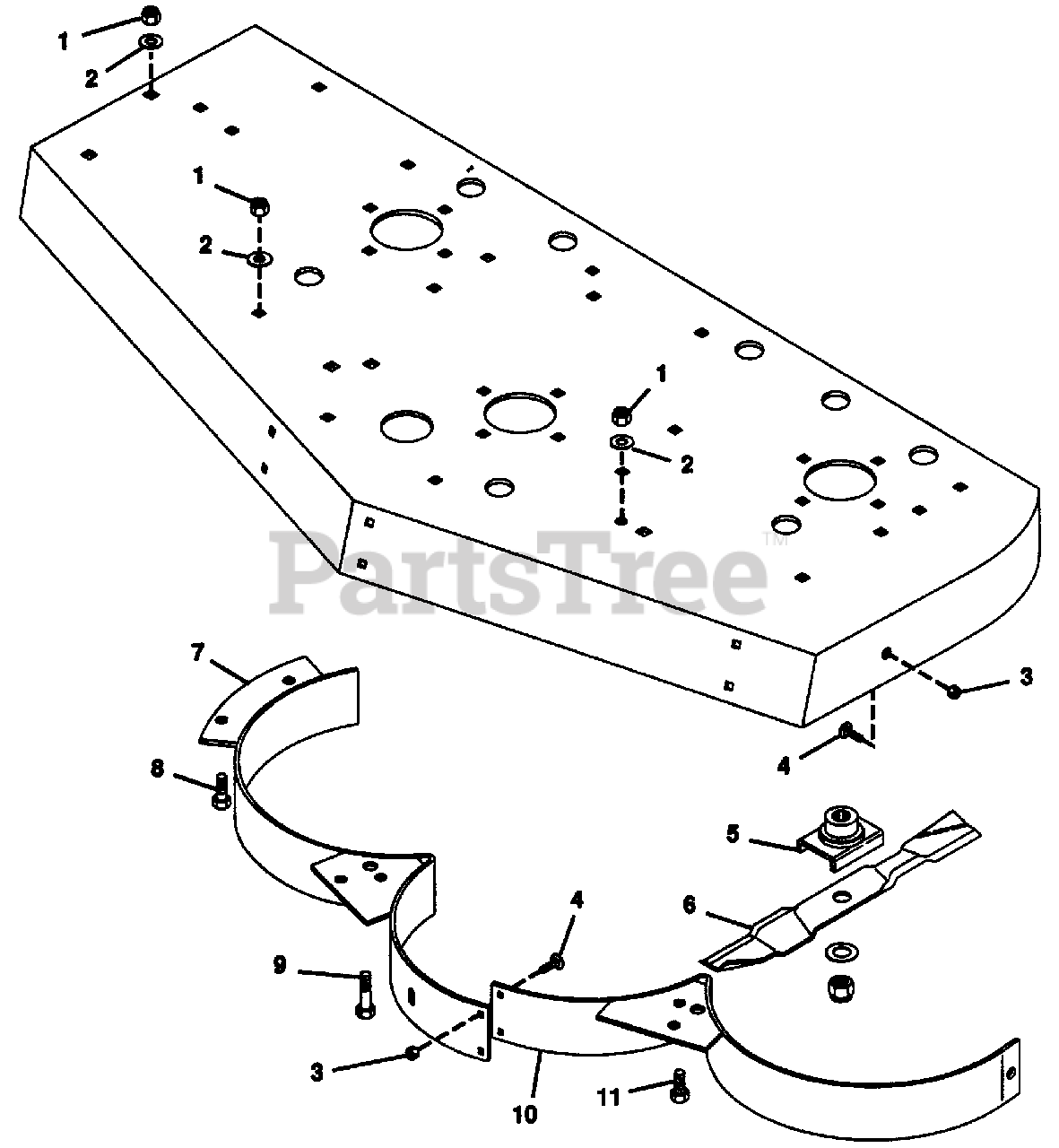

MULCHING KIT Parts Diagram

  • Title
1

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

2

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 126203

Bolt, 1/4-20x.625 Rd Hd Sq Nk
(Superseded to 06213800)

$

$

Not available

5

Gravely 047684

Weldment, Blade Cradle
(Superseded to 08798700)

$124.99

$

Usually ships in 4-12 days

0

6

Gravely 052929

Blade, Mulching 40" Mower
(Superseded to 08866900)

$37.99

$

In Stock, Qty 20+

0

7

Gravely 053014

Weldment, Discharge Baffle
(Superseded to 08854300)

$

$

Not available

8

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 180128

Bolt, Hex 3/8-16x1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 053015

Weldment, Mulching Baffle
(Superseded to 08854400)

$

$

Not available

11

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0
