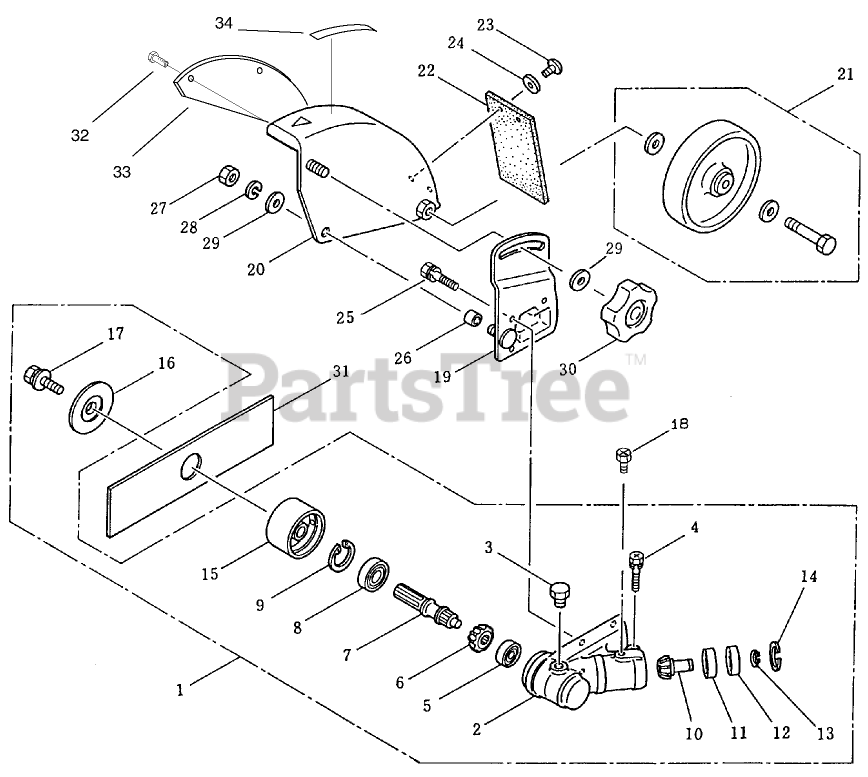

53030 - Toro 8" Stick Edger, Curved Shaft (SN: 079000001 - 079999999) (1997) GEARCASE ASSEMBLY Parts Diagram

8" Stick Edger, Curved Shaft

GEARCASE ASSEMBLY Parts Diagram

  • Title

1

Toro M220971

Gearcase Assembly (Incl. Ref. #2-17)

$

$

Not available

2

Toro M219077

GEARCASE

$

$

Not available

3

Toro M089101

Bolt

$

$

Currently unavailable

4

Toro M092561

BOLT

$

$

Not available

5

Toro M210554

BEARING

$

$

Not available

6

Toro M210555

GEAR

$108.99

$

Usually ships in 3-6 days

0

7

Toro M216056

SHAFT - BLADE

$

$

Not available

8

Toro M212999

BEARING

$

$

Not available

9

Toro M055185

RING - SNAP

$

$

Not available

10

Toro M216629

GEAR - PINION

$

$

Not available

11

Toro M210560

BEARING

$

$

Not available

12

Toro M217042

BEARING

$

$

Not available

13

Toro M140269

RING - SNAP

$

$

Not available

14

Toro M140270

RING - SNAP

$

$

Not available

15

Toro M220148

ADAPTER - BOSS

$

$

Not available

16

Toro M215546

WASHER - CLAMPING

$

$

Not available

17

Toro M215610

BOLT

$

$

Not available

18

Toro M089737

BOLT

$

$

Not available

19

Toro M220149

PLATE

$

$

Not available

20

Toro M221756

Shield Assembly (Incl. Ref. # 34)

$

$

Not available

21

Toro M220160

ASM - WHEEL

$

$

Not available

22

Toro M220162

FLAP

$

$

Not available

23

Toro M086053

SCREW - TAPPING

$

$

Not available

24

Toro M550163

WASHER

$

$

Not available

25

Toro M092578

BOLT

$

$

Not available

26

Toro M220165

COLLAR

$

$

Not available

27

Toro M081039

NUT

$

$

Not available

28

Toro M015845

WASHER - SPRING

$

$

Not available

29

Toro M014065

WASHER M8

$

$

Not available

30

Toro M219088

KNOB - CLAMPING

$

$

Not available

31

Toro M216062

BLADE - EDGER

$25.99

$

Usually ships in 3-6 days

0

32

Toro M221580

SCREW

$

$

Not available

33

Toro M221579

SHIELD

$

$

Not available

34

Toro M221528

Decal-Caution

$

$

Currently unavailable
