53011 (53005) - Toro Straight Shaft Trimmer (SN: 089000001 - 089050000) (1998) ENGINE ASSEMBLY Parts Diagram

Straight Shaft Trimmer

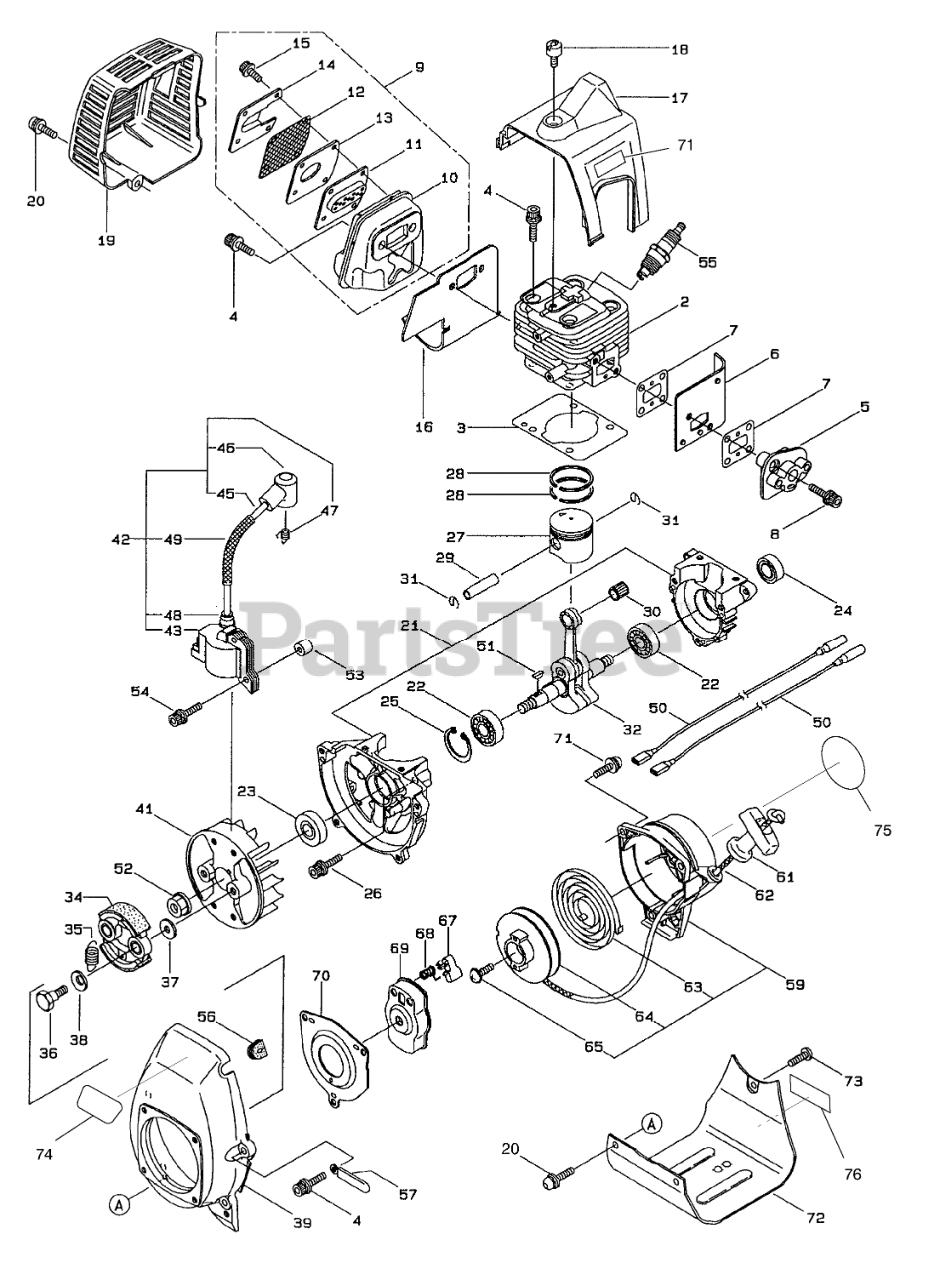

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Toro M264989

CYLINDER

$403.99

$

Usually ships in 3-6 days

0

3

Toro M265001

GASKET

$

$

Not available

4

Toro M261250

BOLT

$2.99

$

Usually ships in 3-6 days

0

5

Toro M265802

INSULATOR

$

$

Not available

6

Toro M265470

DUCT - AIR

$

$

Not available

7

Toro M261171

GASKET

$

$

Not available

8

Toro M265924

SCREW

$

$

Not available

9

Toro M264993

Muffler Assembly (Incl. Ref. #10-15)

$135.99

$

Usually ships in 3-6 days

0

10

Toro M265063

MUFFLER

$

$

Not available

11

Toro M264864

PLATE

$

$

Not available

12

Toro M264835

SCREEN

$

$

Not available

13

Toro M264837

GASKET

$

$

Not available

14

Toro M264836

OUTLET - EXHAUST

$

$

Not available

15

Toro M265107

CAPSCREW

$

$

Not available

16

Toro M265133

GASKET

$

$

Not available

17

Toro M266491

COVER - CYLINDER

$

$

Not available

18

Toro M265742

COVER - KNOB,TOP

$

$

Not available

19

Toro M265004

COVER - MUFFLER

$

$

Not available

20

Toro M264807

CAPSCREW

$

$

Not available

21

Toro M265006

CRANKCASE

$254.99

$

Usually ships in 3-6 days

0

22

Toro M261491

BEARING

$

$

Not available

23

Toro M261492

SEAL - OIL

$

$

Not available

24

Toro M261386

SEAL - OIL

$

$

Not available

25

Toro M055185

RING - SNAP

$

$

Not available

26

Toro M261612

BOLT

$

$

Not available

27

Toro M265012

PISTON

$

$

Not available

28

Toro M261496

RING - PISTON

$

$

Not available

29

Toro M261497

PIN - PISTON

$

$

Not available

30

Toro M261037

BEARING - NEEDLE

$

$

Not available

31

Toro M261576

CIRCLIP

$

$

Not available

32

Toro M265197

CRANKSHAFT

$431.99

$

Usually ships in 3-6 days

0

34

Toro M264026

SHOE - CLUTCH

$

$

Not available

35

Toro M264028

SPRING - CLUTCH

$12.99

$

Usually ships in 3-6 days

0

36

Toro M264505

BOLT - CLUTCH

$

$

Not available

37

Toro M261189

WASHER

$

$

Not available

38

Toro M261777

WASHER - WAVE

$

$

Not available

39

Toro M266158

COVER - FAN

$

$

Not available

41

Toro M261356

ROTOR

$

$

Not available

42

Toro M261301

Ignition Coil Assembly (Incl. Ref. #43-49)

$

$

Not available

43

Toro M261302

COIL

$

$

Not available

45

Toro M261071

CABLE - IGNITION

$

$

Not available

46

Toro M261074

CAP - PLUG

$

$

Not available

47

Toro M261075

CONNECTOR

$

$

Not available

48

Toro M261072

CAP

$

$

Not available

49

Toro M261073

TUBE

$

$

Not available

50

Toro M261772

LEAD

$

$

Not available

51

Toro M261076

KEY - WOODRUFF

$

$

Not available

52

Toro M261417

WASHER & NUT

$

$

Not available

53

Toro M261078

SPACER

$

$

Not available

54

Toro M261256

BOLT

$

$

Not available

55

Toro M261200

SPARK PLUG

$

$

Not available

56

Toro M261202

GROMMET

$

$

Not available

57

Toro M264588

CLAMP

$

$

Not available

59

Toro M265019

Recoil Assembly (Incl. Ref. #60-65)

$

$

Not available

61

Toro M261725

GRIP - STARTER

$

$

Not available

62

Toro M261724

ROPE - STARTER

$

$

Not available

63

Toro M261721

SPRING - SPIRAL

$

$

Not available

64

Toro M261720

REEL

$

$

Not available

65

Toro M262922

SCREW

$

$

Not available

67

Toro M263477

PAWL

$16.99

$

Usually ships in 3-6 days

0

68

Toro M261728

SPRING - RETURN

$

$

Not available

69

Toro M263476

STARTER

$

$

Not available

70

Toro M264999

PLATE

$

$

Not available

71

Toro M266291

DECAL - WARNING

$

$

Not available

72

Toro M266025

STAND - ENGINE

$

$

Not available

73

Toro M266190

SCREW

$

$

Not available

74

Toro M266323

DECAL - TORO

$

$

Not available

75

Toro M266211

DECAL - TORO

$

$

Not available

76

Toro 25-9150

REPLACEMNT SERIAL PLT

$19.99

$

Usually ships in 3-6 days

0

Toro M261910

LIQUID GASKET

Note: Not illustrated

$

$

Not available

Toro M266204

ASM - ENGINE,LE260/05

Note: Not illustrated

$

$

Not available
