53011 (53005) - Lawn-Boy Straight Shaft String Trimmer (SN: 000895001 - 000899999) (1998) CARBURETOR AND FUEL ASSEMBLY Parts Diagram

Straight Shaft String Trimmer

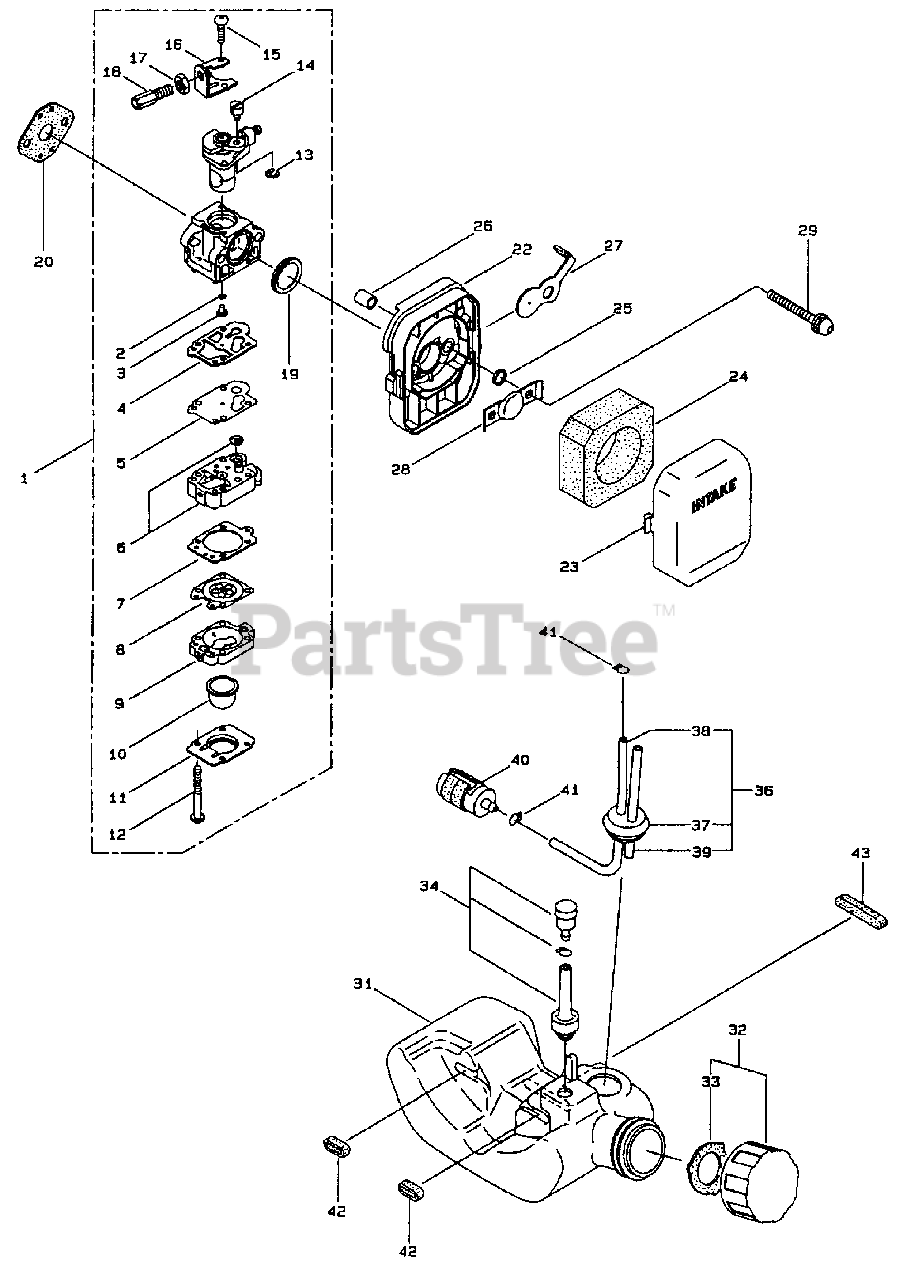

CARBURETOR AND FUEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy M266150

Carburetor Assembly (Incl. Ref. # 2-19)

$461.99

$

Usually ships in 3-6 days

0

2

$

$

Not available

3

Lawn-Boy M266462

Main Jet

$

$

Not available

4

$

$

Not available

5

Lawn-Boy M262994

Diaphragm

$

$

Not available

6

Lawn-Boy M264155

Pump Body

$

$

Not available

7

$

$

Not available

8

Lawn-Boy M261873

Diaphragm

$

$

Not available

9

Lawn-Boy M262991

Purge Body

$

$

Not available

10

Lawn-Boy M261874

Primer Bulb

$23.99

$

In Stock, only 1 left!

0

11

Lawn-Boy M262992

Cover Plate

$

$

Not available

12

$

$

Not available

13

$

$

Not available

14

$

$

Not available

15

Lawn-Boy M261875

Screw
(Superseded to M260607)

$

$

Not available

16

$40.99

$

Usually ships in 3-6 days

0

$

$

Not available

18

$

$

Not available

19

$

$

Not available

20

$5.49

$

Usually ships in 3-6 days

0

22

$

$

Not available

23

$

$

Not available

24

$

$

Not available

25

$

$

Not available

26

$

$

Not available

27

Lawn-Boy M266423

Choke Valve

$

$

Not available

28

$

$

Not available

29

Lawn-Boy M264016

Cap Screw

$

$

Not available

31

Lawn-Boy M265032

Fuel Tank

$

$

Not available

32

Lawn-Boy M264784

Fuel Tank Cap Assembly (Incl. Ref. # 34)

$

$

Not available

33

$4.49

$

Usually ships in 3-6 days

0

34

Lawn-Boy M261696

Breather Assembly

$

$

Not available

36

Lawn-Boy M265867

Fuel Pipe Assembly (Incl. Ref. # 38-40)

$

$

Not available

37

$

$

Not available

38

Lawn-Boy M261690

Fuel Pipe

$16.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy M263038

Return Pipe

$2.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy M261797

Fuel Filter Assembly

$

$

Not available

$

$

Not available

$

$

Not available

$

$
