53010 (53013) - Toro Straight Shaft Trimmer (SN: 089005001 - 089009999) (1998) CARBURETOR AND FUEL ASSEMBLY Parts Diagram

Straight Shaft Trimmer

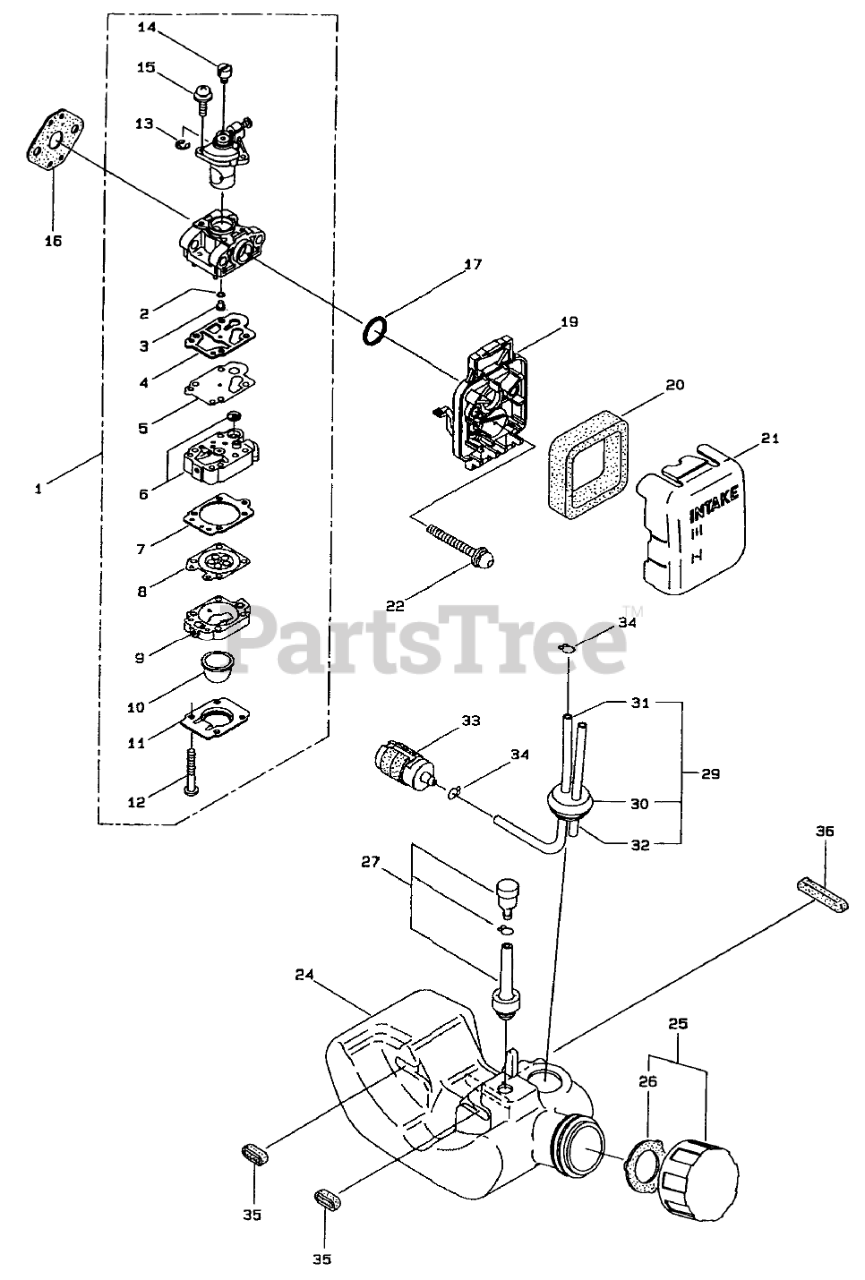

CARBURETOR AND FUEL ASSEMBLY Parts Diagram

  • Title

1

Toro M266155

Carburetor Assembly (Incl. Ref. # 2-15)

$468.99

$

Usually ships in 3-6 days

0

2

Toro M261871

O-RING

$

$

Not available

3

Toro M262728

JET - MAIN

$

$

Not available

4

Toro M262995

GASKET (NC)

$

$

Not available

5

Toro M262994

PUMP - DIAPHRAGM (NC)

$

$

Not available

6

Toro M264155

PUMP - BODY (NC)

$

$

Not available

7

Toro M262993

GASKET (NC)

$

$

Not available

8

Toro M261873

ASM - DIAPHRAGM

$

$

Not available

9

Toro M262991

PURGE - BODY (NC)

$

$

Not available

10

Toro M261874

PRIMER

$23.99

$

In Stock, only 1 left!

0

11

Toro M262992

PLATE - COVER (NC)

$

$

Not available

12

Toro M262996

SCREW (NC)

$

$

Not available

13

Toro M261876

E-RING

$

$

Not available

14

Toro M261658

SWIVEL

$

$

Not available

15

Toro M264682

SCREW

$

$

Not available

16

Toro M261864

GASKET

$5.49

$

Usually ships in 3-6 days

0

17

Toro M264691

O-RING

$

$

Not available

19

Toro M266433

HOUSING - AIR CLEANER

$

$

Not available

20

Toro M264695

ELEMENT

$15.99

$

In Stock, only 2 left!

0

21

Toro M264709

COVER

$40.99

$

Usually ships in 3-6 days

0

22

Toro M264016

CAPSCREW

$

$

Not available

24

Toro M265466

TANK - FUEL

$

$

Not available

25

Toro M264784

Fuel Tank Cap Assembly (Incl. Ref. # 26)

$

$

Not available

26

Toro M261105

PACKING

$4.49

$

Usually ships in 3-6 days

0

27

Toro M261696

ASM - BREATHER

$

$

Not available

29

Toro M265867

Fuel Pipe Assembly (Incl. Ref. # 30-32)

$

$

Not available

30

Toro M265869

GROMMET

$

$

Not available

31

Toro M261690

PIPE - FUEL

$16.99

$

Usually ships in 3-6 days

0

32

Toro M263038

PIPE - RETURN

$2.99

$

Usually ships in 3-6 days

0

33

Toro M261797

ASM - FUEL FILTER

$

$

Not available

34

Toro M261117

CLIP

$

$

Not available

35

Toro M264318

PAD

$

$

Not available

36

Toro M263824

PAD

$

$

Not available
