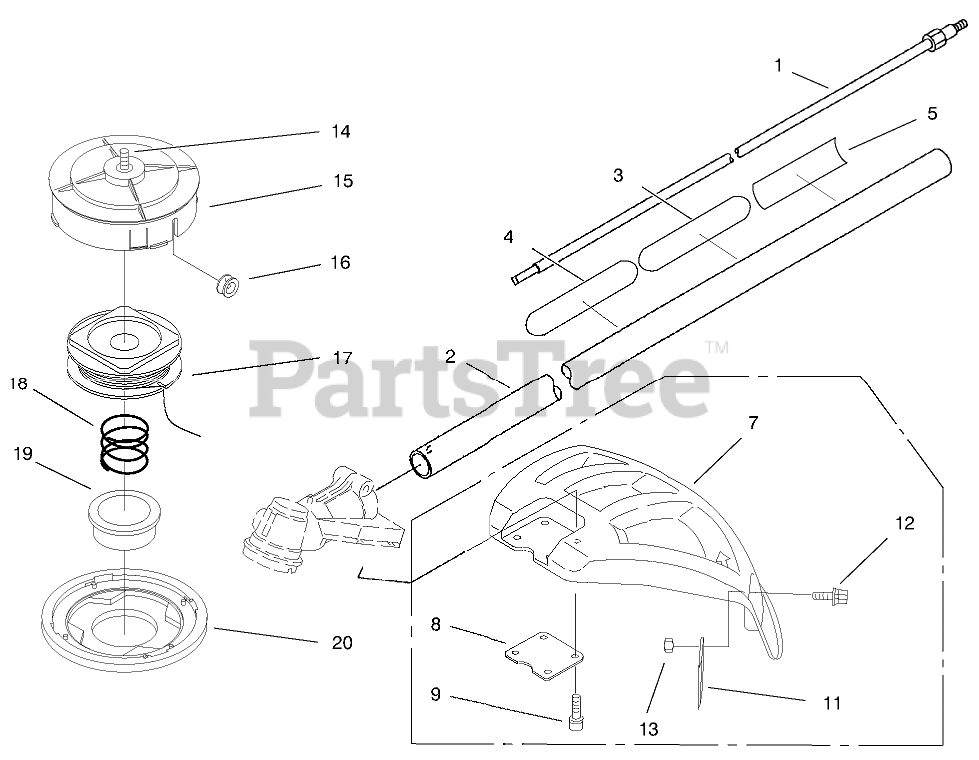

53009 - Toro String Trimmer, Straight Shaft (SN: 200000001 - 200999999) (2000) HEAD, SHAFT AND SHIELD ASSEMBLY Parts Diagram

String Trimmer, Straight Shaft

HEAD, SHAFT AND SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro M221524

DRIVE SHAFT-STRAIGHT

$108.99

$

Usually ships in 3-6 days

0

2

Toro M222922

Driveshaft Tube Asm (Incl. Ref. #3,4)

$345.99

$

Usually ships in 3-6 days

0

3

Toro M221501

DECAL - CAUTION

$

$

Not available

4

Toro M221502

DECAL - CAUTION

$

$

Not available

5

Toro M221500

DECAL - TORO

$

$

Not available

7

Toro M222880

SAFETY COVER

$63.99

$

Usually ships in 3-6 days

0

8

Toro M222899

PLATE

$

$

Not available

9

Toro M092579

BOLT

$

$

Not available

10

Toro M222898

String Cutter Asm (Incl. Ref. #11-13)

Note: Not illustrated

$

$

Not available

11

Toro M222900

STRING CUTTER

$

$

Not available

12

Toro M092548

BOLT

$

$

Not available

13

Toro M081027

NUT M5

$2.49

$

Usually ships in 3-6 days

0

14

Toro 95-7468

BOLT

$

$

Not available

15

Toro 95-7451

HOUSING

$53.99

$

Usually ships in 3-6 days

0

16

Toro 95-7450

EYELET

$2.99

$

In Stock, Qty 7

0

17

Toro 95-7455

SPOOL W/LINE (LH)

$37.99

$

Usually ships in 3-6 days

0

Toro 95-7452

SPOOL

Note: Not illustrated

$38.99

$

Usually ships in 3-6 days

0

18

Toro 95-7465

SPRING

$

$

Not available

19

Toro 95-7453

BUTTON

$14.99

$

In Stock, only 1 left!

0

20

Toro 95-7454

COVER (SN-348L)

$45.99

$

In Stock, only 3 left!

0

Toro 95-4424

4" Head Asm (Incl. Ref. #14-20)

Note: Not illustrated

$

$

Not available
