53009 - Gravely 50" Deck Mulching Kit for Pro-Walk Mower MULCHING KIT Parts Diagram

50" Deck Mulching Kit for Pro-Walk Mower

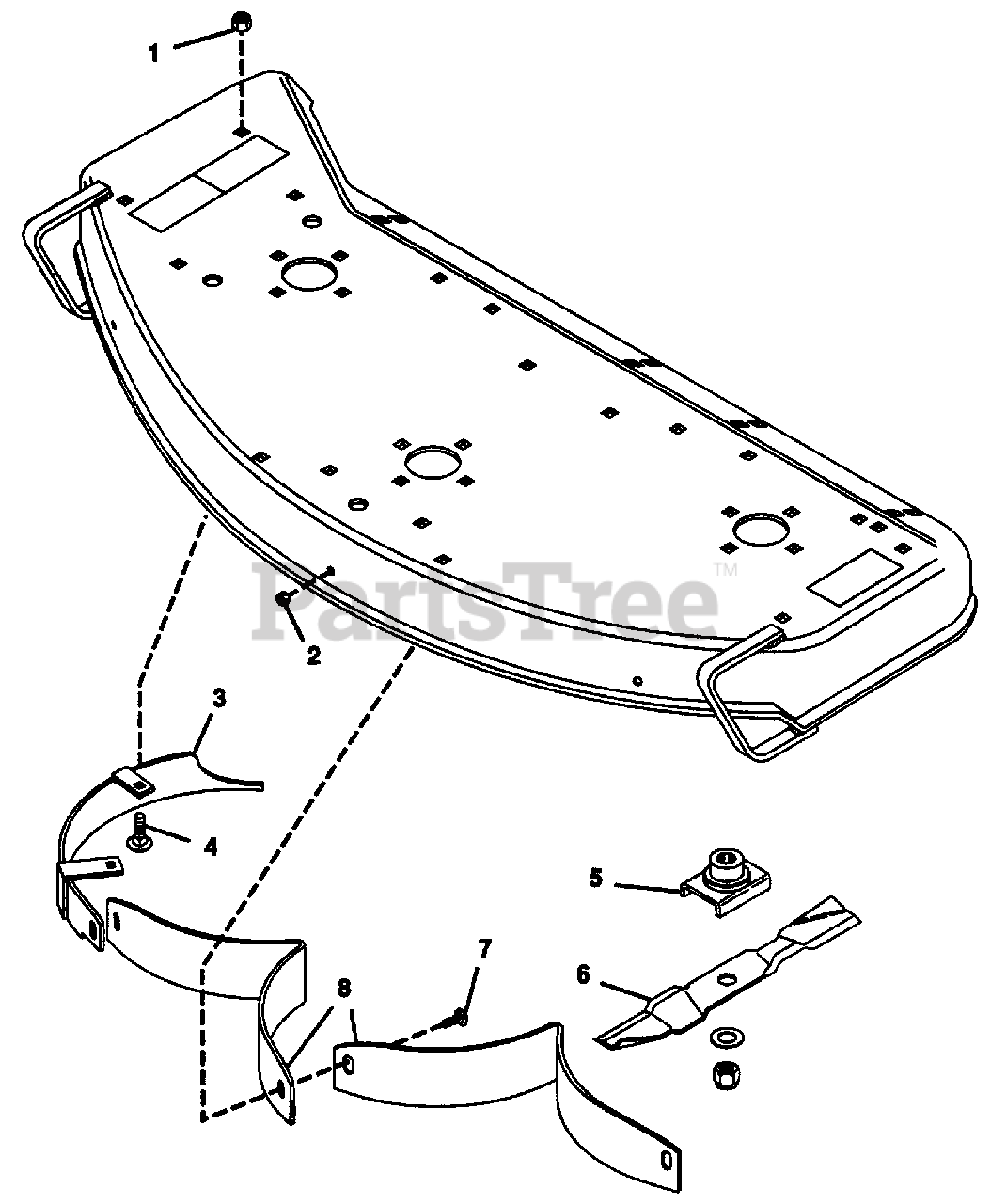

MULCHING KIT Parts Diagram

  • Title

1

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

2

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 052983

Weldment, Chute Baffle
(Superseded to 08853800)

$

$

Not available

4

Gravely 126227

Bolt, Carriage 3/8-16x.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 047684

Weldment, Blade Cradle
(Superseded to 08798700)

$124.99

$

Usually ships in 4-12 days

0

6

Gravely 052928

Blade, Mulching 50" Mower
(Superseded to 08866800)

$33.99

$

In Stock, Qty 20+

0

7

Gravely 126211

Bolt, 5/16-18x.625 Rd Hd Sq Nk
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 052987

Baffle, Mulching
(Superseded to 08854200)

$

$

Not available
