5300250 - Simplicity Blower Mount for 61" Non iCD Mower 44" Mower Deck - Clutch & Support Group (983858) Parts Diagram

Blower Mount for 61" Non iCD Mower

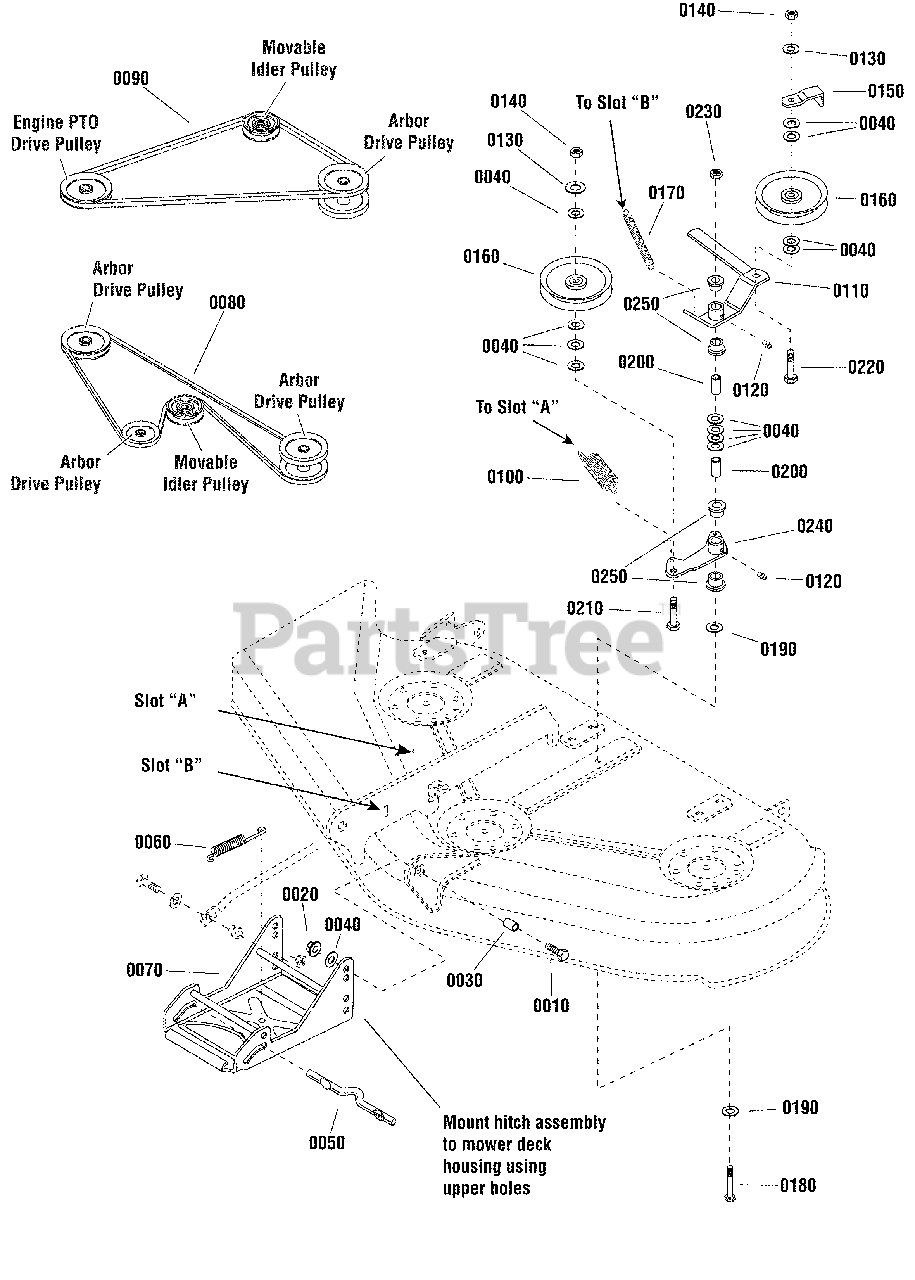

44" Mower Deck - Clutch & Support Group (983858) Parts Diagram

  • Title

0010

Simplicity 1921968

CAPSCREW, Hex Head, 3/8-16 x 1-3/8
(Superseded to 1921968SM)

$4.49

$

In Stock, only 3 left!

0

0020

Simplicity 2860681

NUT, Hex Toplock Spiralock Flange, 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 11

0

0030

Simplicity 2157081

SPACER, 3/8 x 3/4 x 1/2
(Superseded to 2157081SM)

$8.99

$

In Stock, Qty 6

0

0040

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0050

Simplicity 1715759

ROD, Latch
(Superseded to 1715759SM)

$7.99

$

In Stock, Qty 14

0

0060

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

0070

Simplicity 1707432A

HITCH ASSEMBLY
(Superseded to 1707432ASM)

$

$

Not available

0080

Simplicity 1721532

V-BELT, Arbor Drive
(Superseded to 1721532SM)

$58.99

$

In Stock, Qty 20+

0

0090

Simplicity 1601672

V-BELT, Mower Drive
(Superseded to 1601672SM)

$32.99

$

In Stock, Qty 20+

0

0100

Simplicity 1656936

SPRING
(Superseded to 1656936SM)

$9.99

$

In Stock, Qty 20+

0

0110

Simplicity 1704658

LEVER ASSEMBLY, Idler
(Superseded to 1704658SM)

$48.99

$

In Stock, only 1 left!

0

0120

Simplicity 2812808

GREASE FITTING
(Superseded to 2812808SM)

$4.49

$

In Stock, Qty 20+

0

0130

Simplicity 1916965

WASHER, Lock, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

0140

Simplicity 1916950

NUT, Hex Flange, 3/8-16, MAC Lock Large, Black
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 1677135A

BELT STOP, Idler
(Superseded to 1677135ASM)

$12.99

$

In Stock, Qty 8

0

0160

Simplicity 1724387

PULLEY, Idler
(Superseded to 1724387SM)

$35.99

$

In Stock, Qty 20+

0

0170

Simplicity 1715435

SPRING
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

0180

Simplicity 1923938

CAPSCREW, Hex Head, 3/8-16 x 3-1/2
(Superseded to 703182)

$6.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1924356

WASHER, 3/8, Black
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0200

Simplicity 1674669

SPACER, 25/64 x 5/8 x 1-1/8, Case Hardened
(Superseded to 1674669SM)

$11.99

$

In Stock, Qty 20+

0

0210

Simplicity 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, only 2 left!

0

0220

Simplicity 1960315

CARRIAGE BOLT, 3/8-16 x 2
(Superseded to 1960315SM)

$6.49

$

In Stock, only 1 left!

0

0230

Simplicity 1960339

NUT, Hex, 3/8-16
(Superseded to 1922694SM)

$6.99

$

In Stock, Qty 20+

0

0240

Simplicity 1718561

LEVER ASSEMBLY, Idler Arm
(Superseded to 1718561SM)

$50.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1676148

BUSHING, 5/8 x 3/4
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 20+

0
