53002 (53005) - Toro Straight Shaft Trimmer (SN: 089005001 - 089009999) (1998) CARBURETOR AND FUEL ASSEMBLY Parts Diagram

Straight Shaft Trimmer

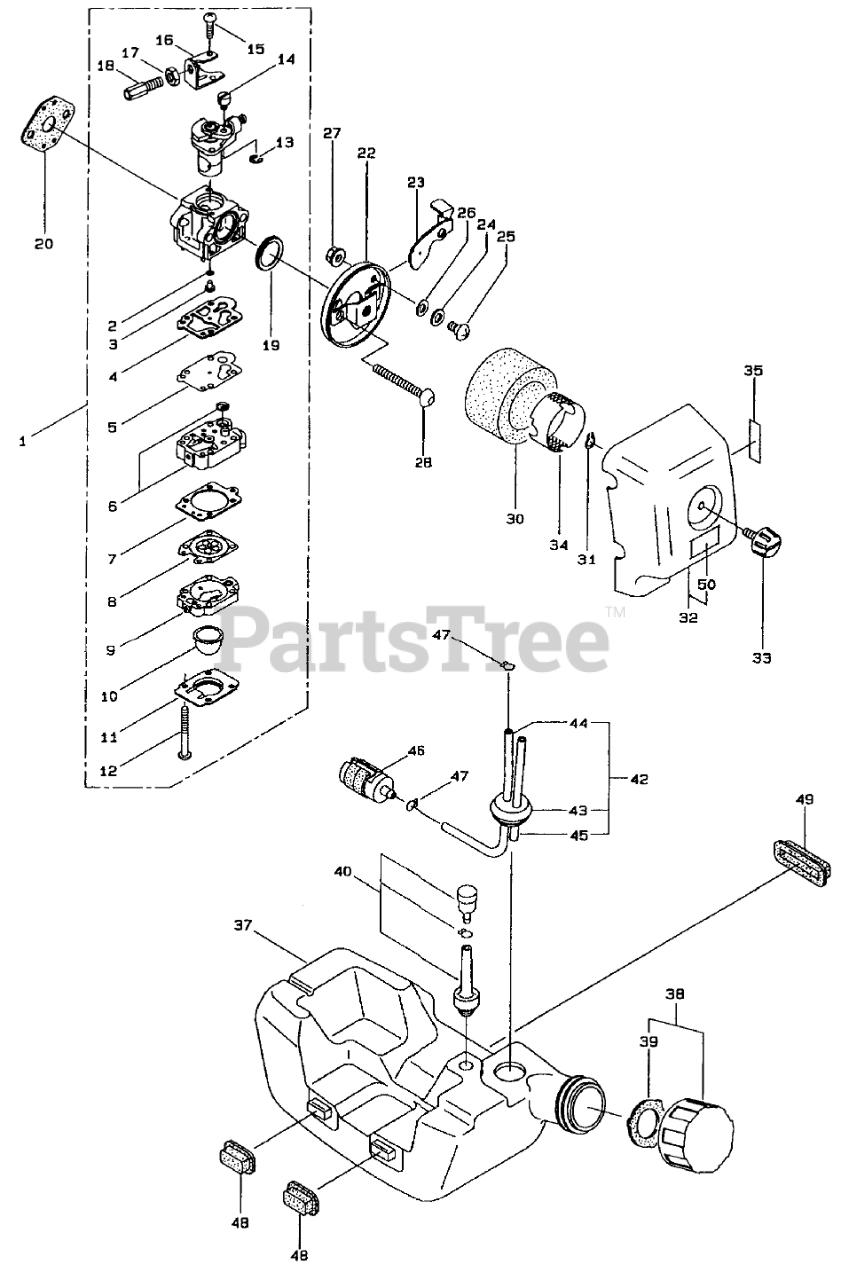

CARBURETOR AND FUEL ASSEMBLY Parts Diagram

  • Title
1

Toro M266153

Carburetor Assembly (Incl. Ref. # 2-19)

$

$

Not available

2

Toro M261871

O-RING

$

$

Not available

3

Toro M262120

JET - MAIN

$

$

Not available

4

Toro M262995

GASKET (NC)

$

$

Not available

5

Toro M262994

PUMP - DIAPHRAGM (NC)

$

$

Not available

6

Toro M263739

PUMP - BODY

$

$

Not available

7

Toro M262993

GASKET (NC)

$

$

Not available

8

Toro M261873

ASM - DIAPHRAGM

$

$

Not available

9

Toro M262991

PURGE - BODY (NC)

$

$

Not available

10

Toro M261874

PRIMER

$23.99

$

In Stock, only 1 left!

0

11

Toro M262992

PLATE - COVER (NC)

$

$

Not available

12

Toro M262996

SCREW (NC)

$

$

Not available

13

Toro M261876

E-RING

$

$

Not available

14

Toro M261658

SWIVEL

$

$

Not available

15

Toro M261875

Screw
(Superseded to M260607)

$

$

Not available

16

Toro M264677

BRACKET

$40.99

$

Usually ships in 3-6 days

0

17

$

$

Not available

18

Toro M263994

ADJUSTER

$

$

Not available

19

Toro M261657

PACKING

$

$

Not available

20

Toro M261864

GASKET

$5.49

$

Usually ships in 3-6 days

0

22

Toro M261594

BRACKET

$

$

Not available

23

Toro M266330

VALVE - CHOKE

$

$

Not available

24

Toro M263097

PACKING

$

$

Not available

25

$

$

Not available

26

Toro M263984

WASHER

$

$

Not available

27

$

$

Not available

28

$

$

Not available

30

Toro M261598

ELEMENT

$11.99

$

In Stock, only 1 left!

0

31

$2.49

$

In Stock, only 1 left!

0

32

Toro M266493

COVER - AIR FILTER

$

$

Not available

33

$

$

Not available

34

Toro M261993

SCREEN

$

$

Not available

35

Toro M261352

LABEL

$

$

Not available

37

Toro M266071

TANK - FUEL

$108.99

$

Usually ships in 3-6 days

0

38

Toro M264784

Fuel Tank Cap Assembly (Incl. Ref. # 39)

$

$

Not available

39

Toro M261105

PACKING

$4.49

$

Usually ships in 3-6 days

0

40

Toro M261696

ASM - BREATHER

$

$

Not available

42

Toro M264031

Fuel Pipe Assembly (Incl. Ref. # 43-45)
(Superseded to 99-5272)

$34.99

$

Usually ships in 3-6 days

0

43

Toro M261115

GROMMET

$15.99

$

Usually ships in 3-6 days

0

44

Toro M261690

PIPE - FUEL

$16.99

$

Usually ships in 3-6 days

0

45

Toro M263038

PIPE - RETURN

$2.99

$

Usually ships in 3-6 days

0

46

Toro M261797

ASM - FUEL FILTER

$

$

Not available

47

$

$

Not available

48

$

$

Not available

49

$

$

Not available

50

Toro M266291

DECAL - WARNING

$

$

Not available
