53002 (53005) - Toro Straight Shaft Trimmer (SN: 079000001 - 079999999) (1997) HEAD, SHAFT AND SHIELD ASSEMBLY Parts Diagram

Straight Shaft Trimmer

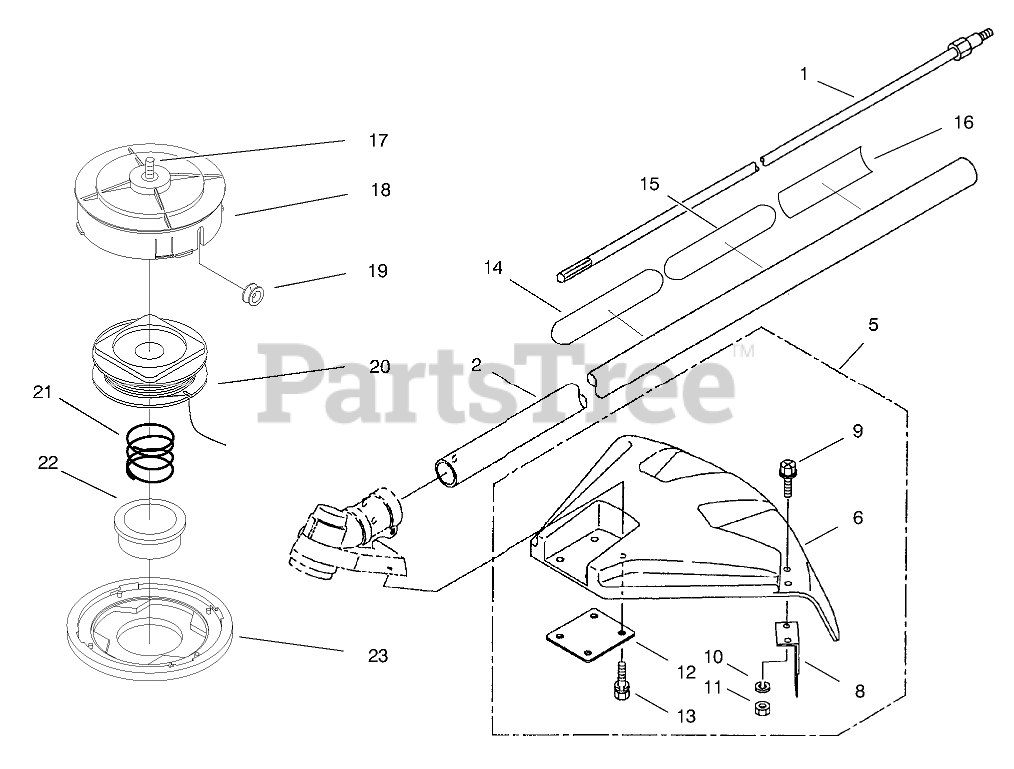

HEAD, SHAFT AND SHIELD ASSEMBLY Parts Diagram

  • Title

1

Toro M219268

ASM - DRIVESHAFT

$129.99

$

Usually ships in 3-6 days

0

2

Toro M221753

Driveshaft Tube Assembly (Incl. Ref. #14,15)

$

$

Not available

5

Toro M221436

Safety Cover Assembly (Incl. Ref. #6-13)

$

$

Not available

6

Toro M221403

COVER - SATETY

$89.99

$

Usually ships in 3-6 days

0

8

Toro M221438

CUTTER - STRING

$

$

Not available

9

Toro M092560

BOLT

$

$

Not available

10

Toro M012501

WASHER - SPRING

$

$

Not available

11

Toro M081027

NUT M5

$2.49

$

Usually ships in 3-6 days

0

12

Toro M221469

PLATE

$

$

Not available

13

Toro M092579

BOLT

$

$

Not available

14

Toro M221502

DECAL - CAUTION

$

$

Not available

15

Toro M221501

DECAL - CAUTION

$

$

Not available

16

Toro M221500

DECAL - TORO

$

$

Not available

17

Toro 95-7468

BOLT

$

$

Not available

18

Toro 95-7460

HOUSING

$

$

Not available

19

Toro 95-7450

EYELET

$2.99

$

In Stock, Qty 7

0

20

Toro 95-7464

SPOOL W/LINE

$

$

Not available

Toro 95-7461

SPOOL

Note: Not illustrated

$

$

Not available

21

Toro 95-7467

SPRING

$

$

Not available

22

Toro 95-7462

BUTTON

$12.99

$

In Stock, only 1 left!

0

23

Toro 95-7463

COVER

$

$

Not available

Toro 95-4425

5" Head Assembly (Incl. Ref. #17-23)

Note: Not illustrated

$129.99

$

Usually ships in 3-6 days

0

Toro M221437

String Cutter Assembly (Incl. Ref. #8-11)

Note: Not illustrated

$

$

Not available
