530 SWE (31AH5SLH710) - Cub Cadet 30" Snow Thrower (2005-2) Engine Carburetor Parts Diagram

30" Snow Thrower

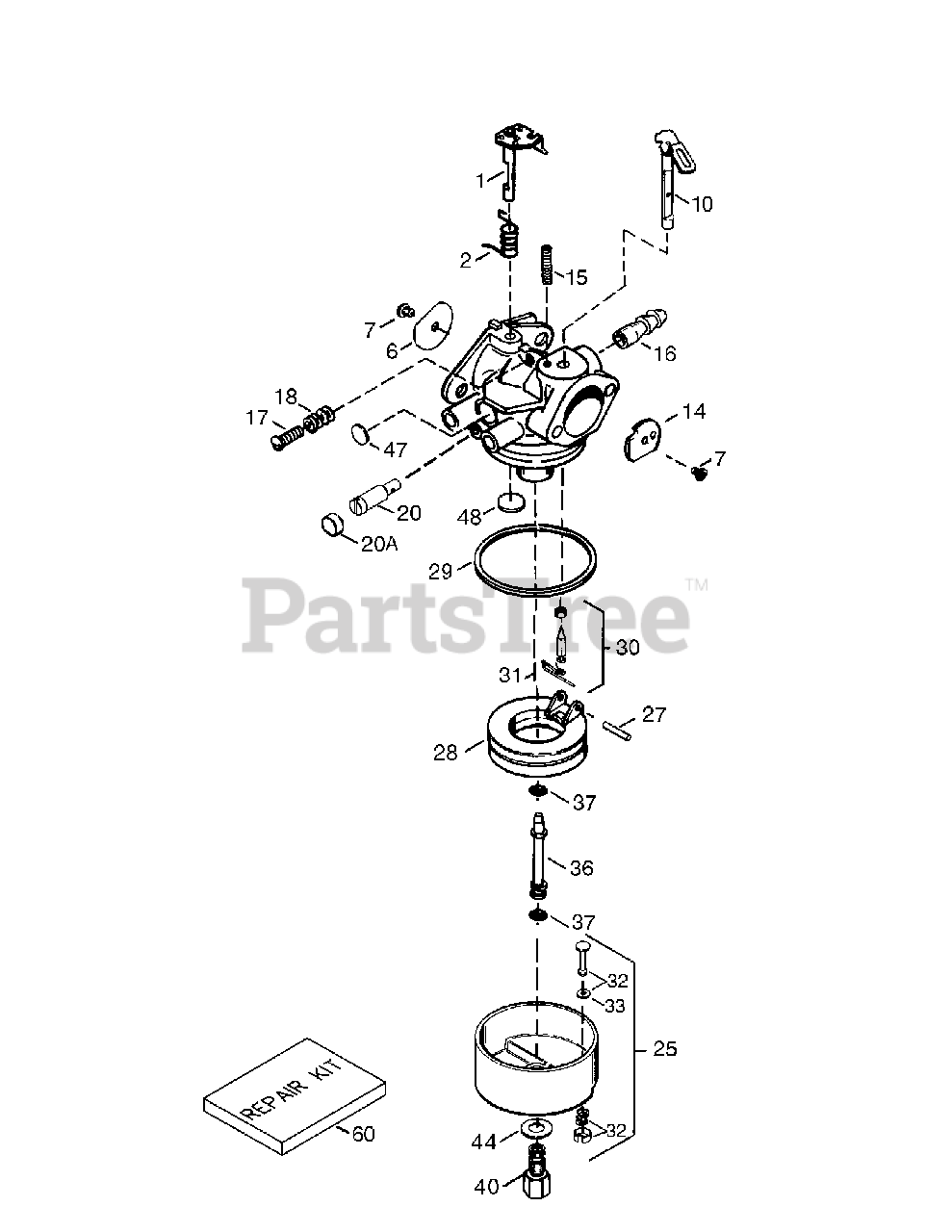

Engine Carburetor Parts Diagram

  • Title
1

Cub Cadet TC-631776A

Throttle Shaft & Lever Assy.

$16.99

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631970

Throttle Return Spring

$4.49

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-640109

Throttle Shutter

$13.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-650506

*Shutter Screw

$1.49

$

In Stock, Qty 14

0

10

Cub Cadet TC-632112

Choke Shaft & Lever Assy.

$7.49

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-632174

Choke Shutter

$4.49

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-651025

Idle Speed Screw

$1.99

$

In Stock, only 4 left!

0

18

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 4 left!

0

20

Cub Cadet TC-640027

Idle Resrictor Scew

$3.99

$

In Stock, only 1 left!

0

20A

Cub Cadet TC-640200

Idle Resrictor Scew Cap

$1.99

$

In Stock, Qty 5

0

25

Cub Cadet TC-631951

Float Bowl Assy.

$17.99

$

In Stock, only 2 left!

0

27

Cub Cadet TC-631024

*Float Shaft

$1.99

$

In Stock, Qty 10

0

28

Cub Cadet TC-632802

Float
(Superseded to TC-632816)

$8.49

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-631028

*Float Bowl O-Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 18

0

30

Cub Cadet TC-631021A

*Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

32

Cub Cadet TC-27136A

Bowl Drain Assy.

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet TC-27554

*Plunger Drain Gasket

$1.49

$

In Stock, Qty 15

0

36

Cub Cadet TC-640113

Main Nozzle Tube

$6.99

$

Usually ships in 3-12 days

0

37

Cub Cadet TC-632547

*Main Nozzle Tube O-Ring

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet TC-640128

High Speed Bowl Nut

$7.49

$

Usually ships in 3-12 days

0

44

Cub Cadet TC-27110A

Bowl Nut Washer

$2.49

$

In Stock, only 3 left!

0

47

Cub Cadet TC-630748

*Welch Plug

$1.99

$

In Stock, only 1 left!

0

48

Cub Cadet TC-631027

*Welch Plug

$1.99

$

In Stock, only 4 left!

0

60

Cub Cadet TC-632760B

Repair Kit (Includes Items *)

$27.99

$

In Stock, Qty 6
