530 RS (954140072-C) - Husqvarna Walk-Behind Mower (1999-06) Wheels And Transmission Parts Diagram

Walk-Behind Mower

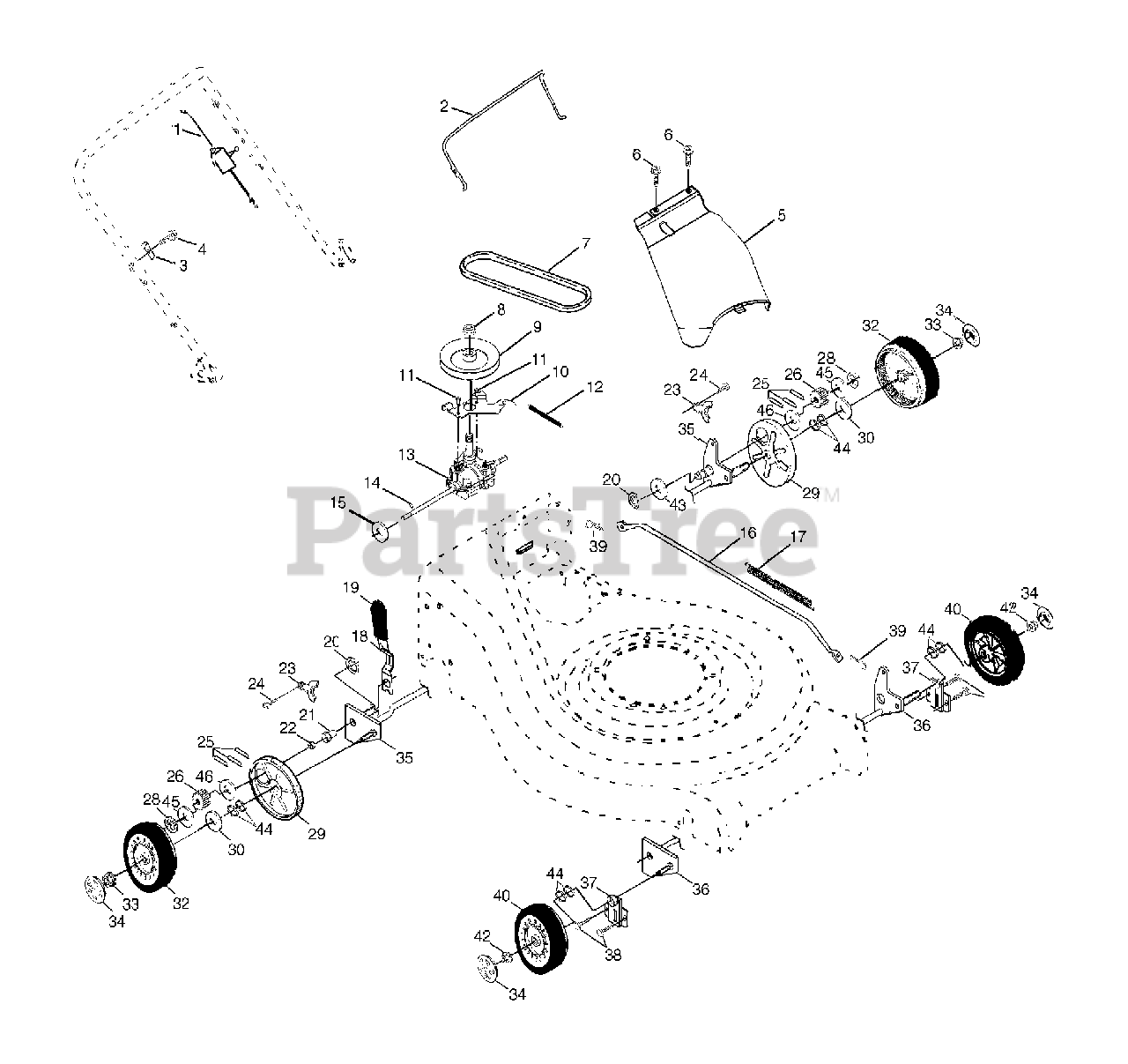

Wheels And Transmission Parts Diagram

  • Title

1

Husqvarna 532161587

Cable Drive

$

$

Not available

2

Husqvarna 532161473

Bail Control Drive

$20.99

$

In Stock, only 3 left!

0

3

Husqvarna 532164557

Bracket, Downstop
(Superseded to 532161478)

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532083816

Screw Hex Wash Head Tapping 10-2

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532161537

Cover Drive
(Superseded to 532400783)

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532750634

Screw Thdrol 10-25 x .50

$6.49

$

In Stock, Qty 5

0

7

Husqvarna 532160816

V-Belt

$27.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532132010

Nut Lock Flanged 3/8-16 Zinc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532163939

Pulley Driven

$20.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532164553

Belt Keeper

$

$

Not available

11

Husqvarna 817541011

Screw Hex Wash Head 10-24 X .668

$

$

Not available

12

Husqvarna 532075192

Spring

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532169611

Transmission Asm.
(Superseded to 532188295)

$121.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532145354

Pin Spring Thrust

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532057079

Washer Hardened

$6.49

$

In Stock, Qty 10

0

16

Husqvarna 532161584

Rod Connecting
(Superseded to 532414284)

$40.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532161602

Spring Extension
(Superseded to 532409616)

$7.49

$

In Stock, only 2 left!

0

18

Husqvarna 532164554

Spring Selector
(Superseded to 532160477)

$

$

Not available

19

Husqvarna 532161961

Knob Selector Spring
(Superseded to 532189808)

$

$

Not available

20

Husqvarna 812000022

E-Ring 7/8

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532163365

Bearing Support
(Superseded to 532169920)

$

$

Not available

22

Husqvarna 532169911

Bearing Ball

$

$

Not available

23

Husqvarna 532164555

Retainer Drive Asm. Stmp.
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

24

Husqvarna 532057808

Screw Hex Head Tapping 1/4-20 x .75

$

$

Not available

25

Husqvarna 532166453

Drive Pawl
(Superseded to 532170011)

$

$

Not available

26

Husqvarna 532166450

Pinion, Drive RH

$9.99

$

In Stock, only 1 left!

0

28

Husqvarna 812000058

E-Ring 7/16

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532088080

Cover, Dust Wheel
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

30

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

32

Husqvarna 532155171

Wheel 9 x 2
(Superseded to 532193139)

$66.99

$

In Stock, Qty 5

0

33

Husqvarna 532083923

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532157008

Hubcap

$

$

Not available

35

Husqvarna 532164552

Shaft Asm. Rear
(Superseded to 532160785)

$36.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532164550

Shaft Asm. Front
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532161463

Retainer Front Shaft

$

$

Not available

38

Husqvarna 532163409

Screw 12 x 5/8

$7.49

$

In Stock, Qty 8

0

39

Husqvarna 532700279

Clip Retainer

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532750550

Wheel 8 x 2

$34.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532083923

Nut, Hex Flange Lock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 819572216

Washer

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532057143

Wave Washer
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

45

Husqvarna 532052160

Washer

$

$

Not available

46

Husqvarna 532062335

Washer

$9.99

$

Usually ships in 3-10 days

0
