52840 - Gravely 50" Fab Deck for Pro-Master 300 Mower MOWER FRAME Parts Diagram

50" Fab Deck for Pro-Master 300 Mower

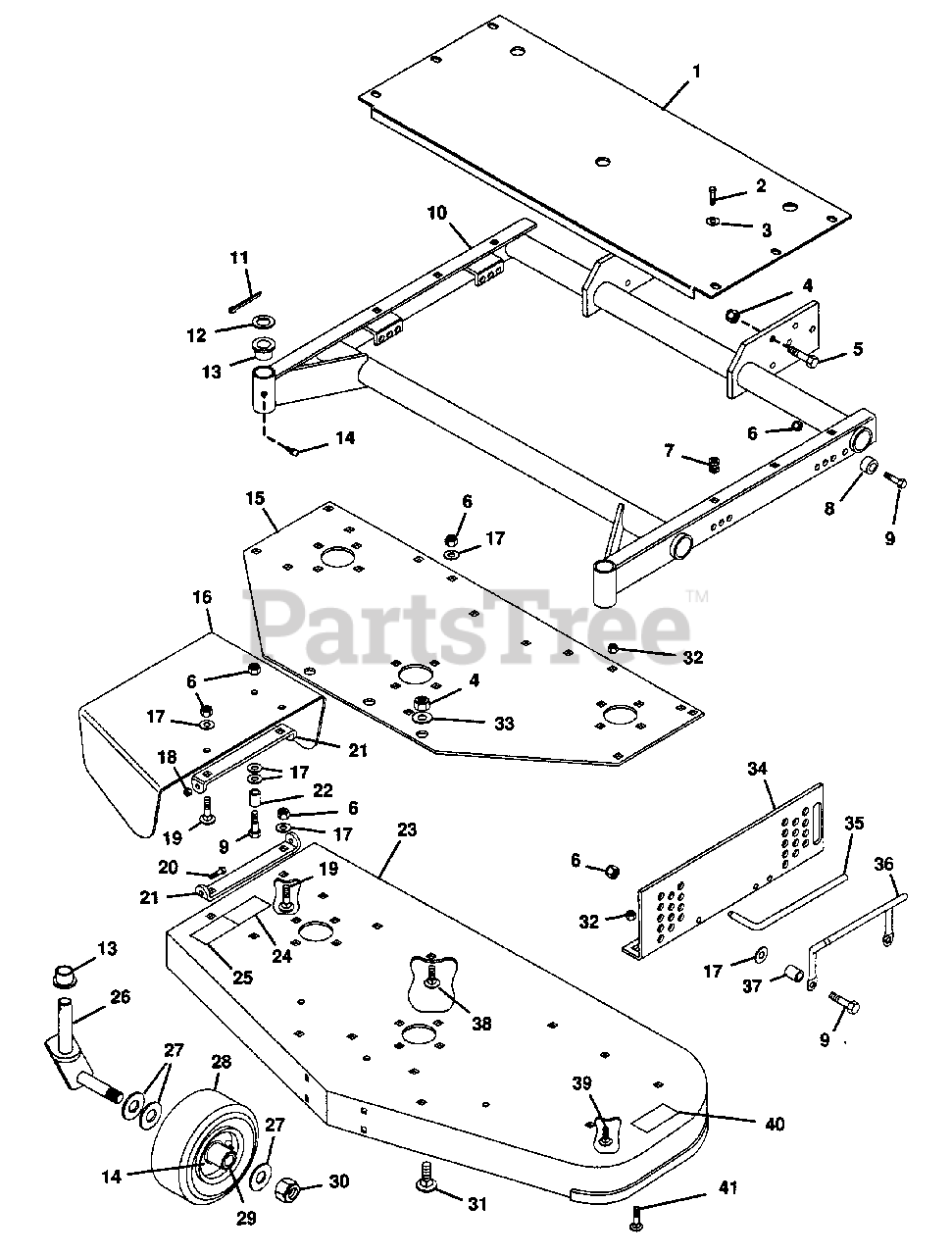

MOWER FRAME Parts Diagram

  • Title
1

Gravely 047555

Guard, 50" PMH Series
(Superseded to 08960400)

$98.99

$

Usually ships in 4-12 days

0

2

Gravely 045207

Screw, 1/4-20x.50 Self Tapping
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 180177

Bolt, Hex 1/2-13x1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 050396

Bush., St. .391x.621x.676 Stl.
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

10

Gravely 047487

Weldment, Mower Frame
(Superseded to 59002600)

$

$

Not available

11

Gravely 103409

Pin, Cotter .187x1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

12

Gravely 019340

Race, Bearing Thrust
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 018355

Bush., Flg. 1.03x1.75x.750 Ny.
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

14

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

15

Gravely 052760

Plate, Support
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

16

Gravely 052805

Shield, Safety Ext. 50" Mower
(Superseded to 08850600)

$

$

Not available

17

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 120915

Bolt, 3/8-16x1.00 Rd Hd Sq Nk

$

$

Not available

20

Gravely 180021

Bolt, Hex 1/4-20x.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 045641

Bracket, Chute
(Superseded to 08827653)

$

$

Not available

22

Gravely 038696

Stop, Chute
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

23

Gravely 052750

Weldment, 50" Mower Fabricated
(Superseded to 08849100)

$

$

Not available

24

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

25

Gravely 033928

Decal, Warning Eye
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

26

Gravely 044680

Weldment, Caster Fork
(Superseded to 08954653)

$221.99

$

Usually ships in 4-12 days

0

27

Gravely 131017

Washer, Flat .812x1.496x.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 045205

Wheel, Gauge
(Superseded to 07130100)

$108.99

$

In Stock, only 4 left!

0

29

Gravely 037823

Bearing, Gauge Wheel
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

30

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

31

Gravely 126475

Bolt, 1/2-13x1.00 Rd Hd Sq Nk
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

32

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

34

Gravely 044481

Bracket, Mower Side Support L.H.
(Superseded to 08950500)

$

$

Not available

34

Gravely 044480

Bracket, Mower Side Support R.H.
(Superseded to 08950400)

$

$

Not available

35

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

36

Gravely 044507

Handle
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

37

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

38

Gravely 126227

Bolt, Carriage 3/8-16x.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

39

Gravely 126211

Bolt, 5/16-18x.625 Rd Hd Sq Nk
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

40

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available

41

Gravely 126358

Bolt, Carriage 5/16-18x1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

Gravely 043003

Decal, Gravely Logo
(Superseded to 05210700)

$

$

Not available

Gravely 049720

Decal, Width of Cut
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0
