52820 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) TRANSAXLE ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

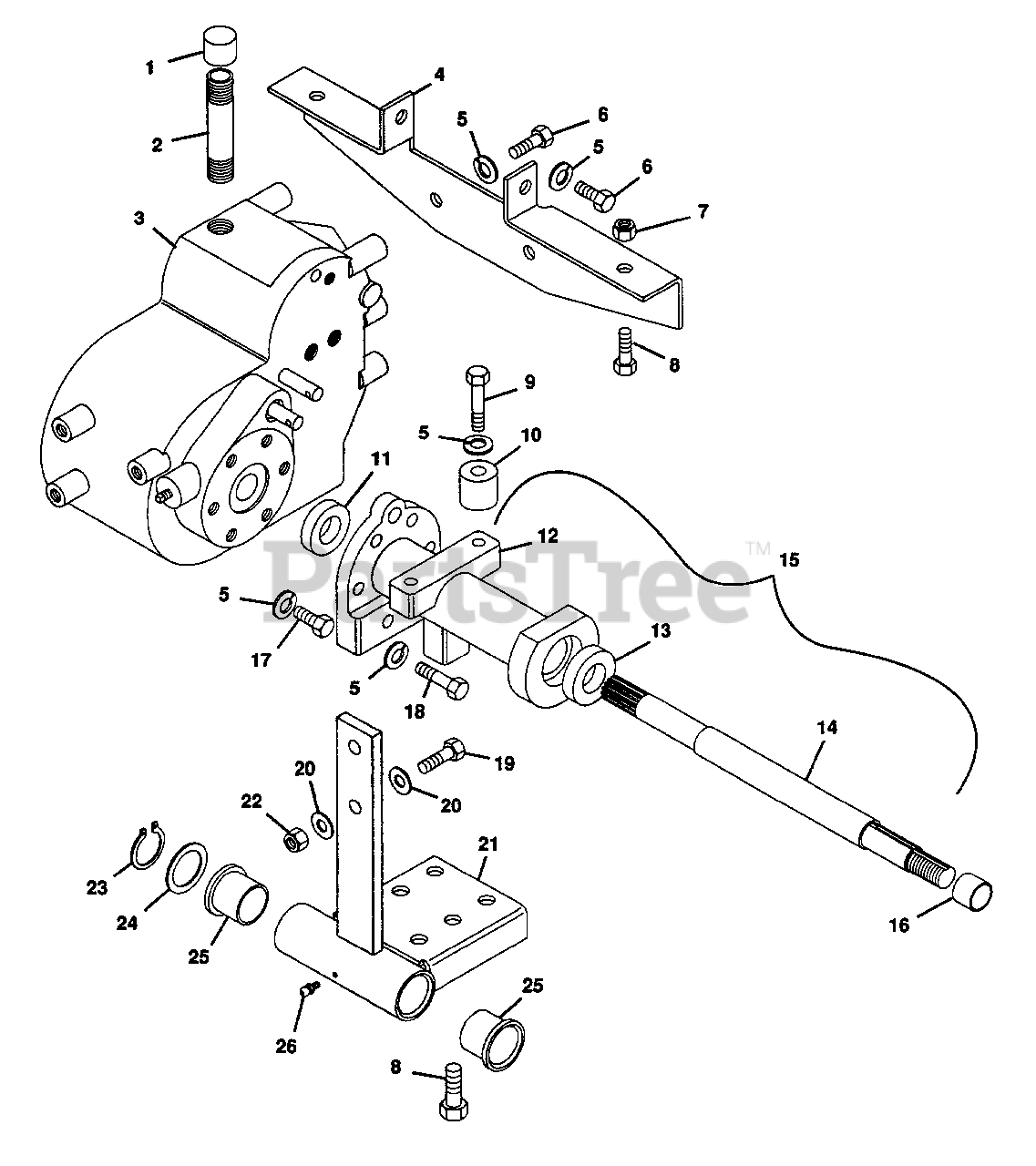

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Gravely 119102

Cap, Pipe 3/4 NPT Plain
(Superseded to 07024100)

$

$

Not available

2

Gravely 190725

Nipple, Pipe 3/4 NPT x 5 Plain
(Superseded to 07025100)

$

$

Not available

3

Gravely 044567

Transaxle
(Superseded to 09026400)

$

$

Not available

3

Gravely 051731

Transaxle(Differential Lock)
(Superseded to 09026400)

Note: (Differential Lock)

$

$

Not available

4

Gravely 044923

Plate, Transaxle
(Superseded to 08959000)

$

$

Not available

5

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

6

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

7

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 271547

Bolt, Hex 5/8-11x1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

9

Gravely 180188

Bolt, Hex 1/2-13x2.75
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 044499

Spacer, Frame
(Superseded to 08951100)

$

$

Not available

11

Gravely 044569

Ring, Alignment
(Superseded to 09028700)

$14.99

$

In Stock, only 2 left!

0

12

Gravely 045519

Housing, Axle
(Superseded to 20818200)

$

$

Not available

13

Gravely 013464

Bearing, Ball 1.181x2.440x.629
(Superseded to 05421200)

$38.99

$

In Stock, only 1 left!

0

14

Gravely 045520

Axle
(Superseded to 21512900)

$

$

Not available

15

Gravely 044585

Assembly, Axle Housing
(Superseded to 58902900)

$

$

Not available

16

Gravely 044365

Bush., St. 1.19x1.38x.800 Stl.
(Superseded to 08948800)

$18.99

$

Usually ships in 4-12 days

0

17

Gravely 180177

Bolt, Hex 1/2-13x1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

18

Gravely 180183

Bolt, Hex 1/2-13x2.25
(Superseded to 05901835)

$3.49

$

In Stock, Qty 5

0

19

Gravely 180179

Bolt, Hex 1/2-13x1.75
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 044931

Weldment, Pivot Bracket
(Superseded to 08959200)

$

$

Not available

22

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 046333

Ring, Retaining
(Superseded to 05715500)

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 018954

Bearing, Thrust Race
(Superseded to 06432200)

$13.99

$

In Stock, only 1 left!

0

25

Gravely 046781

Bearing, Flanged Nylon
(Superseded to 05517600)

$9.49

$

In Stock, only 4 left!

0

26

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available
