528 SWE (31AH5LTT756) - Cub Cadet 28" Snow Thrower (2006) Electric Starter Assembly Parts Diagram

28" Snow Thrower

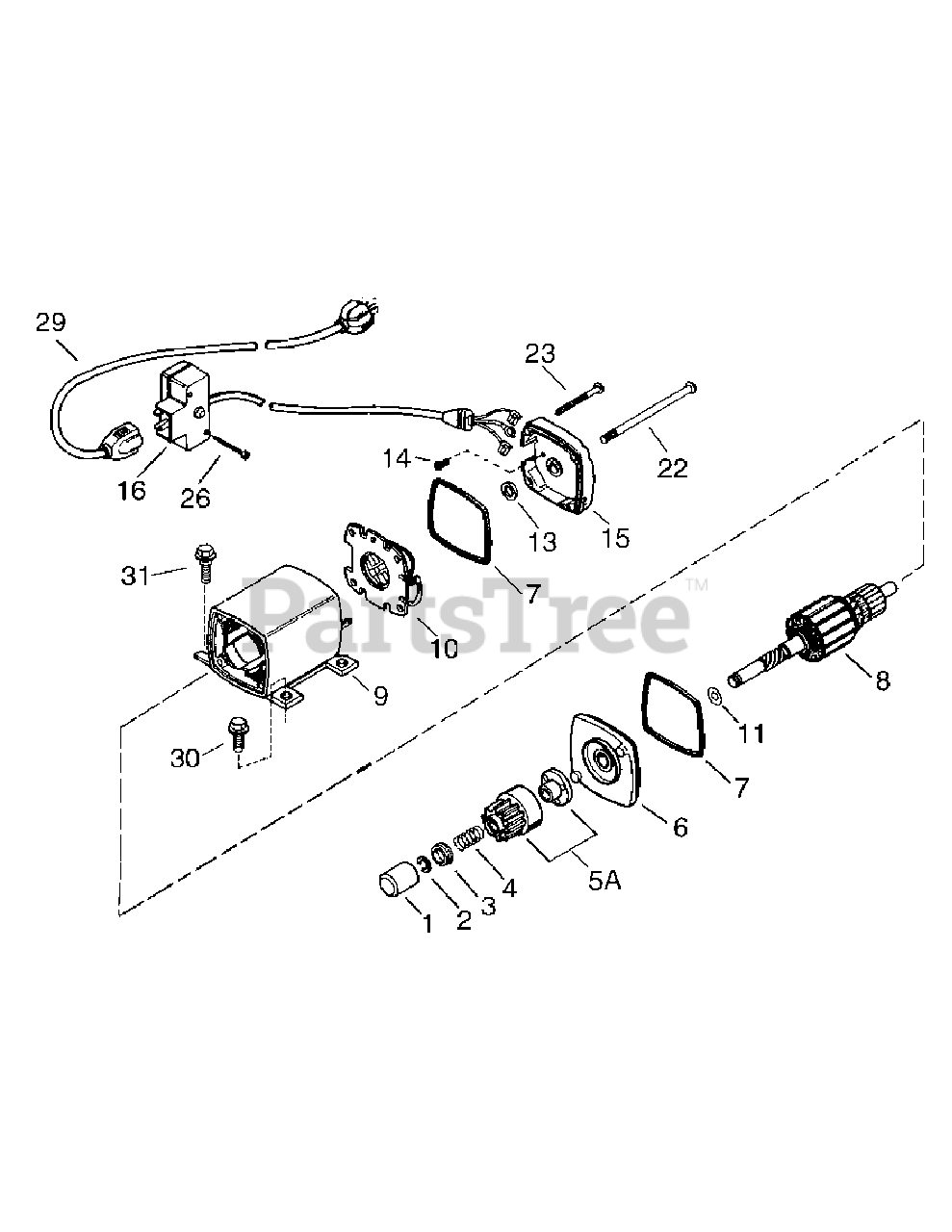

Electric Starter Assembly Parts Diagram

  • Title

Cub Cadet TC-33329E

Electric Starter (110 Volt)
(Superseded to TC-33329H)

$

$

Not available

1

Cub Cadet TC-33451

Dust Cover

$3.49

$

In Stock, Qty 5

0

2

Cub Cadet TC-33842

Retainer Ring

$3.99

$

In Stock, Qty 5

0

3

Cub Cadet TC-33430

Spring Retainer

$7.99

$

In Stock, only 1 left!

0

4

Cub Cadet TC-33431

Anti-drift Spring

$3.99

$

Usually ships in 3-12 days

0

5A

Cub Cadet TC-37050

Gear & Nut (Incl. 2)
(Superseded to TC-37052A)

$47.99

$

In Stock, only 3 left!

0

6

Cub Cadet TC-35449

Drive End Cap Ass'y (Incl. 7)

$36.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-35450

O Ring

$3.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-35915

Armature

$

$

Not available

9

Cub Cadet TC-35451B

Housing Ass'y.

$

$

Not available

10

Cub Cadet TC-35452A

Brush Card Ass'y.

$58.99

$

In Stock, only 1 left!

0

11

Cub Cadet TC-35911

Thrust Washer

$5.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-590500

Thrust Washer

$1.99

$

In Stock, only 1 left!

0

14

Cub Cadet TC-33441

Ground Screw

$

$

Not available

15

Cub Cadet TC-35453

Commutator End Cap Ass'y. (Incl. 7)

$41.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-35454

Switch Box Ass'y.

$

$

Not available

22

Cub Cadet TC-35455

Case Bolt

$

$

Not available

23

Cub Cadet TC-35456

Ground Screw

$1.99

$

In Stock, only 3 left!

0

26

Cub Cadet TC-650819

Screw, 6-32 x 2-1/2"

$1.99

$

Usually ships in 3-12 days

0

26

Cub Cadet TC-651032

Screw, 12-16 x 5/8"

$1.99

$

In Stock, only 1 left!

0

29

Cub Cadet TC-32450B

Extension Cord (10' 6")
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

30

Cub Cadet TC-30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

31

Cub Cadet TC-650820

Screw, 1/4-20 x 1/2"

$3.99

$

In Stock, Qty 15

0
