528 SWE (31AH5LKG710) - Cub Cadet 28" Snow Thrower (2005-2) Handle Assembly Parts Diagram

28" Snow Thrower

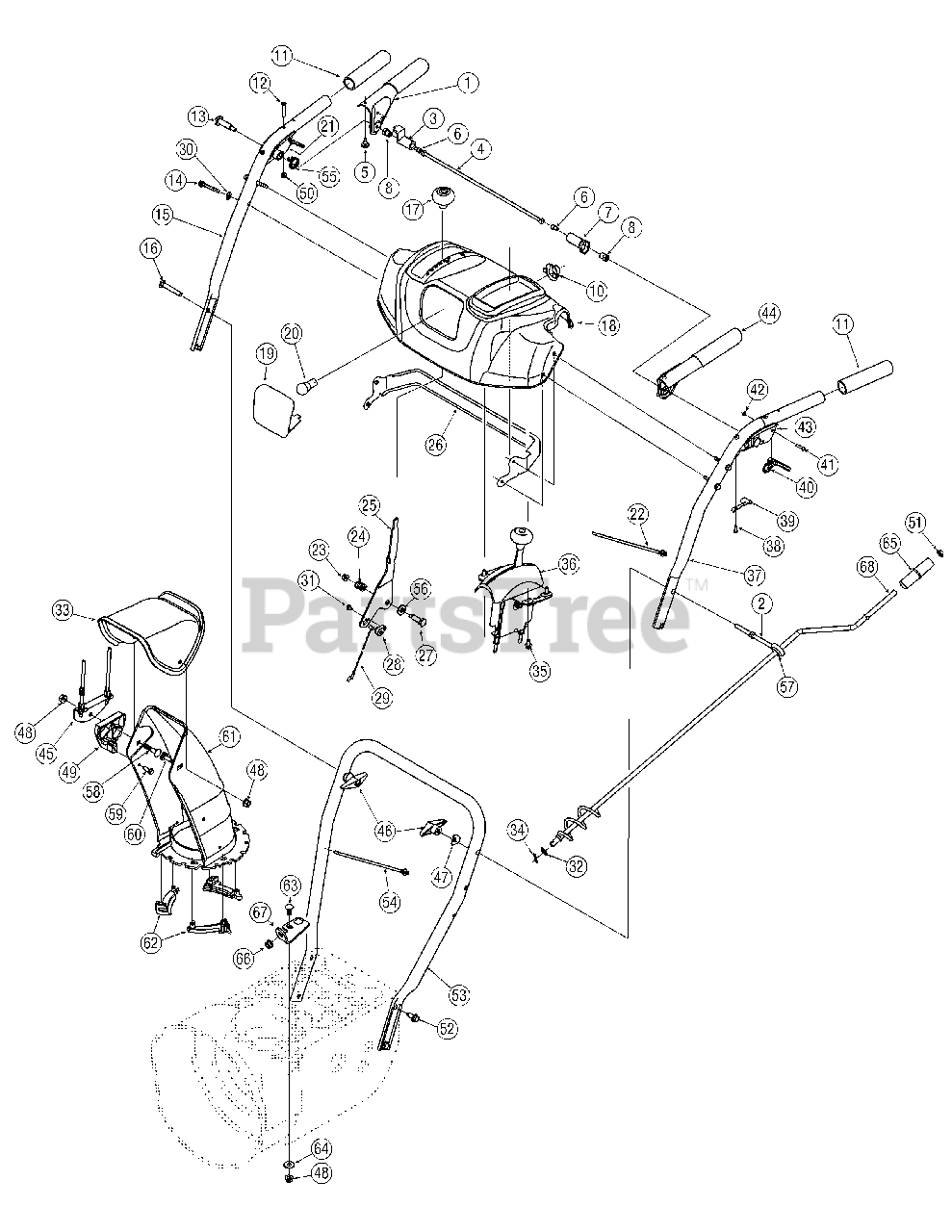

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 684-04106A

Handle Engagement Assembly RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

2

Cub Cadet 747-04263

Eye Bolt

$9.49

$

In Stock, only 2 left!

0

3

Cub Cadet 731-04894A

Lock Plate
(Superseded to 731-04894D)

$5.49

$

In Stock, only 1 left!

0

4

Cub Cadet 711-04287

Pivot Rod
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

5

Cub Cadet 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-04354

Screw, 1/4-20 x.375

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet 731-04896A

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 9

0

9

Cub Cadet 725-04216A

Wire Harness (Not Shown)
(Superseded to 725-04216B)

$75.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 725-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

11

Cub Cadet 720-0274

Handle Grip

$11.99

$

In Stock, only 2 left!

0

12

Cub Cadet 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

13

Cub Cadet 738-04122

Shoulder Screw, 1/4-20 x 1.345
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1026

Screw, 1/4-20 x 1.750

$6.99

$

In Stock, Qty 13

0

15

Cub Cadet 749-04190

Upper Handle RH
(Superseded to 749-04190A)

Variations

Cub Cadet 749-04190-0637

Right Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04190-0638

Right Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0449

Carriage Screw, 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

18

Cub Cadet 631-04183

Handle Panel (Includes Ref. #19)
(Superseded to 931-04183)

$108.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-05320

Lens

$12.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 725-04213

Lamp
(Superseded to 925-04213)

$4.99

$

In Stock, only 1 left!

0

21

Cub Cadet 731-04784A

Handle Clutch Lock - RH
(Superseded to 631-04134B)

$15.99

$

In Stock, only 1 left!

0

22

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

23

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

25

Cub Cadet 790-00203

Shift Lever
(Superseded to 790-00203-0637)

Variations

Cub Cadet 790-00203-0637

Shift Lever - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 790-00140

Panel Bracket
(Superseded to 790-00140-0637)

Variations

Cub Cadet 790-00140-0637

BRACKET-PANEL - POWDER BLACK

$

$

Not available

$

$

27

Cub Cadet 738-04125

Shoulder Screw

$4.99

$

In Stock, only 3 left!

0

28

Cub Cadet 746-0605

Cable Barrel Holder
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 5

0

29

Cub Cadet 746-04227

Speed Selector Cable
(Superseded to 746-04227A)

$22.99

$

In Stock, only 4 left!

0

30

Cub Cadet 736-0463

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 710-0224

Screw, #10-16 x .500
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

32

Cub Cadet 736-0185

Flat Washer, .375 x .738 x .063

$3.99

$

In Stock, only 2 left!

0

33

Cub Cadet 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

34

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

36

Cub Cadet 684-04117

2-Way Chute Control™ Assembly
(Superseded to 984-04117A)

$138.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 749-04191

Upper Handle LH
(Superseded to 749-04191A)

Variations

Cub Cadet 749-04191-0638

Left Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04191-0637

Left Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

39

Cub Cadet 732-04219

Clutch Lock Spring
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 731-04954

Steering Control

$5.99

$

In Stock, Qty 6

0

41

Cub Cadet 738-04126

Pin, 3/16

$3.99

$

In Stock, Qty 13

0

42

Cub Cadet 716-04036

E Ring

$6.49

$

In Stock, Qty 6

0

43

Cub Cadet 731-04785

Handle Clutch Lock - LH
(Superseded to 631-04133A)

$15.99

$

In Stock, only 1 left!

0

44

Cub Cadet 684-04110A

Handle Engagement Assembly LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

45

Cub Cadet 784-5594

Cable Bracket

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

50

Cub Cadet 712-0161

Hex Lock Nut, #10-24

$4.49

$

In Stock, only 2 left!

0

51

Cub Cadet 726-0100

Push Cap

$4.49

$

In Stock, only 3 left!

0

52

Cub Cadet 710-0726

AB Screw, 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 749-04138

Lower Handle
(Superseded to 749-04138A)

Variations

Cub Cadet 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

56

Cub Cadet 736-0262

Flat Washer

$3.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 735-0234

Rubber Grommet

$5.49

$

In Stock, only 2 left!

0

58

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

59

Cub Cadet 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

60

Cub Cadet 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 15

0

61

Cub Cadet 631-04131A

Lower Chute Ass’y (Incl. Ref #62)
(Superseded to 631-04131B)

$37.99

$

In Stock, only 1 left!

0

61

Cub Cadet 731-04912A

Lower Chute Only
(Superseded to 731-04912B)

$38.99

$

In Stock, only 3 left!

0

62

Cub Cadet 731-04869

Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 710-0267

Carriage Screw, 5/16-18 x 1.00
(Superseded to 710-0262)

$3.99

$

In Stock, Qty 12

0

64

Cub Cadet 736-0159

Flat Washer, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 720-0201A

Chute Directional Control Knob

$10.99

$

In Stock, only 4 left!

0

66

Cub Cadet 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 784-5647

Chute Directional Control Bracket
(Superseded to 784-5647-0637)

Variations

Cub Cadet 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 6

0

$14.99

$

In Stock, Qty 6

0

68

Cub Cadet 684-04104

Chute Directional Control
(Superseded to 684-04104-0637)

Variations

Cub Cadet 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$62.99

$

In Stock, only 1 left!

0

$62.99

$

In Stock, only 1 left!

0
