527118 - Gravely RER and Mini-Zoom, ZT Clutch Kit Clutch Kit Parts Diagram

RER and Mini-Zoom, ZT Clutch Kit

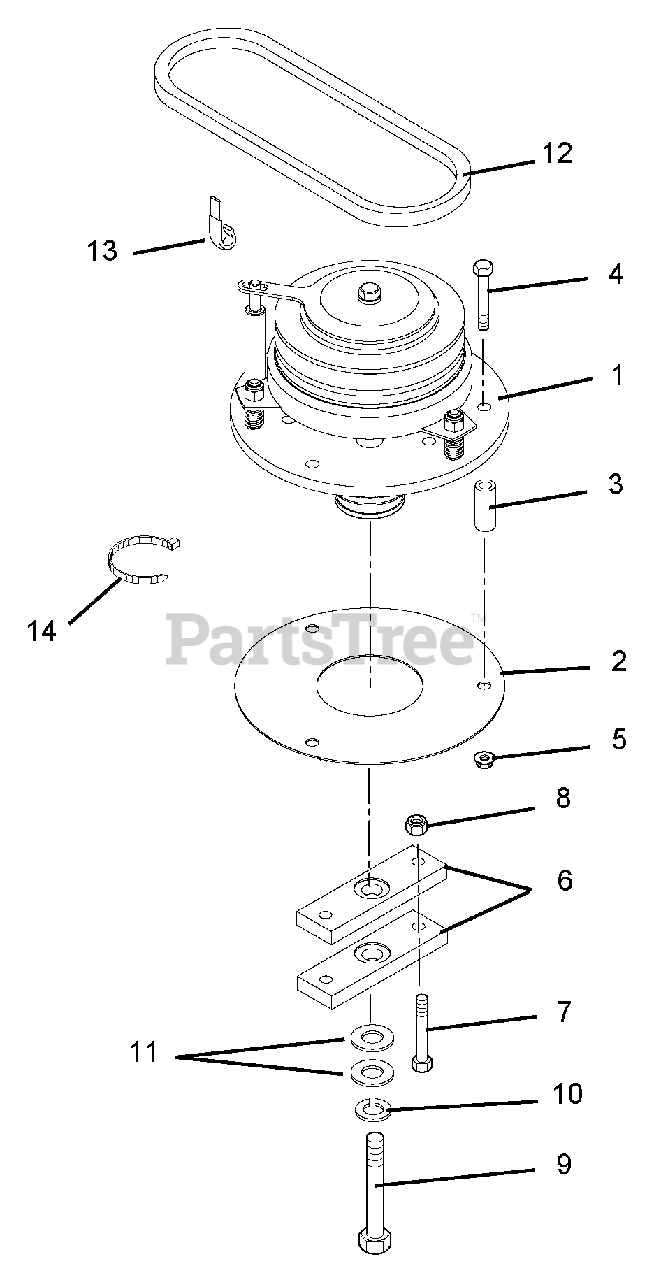

Clutch Kit Parts Diagram

  • Title

1

Gravely 62728600

Clutch/Spindle Assembly

$

$

Not available

2

Gravely 00467651

Clutch Shield

$28.99

$

In Stock, only 1 left!

0

3

Gravely 09054100

Spacer

$

$

Not available

4

Gravely 05961400

3/8" x 2-3/4" Hex Bolt
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

5

Gravely 06542000

Top Lock Flange Nut
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00467751

Mower Blade Spacer

$34.99

$

In Stock, only 3 left!

0

7

Gravely 05976600

3/8" x 2" Hex Bolt

$2.99

$

In Stock, only 4 left!

0

8

Gravely 06538800

Nylon Locknut

$1.99

$

In Stock, only 4 left!

0

9

Gravely 05900024

5/8" x 2-1/2" Hex Bolt

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 06309500

Lock Washer

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06442800

Flat Washer
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 07221000

PTO Belt Kit 52711800

$33.99

$

Usually ships in 4-12 days

0

13

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 8

0

14

Gravely 07517300

Cable Tie

$

$

Not available

Gravely 52711800

Clutch Kit

$

$

Not available
