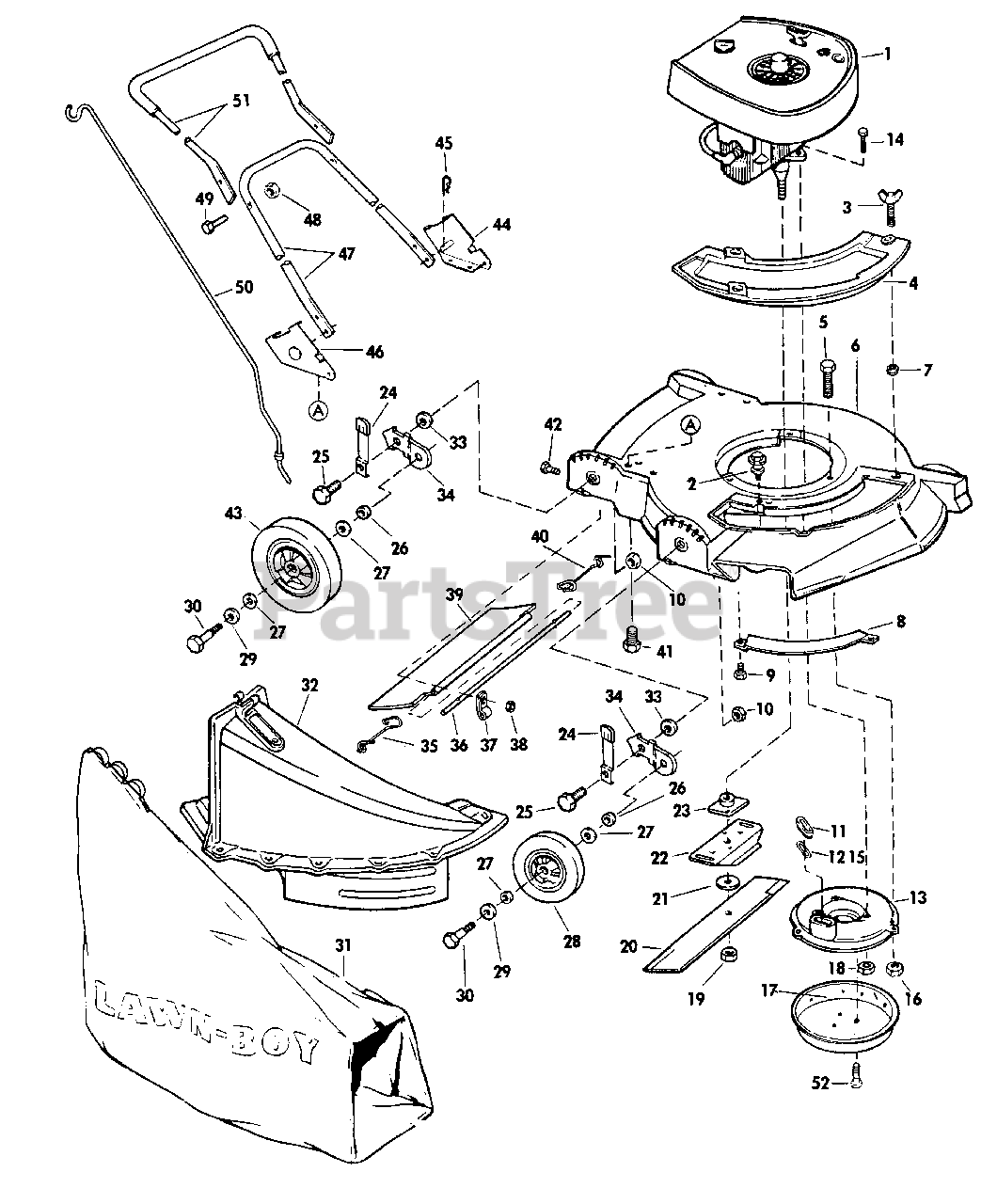

5269 G - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1979) MODEL 7260G 21" MOWER WITH GRASSCATCHER-PUSH MODEL 5239G 19" MOWER-PUSH, MODEL 7221G 21" MOWER-PUSH MODEL 5269G 19" MOWER WITH GRA Parts Diagram

Walk-Behind Mower

MODEL 7260G 21" MOWER WITH GRASSCATCHER-PUSH MODEL 5239G 19" MOWER-PUSH, MODEL 7221G 21" MOWER-PUSH MODEL 5269G 19" MOWER WITH GRA Parts Diagram

  • Title

1

See Note #2 at bottom of this page.

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Note #2. A complete engine, part no. 68176, D-409 is available for replacement on this mower. See page 32 for a complete list of replacement parts for this engine.

$

$

Not available

2

Lawn-Boy 607809

Screw
(Superseded to 614677)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, Qty 16

0

3

Lawn-Boy 606733

Wing Screw

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

4

Lawn-Boy 607560

Cover-Chute Opening
(Superseded to 95-7052)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$36.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 607601

Screw-Muffler Plate to Housing

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 681536

Housing Assembly 19" Only
(Superseded to 684521)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 19" Models Only

$

$

Not available

6

Lawn-Boy 681537

Housing Assembly 21" Only
(Superseded to 684522)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 21" Models Only

$618.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.49

$

In Stock, Qty 13

0

8

Lawn-Boy 608159

Toe Bar

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 19" Models Only

$

$

Not available

8

Lawn-Boy 608175

Toe Bar

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 21" Models Only

$77.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

10

Lawn-Boy 603773

Nut

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 602717

Sleeve-Muffler Gasket

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 16

0

12

Lawn-Boy 604624

Gasket-Exhaust

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. Gasket Set-678071

$11.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 608812

Muffler Plate

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 603014

Screw

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 604624

Gasket-Muffler

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 608311

Nut-Nylok

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 608811

Muffler-Cover

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 608311

Nut-Muffler

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 603703

Blade-21" Only
(Superseded to 612543-03)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 21" Models Only

$33.99

$

In Stock, only 3 left!

0

21

Lawn-Boy 603409

Blade-19" Only
(Superseded to 603409-03)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 19" Models Only

$

$

Not available

21

Lawn-Boy 605058

Washer-21" Only

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 21" Models Only

$5.99

$

In Stock, Qty 12

0

22

Lawn-Boy 603541

Stiffener-Blade

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 677525

Collar & Plate Assembly

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 681229

Knob & Spring Ay.

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 608835

Bolt-Wheel Brkt. to Knob & Spring Ay.
(Superseded to 610646)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 603620

Washer

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 605255

Felt Washer

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 678636

Wheel & Tire Assembly-6"

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

29

Lawn-Boy 605256

Washer-Wheel Bolt Head

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 603441

Bolt-Shoulder, Wheel

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 679966

Bag

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 679487

Chute Assembly
(Superseded to 99-6411)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 608834

Washer-Whl. Brkt. Mtg.

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 608833

Wheel Hgt. Adj. Brkt.
(Superseded to 608833-03)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

35

Lawn-Boy 608497

Spring-R.H.

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 608160

Rod

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 19" Models Only

$

$

Not available

36

Lawn-Boy 608174

Rod

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 21" Models Only

$

$

Not available

37

Lawn-Boy 608161

Clamp

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 602315

Nut

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

39

Lawn-Boy 608162

Shield
(Superseded to 608868)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 19" Models Only

$

$

Not available

39

Lawn-Boy 608173

Shield
(Superseded to 608870)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors. 21" Models Only

$

$

Not available

40

Lawn-Boy 608498

Spring-L.H.

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 607188

Screw-Handle Bracket

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

42

Lawn-Boy 306487

Screw

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 678637

Wheel & Tire Assembly-8"
(Superseded to 131-4520)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

44

Lawn-Boy 679704

Bracket-Handle, Left

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 605803

Hairpin

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 679721

Bracket-Handle, Right

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 607296

Handle-Bottom
(Superseded to 611113)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 602315

Nut-Handle

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

49

Lawn-Boy 602480

Screw-Handle

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 607561

Bag Rod

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 678789

Handle and Grip Assembly-Top
(Superseded to 608094)

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 608813

Bolt, Muffler

Note: Note #1. Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available
