5269 F - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1976) Model 6277 Professional Mower-21" Push Parts List Parts Diagram

Walk-Behind Mower

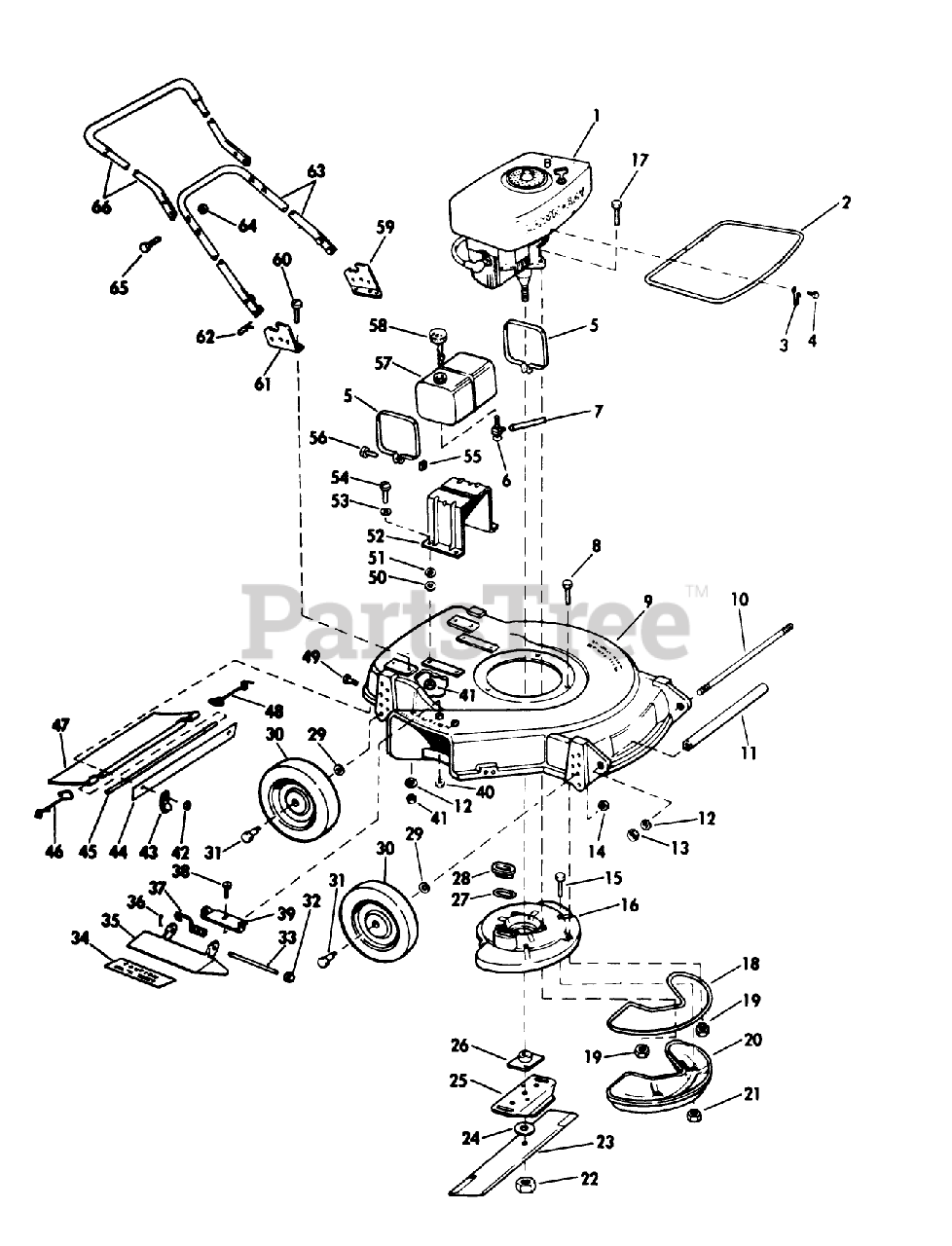

Model 6277 Professional Mower-21" Push Parts List Parts Diagram

  • Title

1

Complete engine, part no. 679423, D-476

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

1

Complete engine, part no. 679423, D-476

Note: Note Num 2: A complete engine, part no. 679423, D-476 is availab

$

$

Not available

1

Complete engine, part no. 679423, D-476

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

2

Lawn-Boy 606629

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

2

Lawn-Boy 606629

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 606630

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 606630

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

4

Lawn-Boy 606628

DISCONTINUE

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

4

Lawn-Boy 606628

DISCONTINUE

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 606631

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 606631

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

6

Lawn-Boy 677052

VALVE&SCREEN SM

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 677052

VALVE&SCREEN SM

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$23.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 606623

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 606623

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

8

Lawn-Boy 604862

SCREW

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 604862

SCREW

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

9

Lawn-Boy 679978

See Supercession: 682937
(Superseded to 682937)

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$1783.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 679978

See Supercession: 682937
(Superseded to 682937)

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$1783.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 606634

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 606634

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

11

Lawn-Boy 606635

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

11

Lawn-Boy 606635

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$5.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 603620

WASHER WROUGHT

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 603773

LOCKNUT

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 603773

LOCKNUT

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 602677

NUT

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

14

Lawn-Boy 602677

NUT

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 607847

SCREW

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 607847

SCREW

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

16

Lawn-Boy 679903

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

16

Lawn-Boy 679903

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 607715

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 607715

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

18

Lawn-Boy 604516

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 604516

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

19

Lawn-Boy 608311

NUT-LOCK F

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

19

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$3.49

$

In Stock, only 3 left!

0

20

Lawn-Boy 604024

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 604024

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

21

Lawn-Boy 608559

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

21

Lawn-Boy 608559

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 11

0

22

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$5.99

$

In Stock, Qty 11

0

23

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$33.99

$

In Stock, Qty 18

0

23

Lawn-Boy 603703

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$33.99

$

In Stock, Qty 18

0

24

Lawn-Boy 605058

WASHER

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$5.99

$

In Stock, Qty 12

0

24

Lawn-Boy 605058

WASHER

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$5.99

$

In Stock, Qty 12

0

25

Lawn-Boy 603541

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

25

Lawn-Boy 603541

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$51.99

$

In Stock, only 3 left!

0

26

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$51.99

$

In Stock, only 3 left!

0

27

Lawn-Boy 604624

GASKET S

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$11.99

$

In Stock, Qty 5

0

27

Lawn-Boy 604624

GASKET S

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$11.99

$

In Stock, Qty 5

0

28

Lawn-Boy 602717

SLEEVE

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$2.99

$

In Stock, Qty 16

0

28

Lawn-Boy 602717

SLEEVE

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$2.99

$

In Stock, Qty 16

0

29

Lawn-Boy 120177

WASHER, LOCK

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 120177

WASHER, LOCK

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

30

Lawn-Boy 678406

See Supercession: 681980
(Superseded to 681980)

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$68.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 678406

See Supercession: 681980
(Superseded to 681980)

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$68.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 606638

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

31

Lawn-Boy 606638

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 608582

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 608582

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

33

Lawn-Boy 608381

HINGE PIN

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

33

Lawn-Boy 608381

HINGE PIN

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 608380

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

34

Lawn-Boy 608380

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 608377

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 608377

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

36

Lawn-Boy 306372

Cotter Pin

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Currently unavailable

36

Lawn-Boy 306372

Cotter Pin

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

37

Lawn-Boy 608379

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 608379

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

38

Lawn-Boy 306409

Screw

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Currently unavailable

38

Lawn-Boy 306409

Screw

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

39

Lawn-Boy 608378

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 608378

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

40

Lawn-Boy 602315

LOCKNUT E

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

40

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$4.99

$

In Stock, only 2 left!

0

41

Lawn-Boy 602315

LOCKNUT E

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

41

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$4.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$4.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 602315

LOCKNUT E

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

43

Lawn-Boy 608382

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 608382

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

44

Lawn-Boy 608376

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

44

Lawn-Boy 608376

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 608189

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 608189

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

46

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

47

Lawn-Boy 608869

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 608869

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

48

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

48

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 306409

Screw

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

49

Lawn-Boy 306409

Screw

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Currently unavailable

50

Lawn-Boy 602945

WASHER

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

50

Lawn-Boy 602945

WASHER

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 604995

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 604995

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

52

Lawn-Boy 606632

See Supercession: 611260
(Superseded to 611260)

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$108.99

$

In Stock, only 1 left!

0

52

Lawn-Boy 606632

See Supercession: 611260
(Superseded to 611260)

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$108.99

$

In Stock, only 1 left!

0

53

Lawn-Boy 306405

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 306405

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

54

Lawn-Boy 606144

BOLT PIONEER

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 606144

BOLT PIONEER

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

55

Lawn-Boy 306542

Nut

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Currently unavailable

55

Lawn-Boy 306542

Nut

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Currently unavailable

56

Lawn-Boy 310356

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 310356

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

57

Lawn-Boy 679163

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 679163

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

58

Lawn-Boy 679166

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 679166

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

59

Lawn-Boy 606636

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 606636

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

60

Lawn-Boy 602192

SCREW S

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

60

Lawn-Boy 602192

SCREW S

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 606637

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

61

Lawn-Boy 606637

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 603927

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

62

Lawn-Boy 603927

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 679167

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 679167

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

64

Lawn-Boy 602315

LOCKNUT E

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

64

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$4.99

$

In Stock, only 2 left!

0

65

Lawn-Boy 602480

SCREW

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 602480

SCREW

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

66

Lawn-Boy 679168

DISCONTINUED
(Superseded to 604601)

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 679168

DISCONTINUED
(Superseded to 604601)

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available

Lawn-Boy 608374

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

Lawn-Boy 608374

DISCONTINUED

Note: Note Num 1: Painted, plastic, fiberglass replacement parts or wheels may not always be available in matching colors.

$

$

Not available

Lawn-Boy 608374

DISCONTINUED

Note: Important Note: An Accessory Grasscatcher is available, Part No. 679976.

$

$

Not available
