5269 D - Lawn-Boy Walk-Behind Mower (SN: 600000001 - 699999999) (1976) MODEL D-409 MAGNETO AND STARTER: MODELS USED ON: 7260D, 7221D, 5239D, 5269D Parts Diagram

Walk-Behind Mower

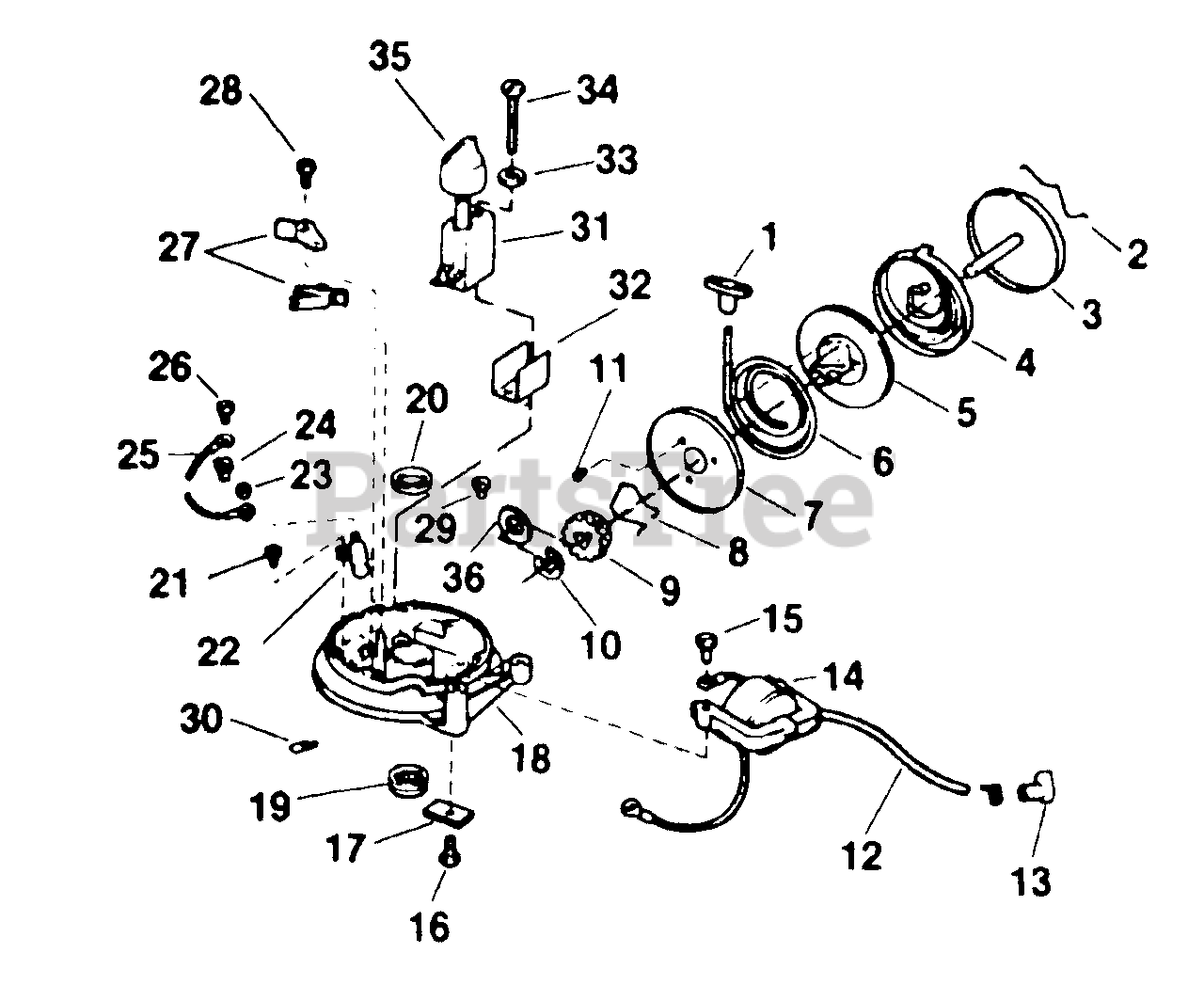

MODEL D-409 MAGNETO AND STARTER: MODELS USED ON: 7260D, 7221D, 5239D, 5269D Parts Diagram

  • Title
1

Lawn-Boy 606863

Handle-Starter
(Superseded to 609477)

$

$

Not available

2

Lawn-Boy 604573

Spring-Starter Rope Retainer

$5.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 678112

Spring-Cup Pin Assy.
(Superseded to 681353)

$

$

Not available

4

Lawn-Boy 604257

Spring-Starter

$40.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 604646

Pulley-Starter

$

$

Not available

6

Lawn-Boy 604279

Rope-Starter

$

$

Not available

7

Lawn-Boy 604244

Plate-Starter Pulley
(Superseded to 681896)

$

$

Not available

8

Lawn-Boy 604260

Spring-Starter Pinion

$14.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 607547

Pinion-Starter

$

$

Not available

10

Lawn-Boy 604259

Retainer-Push-On

$

$

Not available

11

Lawn-Boy 602821

Scr.-Threaded Cutting Starter

$

$

Not available

12

Lawn-Boy 678117

High Tension Lead Assy.

$20.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 580339

Cover & Terminal Assy.
(Superseded to 684698)

$7.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 678539

Coil & Lamination Assy.

$

$

Not available

15

Lawn-Boy 607526

Scr.-Lamination Mtg.
(Superseded to 32105-12)

$2.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 604857

Scr.-Starter Attach.

$7.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 604261

Clamp-Starter Pin

$

$

Not available

18

Lawn-Boy 681316

Arm. Pl., Brg. & Oil Seal Assy.

$

$

Not available

19

Lawn-Boy 679277

Bearing

$

$

Not available

20

Lawn-Boy 605020

Oil Seal
(Superseded to 611396)

$6.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 605020

Oil Seal
(Superseded to 611396)

$6.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 677299

Cond. & Nut Assy.

$

$

Not available

$3.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 604256

Grommet-Nylon

$5.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 678116

Terminal & Lead Assy.

$

$

Not available

26

Lawn-Boy 604986

Screw-Shut-Off Switch

$

$

Not available

27

Lawn-Boy 677254

Brkr. Base & Arm Assy.

$54.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 303212

Screw-Breaker Base

$

$

Not available

29

Lawn-Boy 607255

Grommet

$

$

Not available

30

$

$

Not available

31

Lawn-Boy 679620

Shorting Switch

$

$

Not available

32

Lawn-Boy 608597

Insulator

$

$

Not available

33

$

$

Not available

34

$

$

Not available

35

$

$

Not available

36

$

$

Not available
