5269 D - Lawn-Boy Walk-Behind Mower (SN: 500000001 - 599999999) (1975) MODEL D-409 ENGINE: MODELS USED ON: 7260D, 7221D, 5239D, 5269D Parts Diagram

Walk-Behind Mower

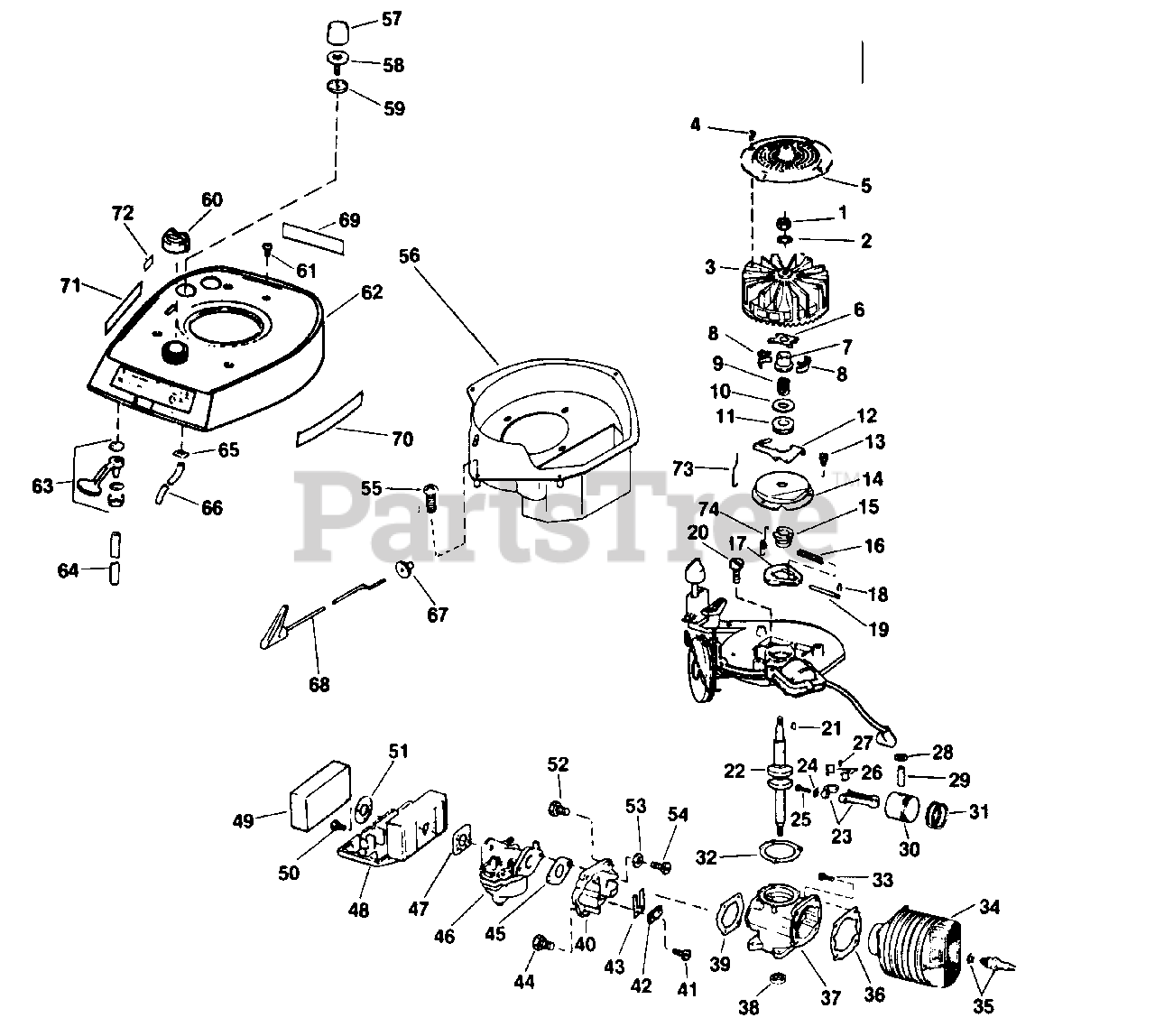

MODEL D-409 ENGINE: MODELS USED ON: 7260D, 7221D, 5239D, 5269D Parts Diagram

  • Title

1

Lawn-Boy 130743

Nut-Flywheel

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$3.49

$

In Stock, Qty 6

0

2

Lawn-Boy 304161

Lockwasher-Flywheel

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

3

Lawn-Boy 679900

Flywheel & Screen Assy.

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

4

Lawn-Boy 606537

Screw-Thd. Cutting

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$2.49

$

In Stock, only 4 left!

0

5

Lawn-Boy 608805

Screen & Cup

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$28.99

$

In Stock, only 1 left!

0

Lawn-Boy 678149

Governor Assembly

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

6

Lawn-Boy 602635

Yoke-Governor

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

7

Lawn-Boy 602634

Collar-Governor

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$24.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 602636

Weight-Governor

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

9

Lawn-Boy 604269

Spring-Governor

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$8.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 604413

Thrust Washer

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

11

Lawn-Boy 604265

Collar-Thrust

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$12.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 604266

Lever-Governor

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$9.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 604344

Screw-Attach. Dust Cover

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

14

Lawn-Boy 604264

Dust Cover

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

15

Lawn-Boy 604276

Cam-Spark Advance

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

16

Lawn-Boy 604267

Spring-Spark Advance

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$4.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 604263

Flyweight-Spark Advance

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

18

Lawn-Boy 604314

Retainer-Spring

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$3.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 604277

Pin-Spark Advance

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

20

Lawn-Boy 604742

Scr.-Arm Pl. to Crankcase

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

21

Lawn-Boy 607199

Key-Crankshaft

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$5.49

$

In Stock, Qty 9

0

22

Lawn-Boy 604315

Crankshaft

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

Lawn-Boy 679155

Piston & Connect. Rod Assy.
(Superseded to 682864)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

23

Lawn-Boy 679156

Connect. Rod Assy.
(Superseded to 682865)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

24

Lawn-Boy 307558

Lockpl.-Connect. Rod Scr.
(Superseded to 307578)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

25

Lawn-Boy 603976

Screw-Connect. Rod

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

26

Lawn-Boy 677982

Liners-Connect. Rod

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$46.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 677963

Needle Brg. Set
(Superseded to 683911)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$23.99

$

In Stock, Qty 5

0

28

Lawn-Boy 303712

Retaining Ring

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$3.49

$

In Stock, Qty 11

0

29

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$11.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 606607

Piston

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

31

Lawn-Boy 679252

Ring Set

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

32

Lawn-Boy 602590

Gasket-Crkc. to Arm Pl. .005 in.

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40. 678071-Gasket Set

$

$

Not available

32

Lawn-Boy 602763

Gasket-Crkc. to Arm. Pl. .010 in.

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40. 678071-Gasket Set

$2.49

$

In Stock, only 1 left!

0

33

Lawn-Boy 602657

Screw-Cyl. to Crankcase

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

34

Lawn-Boy 678133

Cylinder and Sleeve Assembly
(Superseded to 678106)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

35

Spark Plug and Gasket

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40. Not sold individually; Sold only in prepack quantities of 20. Part #679743.

$

$

Not available

36

Lawn-Boy 604116

Gasket-Cyl. to Crankease

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40. 678071-Gasket Set

$3.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 679687

Crankcase and Seal Assy.

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

38

Lawn-Boy 605020

Oil Seal
(Superseded to 611396)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$6.99

$

In Stock, only 2 left!

0

39

Lawn-Boy 608362

Gasket-Reed Plate

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40. 678071-Gasket Set

$4.49

$

In Stock, Qty 8

0

40

Lawn-Boy 679711

Reed Plate Assembly

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

41

Lawn-Boy 303761

Screw-Machine
(Superseded to 612872)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$2.49

$

In Stock, Qty 5

0

42

Lawn-Boy 602587

Plate-Back-up

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$3.49

$

Usually ships in 3-6 days

0

43

Lawn-Boy 602588

Reed

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

44

Lawn-Boy 604857

Screw-H.H. Reed Pl. to Crkc.

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$7.49

$

Usually ships in 3-6 days

0

45

Lawn-Boy 602052

Gasket-Carburetor

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40. 678071-Gasket Set

$3.99

$

In Stock, Qty 18

0

46

Lawn-Boy 679710

Carburetor Assy.

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

47

Lawn-Boy 607577

Gasket

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$3.49

$

In Stock, only 4 left!

0

48

Lawn-Boy 607578

Case-Air Filter

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$36.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 607580

Element

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$4.99

$

In Stock, Qty 8

0

50

Lawn-Boy 602775

Screw

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

51

Lawn-Boy 607579

Washer

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$2.99

$

In Stock, only 1 left!

0

52

Lawn-Boy 602192

Screw

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

53

Lawn-Boy 605076

Washer

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

54

Lawn-Boy 511328

Screw

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

55

Lawn-Boy 608808

Screw-Air Baffle

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

56

Lawn-Boy 681226

Air Baffle

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

57

Lawn-Boy 607310

Bulb-Primer
(Superseded to 610482)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

58

Lawn-Boy 607311

Base-Primer

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

59

Lawn-Boy 607844

Cap-Primer

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

60

Lawn-Boy 681214

Cap-Gas Tank

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

61

Lawn-Boy 608997

Screw-Cover Mtg.

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$2.49

$

In Stock, only 2 left!

0

62

Lawn-Boy 681510

Cover-Engine

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

63

Lawn-Boy 681064

Shut-off Valve
(Superseded to 681524)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

64

Lawn-Boy 605126

Fuel Hose

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$8.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 607027

Fastener

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$3.23

$

Usually ships in 3-6 days

0

66

Lawn-Boy 607575

Gas Line
(Superseded to 44-3173)

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$5.49

$

In Stock, only 1 left!

0

67

Lawn-Boy 608820

Grommet

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

68

Lawn-Boy 681235

Knob & Rod

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$47.99

$

In Stock, only 2 left!

0

69

Lawn-Boy 608828

Decal-Lawn-Boy

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

70

Lawn-Boy 608829

Decal-RH

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

71

Lawn-Boy 608830

Decal-LH

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

72

Lawn-Boy 608952

Decal-Primer

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available

73

Lawn-Boy 604297

Rod Governor

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$22.99

$

Usually ships in 3-6 days

0

74

Lawn-Boy 604291

Spring-Variable Speed

Note: Note #1. Replacement parts for Modular Carburetor and Reed Plate are listed on page 40.

$

$

Not available
