52676 - Gravely Grass Bagger for GEM Tractor FRAME AND COVER ASSEMBLY Parts Diagram

Grass Bagger for GEM Tractor

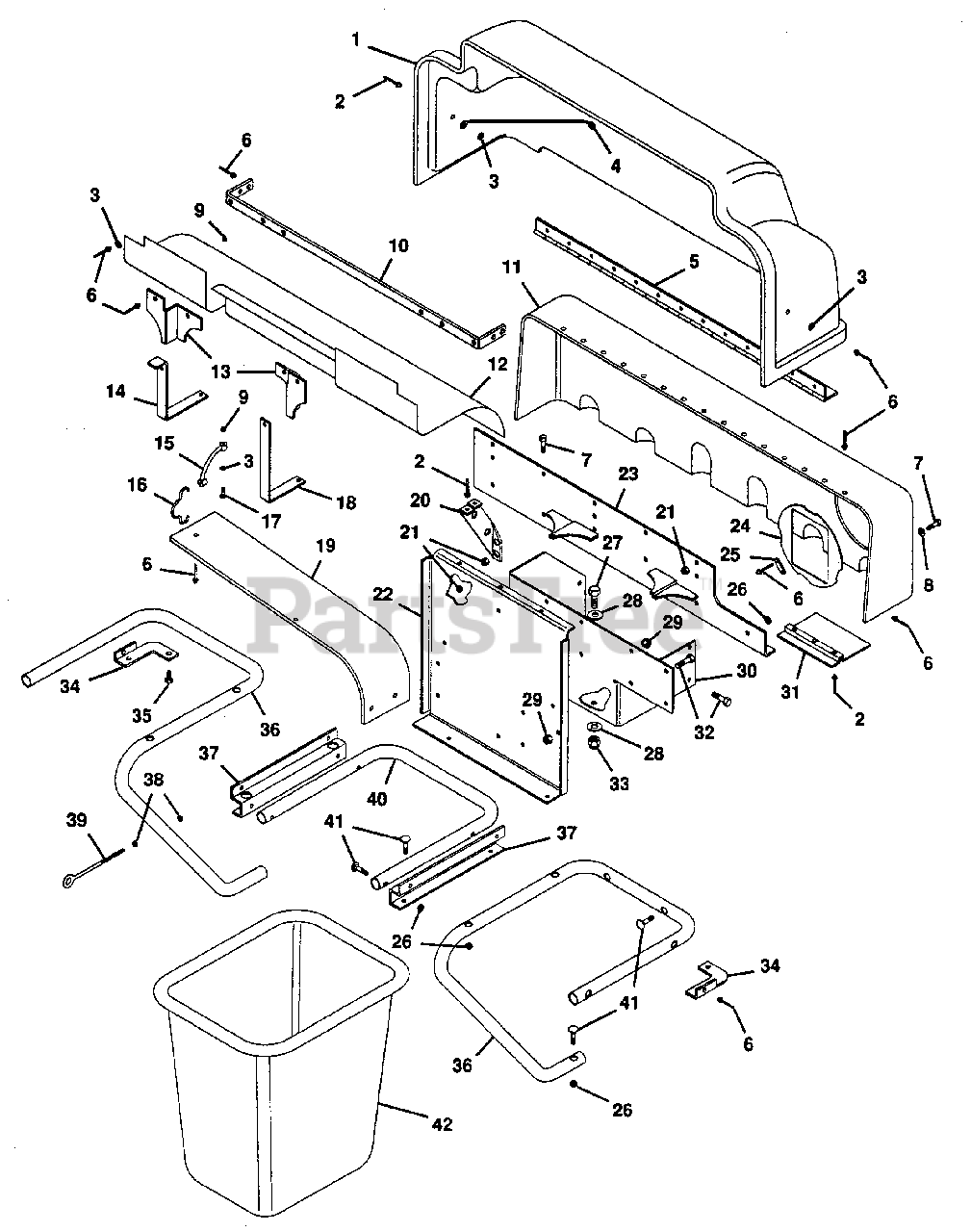

FRAME AND COVER ASSEMBLY Parts Diagram

  • Title
1

Gravely 045463

Cover, Hinged

$

$

Not available

2

Gravely 041098

Rivet, Pop-Domed 3/16x.527
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 120385

Washer, Flat .188x.562x.049
(Superseded to 06409200)

$

$

Not available

4

Gravely 041097

Brace
(Superseded to 03552900)

$

$

Not available

5

$

$

Not available

6

Gravely 026537

Rivet, Pop-Domed
(Superseded to 20453800)

$

$

Not available

7

Gravely 180078

Bolt, Hex 5/16-18x.875
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 038335

Washer, Flat .340x1.12x.063
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

9

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 045462

Bracket, Screen Mounting
(Superseded to 03325400)

$

$

Not available

11

Gravely 050353

Cover, Stationary
(Superseded to 53506700)

$

$

Not available

12

Gravely 041095

Screen
(Superseded to 03325500)

$

$

Not available

13

Gravely 041099

Baffle, L.H.
(Superseded to 03326900)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 041100

Baffle, R.H.
(Superseded to 03327000)

$

$

Not available

14

Gravely 041102

Brace
(Superseded to 03553000)

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 035829

Strap
(Superseded to 07507500)

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 035830

Hook
(Superseded to 02738100)

$6.99

$

In Stock, Qty 5

0

17

Gravely 132848

Screw, Mach. 10-24x1.00 Rd Hd
(Superseded to 06112700)

$

$

Not available

18

Gravely 041101

Brace
(Superseded to 03326500)

$113.99

$

Usually ships in 4-12 days

0

19

$

$

Not available

20

Gravely 041092

Brace
(Superseded to 02725200)

$

$

Not available

21

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 050421

Bracket, Attachment
(Superseded to 21293500)

$

$

Not available

23

Gravely 050423

Weldment, Mounting Bracket

$

$

Not available

24

Gravely 050385

Plate, Adaptor
(Superseded to 21293100)

$

$

Not available

25

Gravely 050374

Clip, Boot
(Superseded to 02745700)

$38.99

$

Usually ships in 4-12 days

0

26

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

28

Gravely 417098

Washer, Flat .531x.1.000x.063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

30

Gravely 050422

Support, Bracket
(Superseded to 21293600)

$

$

Not available

31

Gravely 045466

Guide, Tube
(Superseded to 53506300)

$

$

Not available

32

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 041089

Bracket, R.H. Corner
(Superseded to 02725000)

$

$

Not available

34

Gravely 041090

Bracket, L.H. Corner
(Superseded to 02725100)

$

$

Not available

35

Gravely 180073

Bolt, Hex 5/16-18x.50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

36

Gravely 038321

Tube, Right
(Superseded to 03324800)

$

$

Not available

36

Gravely 038322

Tube, Left
(Superseded to 03324900)

$

$

Not available

37

Gravely 038323

Bracket, Tube
(Superseded to 02724700)

$

$

Not available

38

Gravely 424215

Nut, Lock 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 045468

Eyebolt
(Superseded to 02440100)

$10.99

$

Usually ships in 4-12 days

0

40

Gravely 038325

Tube, Center
(Superseded to 02724651)

$44.99

$

Usually ships in 4-12 days

0

41

Gravely 035809

Screw, Machine 5/16-18x1.50
(Superseded to 06119100)

$

$

Not available

42

Gravely 038328

Basket, Grass Bagger
(Superseded to 02724400)

$79.99

$

Usually ships in 4-12 days

0

NS

Gravely 024608

Decal, Gravely Logo
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0
