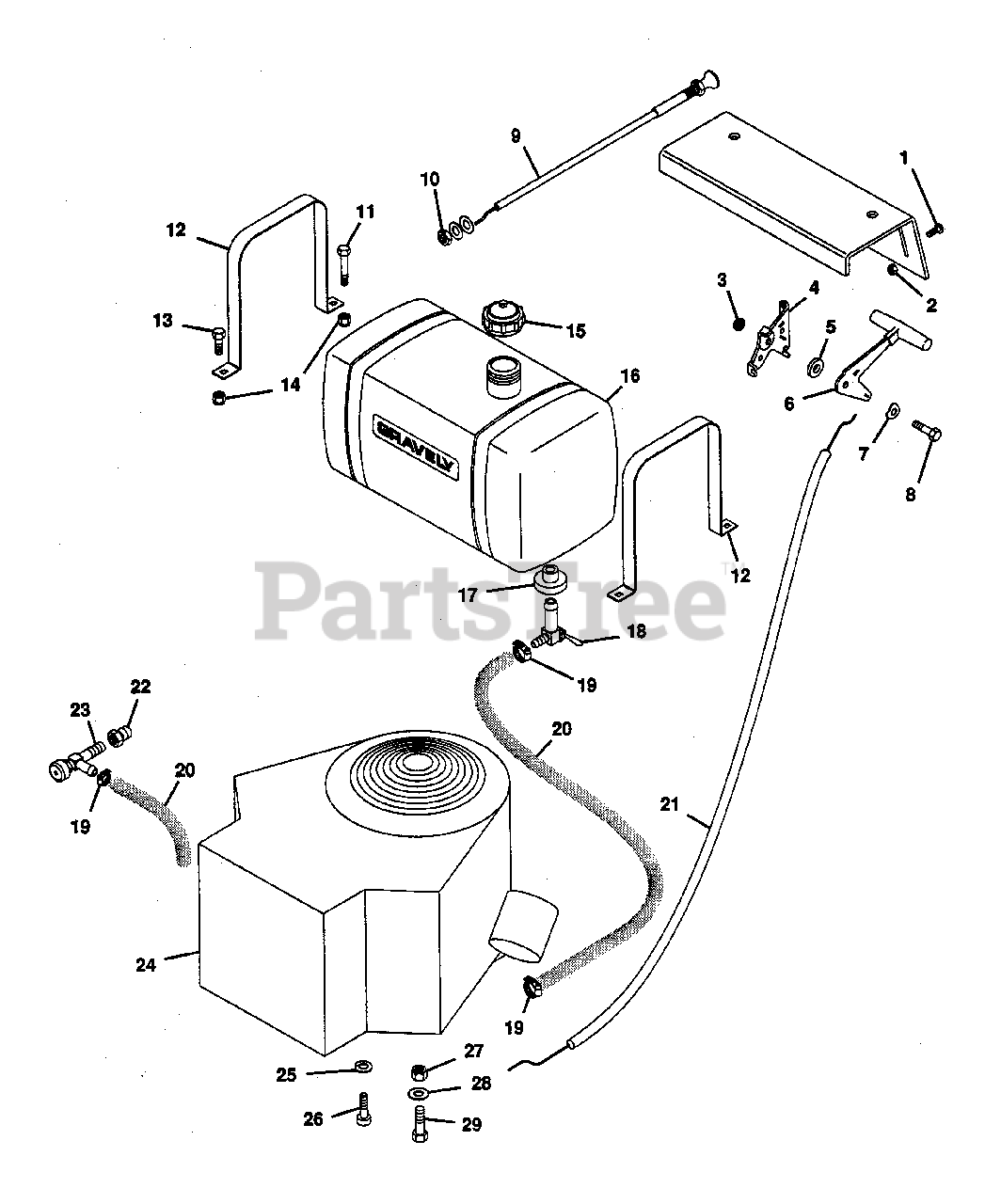

52664 - Gravely Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton Fuel And Exhaust System - 16 H.P. Units Parts Diagram

Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton

Fuel And Exhaust System - 16 H.P. Units Parts Diagram

  • Title
1

Gravely 160046

Screw, Mach. 10-32x.50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 411893

Nut, Lock 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 416430

Nut, Lock 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

4

11770

Bracket, Mounting L.H.

$

$

Not available

5

11772

Washer, Friction

$

$

Not available

6

11773

Assembly, Knob and Lever

$

$

Not available

7

11774

Washer, Spring

$

$

Not available

8

Gravely 181566

Bolt, Hex 1/4-28x.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

9

35137

Control, Choke

$

$

Not available

10

Gravely 124925

Nut, Jam 3/8-24 Hex
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

11

Gravely 180042

Bolt, Hex 1/4-20x1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

12

49338

Strap, Fuel Tank

$

$

Not available

13

Gravely 180018

Bolt, Hex 1/4-20x.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

14

Gravely 419454

Nut, Lock 114-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

15

48856

Cap, Fuel Tank

$

$

Not available

16

49283

Tank, Fuel

$

$

Not available

17

47613

Bush., Flg..375x1.06x.625 Rb.

$

$

Not available

18

49284

Valve, Ball Shut-off

$

$

Not available

19

32045

Clamp, Hose

$

$

Not available

20

21134

ft. Line, Fuel

$

$

Not available

21

52955

Assembly, Throttle Conduit

$

$

Not available

22

35328

Adaptor, Oil Drain

$

$

Not available

23

35329

Cock, Oil Drain

$

$

Not available

24

52614

Engine, 16 HP B&S

$

$

Not available

24

52615

Muffler Kit

$

$

Not available

25

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

26

51666

Screw, M8x1.25x20mm SHD

$

$

Not available

27

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 180083

Bolt, Hex 5/16-18x1.50
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0
