52658 - Gravely Service Transmission for PM300 SERVICE TRANSMISSION KIT Parts Diagram

Service Transmission for PM300

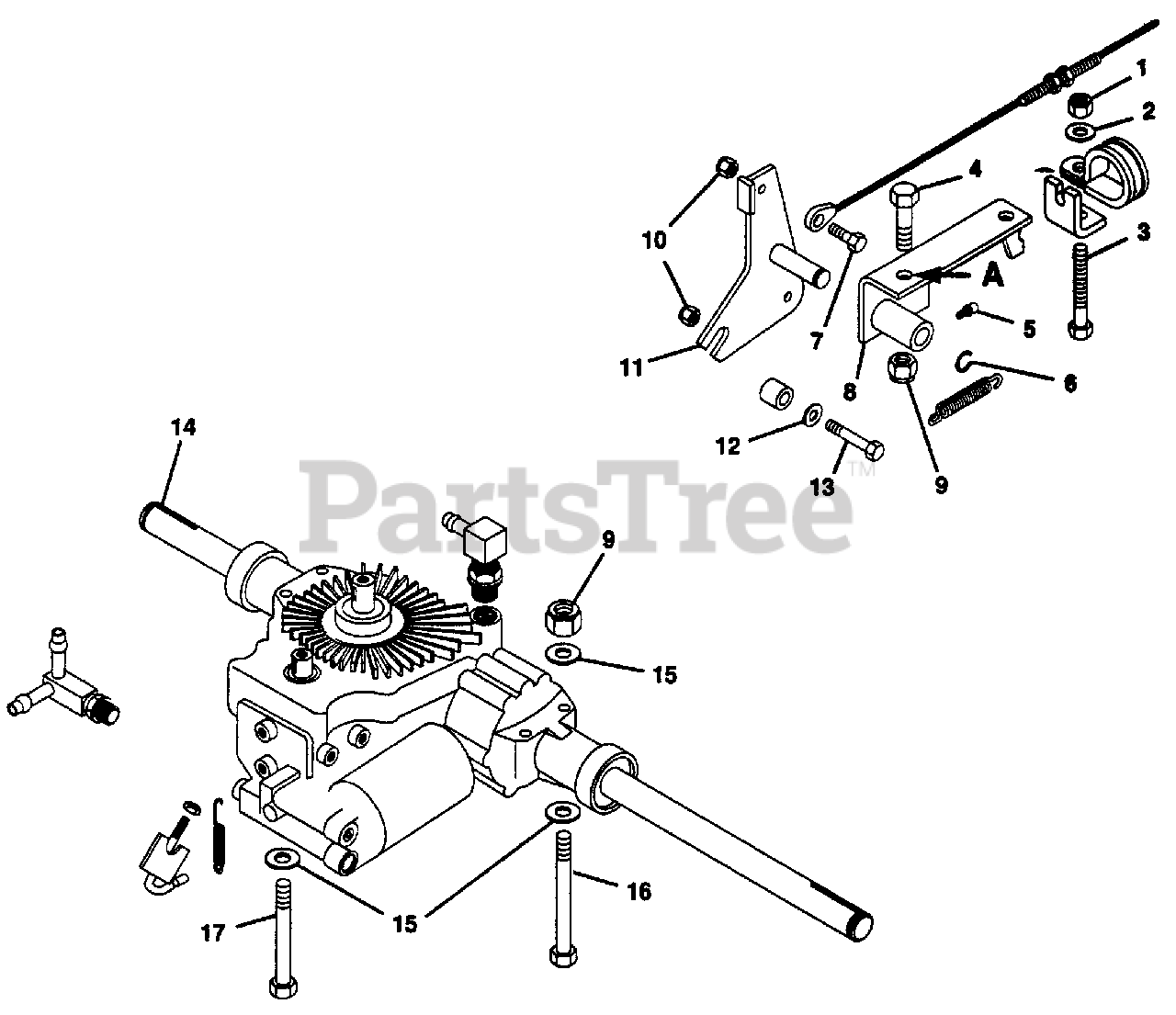

SERVICE TRANSMISSION KIT Parts Diagram

  • Title

1

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 411027

Fitting, Lube 1/4-28
(Superseded to 07012600)

$

$

Not available

6

Gravely 014981

E-Ring, 5133-50

$

$

Not available

7

Gravely 180021

Bolt, Hex 1/4-20x.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 052065

Weldment, Brake Pivot
(Superseded to 09009000)

$

$

Not available

9

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 051665

Weldment, Brake Arm
(Superseded to 09006600)

$

$

Not available

12

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 180042

Bolt, Hex 1/4-20x1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

14

Gravely 051627

Transaxle, Hydrostatic
(Superseded to 59000100)

$

$

Not available

15

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 191163

Bolt, Hex 3/8-16x4.00
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 189304

Bolt, Hex 3/8-16x3.25
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0
