5264 DL (54BL546-710) - Cub Cadet Series 5000 Tractor PTO Drive Parts Diagram

Series 5000 Tractor

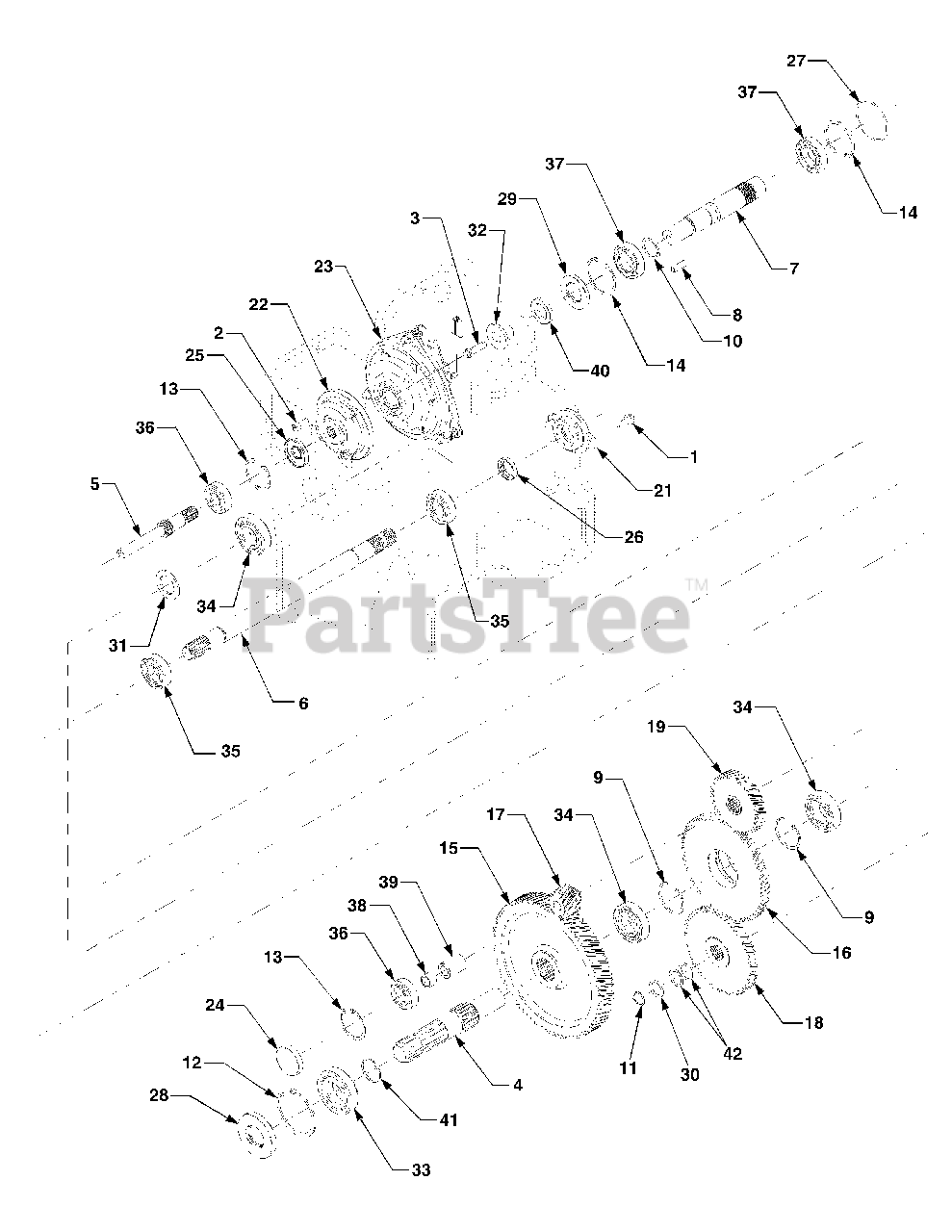

PTO Drive Parts Diagram

  • Title

1

Cub Cadet 710-0650

Screw, Hex Wash. Hd. Tapp. 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-1177

Screw, Socket Hd.5/16-18 x .75

$

$

Not available

3

Cub Cadet 710-04116

Screw, 12 Pt. Wash. Hd. w/Patch 3/8-16 x 1.25

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 711-1325A

Shaft, 540 PTO
(Superseded to 911-1325A)

$

$

Not available

5

Cub Cadet 711-1683A

Shaft, Clutch Back
(Superseded to 911-1683A)

$

$

Not available

6

Cub Cadet 711-1684

Shaft, 2000 PTO
(Superseded to 911-1684)

$

$

Not available

7

Cub Cadet 711-04420

Shaft, Input PTO
(Superseded to 911-04420)

$

$

Not available

8

Cub Cadet 714-0128

Key, Square, 1/4 x 1. 0

$4.99

$

In Stock, Qty 6

0

9

Cub Cadet 716-0180

Ring, Retaining

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 716-0181

Ring, Retaining

$

$

Not available

11

Cub Cadet 716-0384

Ring, Retaining

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 716-0387

Ring, Retaining

$

$

Not available

13

Cub Cadet 716-0393

Ring, Retaining

$

$

Not available

14

Cub Cadet 716-04000

Ring, Retaining
(Superseded to 916-04000)

$

$

Not available

15

Cub Cadet 717-3469

Gear, 540 PTO, 81T

$

$

Not available

16

Cub Cadet 717-3487

Gear, 2000 PTO , 61T

$

$

Not available

17

Cub Cadet 717-3492

Gear, Pinion, 540 PTO:14T

$

$

Not available

18

Cub Cadet 717-3494C

Gear, Pinion, 2000 PTO:54T

$

$

Not available

19

Cub Cadet 717-3551

Gear, Pinion, 2000 PTO:34T
(Superseded to 917-3551)

$

$

Not available

21

Cub Cadet 718-0681

Cover, 2000 PTO

$

$

Not available

22

Cub Cadet 718-04000

Adapter, PTO Output
(Superseded to 718-04000P)

$

$

Not available

23

Cub Cadet 718-04009

Clutch Assy. PTO
(Superseded to 918-04009)

$

$

Not available

24

Cub Cadet 721-0504

Plug, Oil, 1.875 x .375

$

$

Not available

25

Cub Cadet 721-04094

Seal, Oil

$11.99

$

In Stock, only 1 left!

0

26

Cub Cadet 721-0509

Seal, Oil

$

$

Not available

27

Cub Cadet 721-04002

O-Ring, 2.425 ID x .103
(Superseded to 921-04002)

$10.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 721-04124

Seal, Oil
(Superseded to 921-04124)

$

$

Not available

29

Cub Cadet 721-04005

Seal, Oil
(Superseded to 921-04005)

$16.99

$

In Stock, only 1 left!

0

30

Cub Cadet 736-0570

Washer, Flat, .865 x 1.145 x .030 ..
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-04001

Washer, Thrust
(Superseded to 936-04001)

$

$

Not available

32

Cub Cadet 738-04003

Spacer, Shoulder
(Superseded to 938-04003)

$

$

Not available

33

Cub Cadet 741-1100

Bearing, Ball

$36.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 741-3033A

Bearing, Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

35

Cub Cadet 741-3037

Bearing, Ball
(Superseded to 941-3037)

$41.99

$

In Stock, Qty 14

0

36

Cub Cadet 741-3057

Bearing, Ball
(Superseded to 941-3057)

$38.99

$

In Stock, Qty 10

0

37

Cub Cadet 741-04034

Bearing, Ball
(Superseded to 941-04034)

$

$

Not available

38

Cub Cadet 750-3365

Spacer, 15mm x 20mm x 14mm
(Superseded to 950-3365)

$

$

Not available

39

Cub Cadet 750-04013

Spacer, .6 x 1.0 x 1.345
(Superseded to 950-04013)

$

$

Not available

40

Cub Cadet 750-04020

Spacer, 1.004 x 1.375 x .25
(Superseded to 950-04020)

$12.99

$

In Stock, only 1 left!

0

41

Cub Cadet 716-04049

Ring, Retaining
(Superseded to 916-04049)

$10.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 736-0454

Washer, Flat, .915 x 1.37 x .010
(Superseded to 936-0454)

$

$

Not available
