5264 DL (54BL546-710) - Cub Cadet Series 5000 Tractor Pedestal Parts Diagram

Series 5000 Tractor

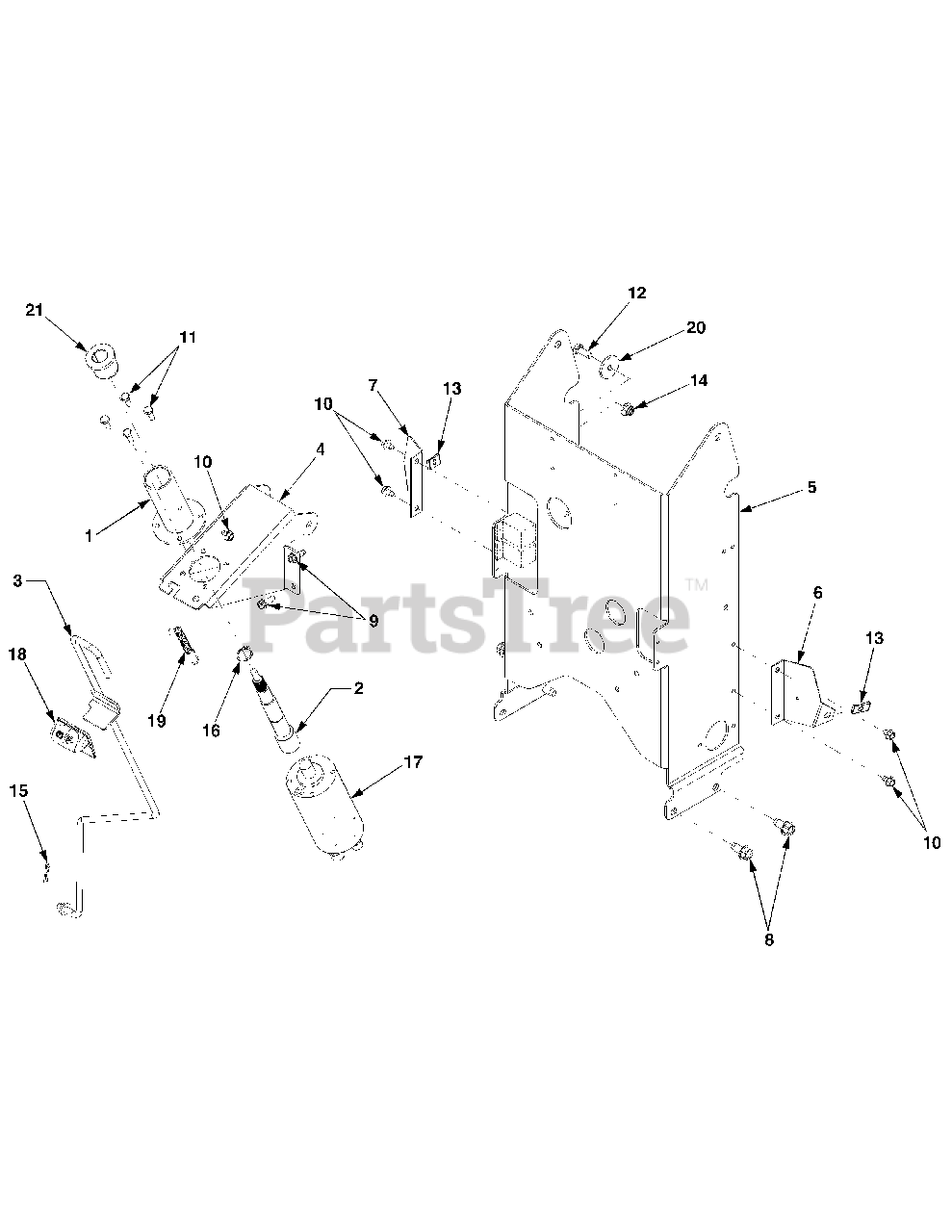

Pedestal Parts Diagram

  • Title

1

Cub Cadet 603-04320

Tube Assy. Steering Column

Variations

Cub Cadet 603-04320-0637

TUBE ASSEMBLY-STEERING (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 603-04321

Shaft, Steering

$

$

Not available

3

Cub Cadet 603-04330

Rod, Parking Brake

$

$

Not available

4

Cub Cadet 703-05818

Bracket, Steering Mounting

Variations

Cub Cadet 703-05818-0637

BRACKET-STRG SHAFT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-05828-0637

Pedestal
(Superseded to 703-05828A-0637)

$

$

Not available

6

Cub Cadet 703-3717

Bracket, Dash Mtg

$

$

Not available

7

Cub Cadet 703-3721

Bracket, Dash Mtg

$

$

Not available

8

Cub Cadet 710-0623

Screw, Hex Wash, Hd Tapp 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-0642

Screw, Hex Wash, Hd Tapp 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0653

Screw, Hex Wash, Hd Tapp 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 710-1690

Screw, Hex, M6-1 x 16 Hardened

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0292

Nut, Speed, 1/4-20

$10.99

$

In Stock, only 2 left!

0

14

Cub Cadet 712-04063

Nut, Hex Insert Flange Lock, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 716-0101

Ring, Snap, .75 Dia

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 718-3155

Pump, Hydraulic Steering
(Superseded to 918-3155)

$963.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-3359

Lever, Parking Brake

$

$

Not available

19

Cub Cadet 732-0320

Spring, Extension
(Superseded to 932-0320)

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet 736-0343

Washer, Flat, .33 x 1.25 x .12

$4.49

$

In Stock, Qty 7

0

21

Cub Cadet 741-0312

Bearing, Flg, .75 ID x 1.25 OD
(Superseded to 941-0312)

$8.99

$

In Stock, only 1 left!

0
