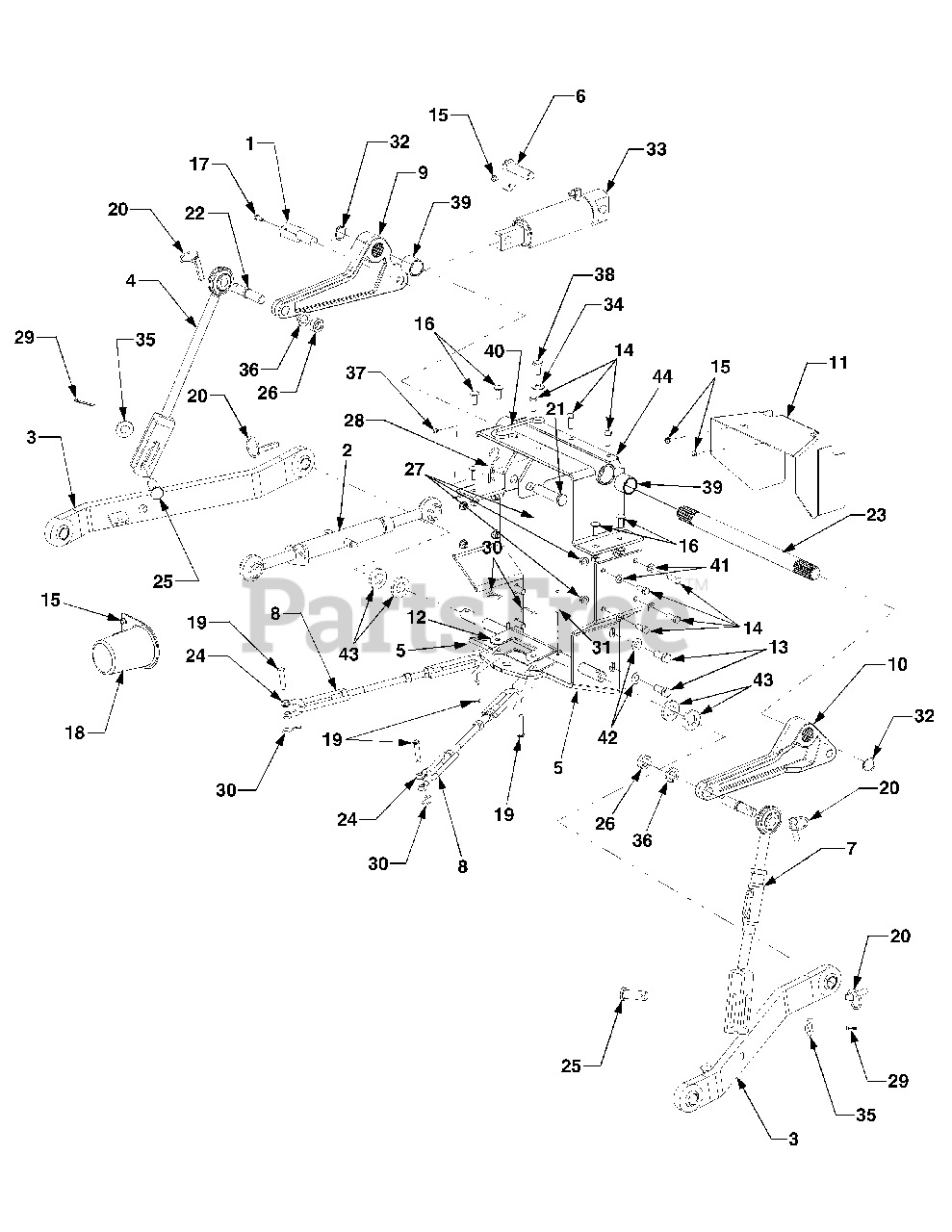

5264 DL (54AL546-710) - Cub Cadet Series 5000 Tractor Three Point Hitch Parts Diagram

Series 5000 Tractor

Three Point Hitch Parts Diagram

  • Title
1

603-04062-0637

Plate, Cylinder Mounting

$

$

Not available

2

Cub Cadet 603-0964

Link Assembly, Upper
(Superseded to 903-0964)

$

$

Not available

3

Cub Cadet 603-0965

Link, Lower
(Superseded to 903-0965)

$

$

Not available

4

Cub Cadet 603-0970

Link, Fixed Lift
(Superseded to 903-0970)

$209.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-04333-0637

Bracket Ass’y., Lower Hitch

$

$

Not available

6

Cub Cadet 603-0972-0637

Plate, Cylinder Mounting

$

$

Not available

7

Cub Cadet 603-0973

Link, Adjustable Lift
(Superseded to 903-0973)

$

$

Not available

Cub Cadet 603-0968

Link Rod RH Thrd.
(Superseded to 903-0968)

$

$

Not available

Cub Cadet 603-0969

Link Rod LH Thrd.

$

$

Not available

Cub Cadet 711-1744

Turnbuckle

$

$

Not available

Cub Cadet 712-04051

Jam Nut, M20 x 2.5 RH

$

$

Not available

8

Cub Cadet 603-0977

Chain Assembly, Check

$

$

Not available

Cub Cadet 603-0974

Chain Link RH Thrd.
(Superseded to 903-0974)

$

$

Not available

Cub Cadet 603-0975

Chain Link Lh Thrd.
(Superseded to 903-0975)

$

$

Not available

603- 0976

Chain Rod, Adjust.

$

$

Not available

9

Cub Cadet 619-3095

Arm, Hitch Lift - LH
(Superseded to 919-3095)

$

$

Not available

10

Cub Cadet 619-3096

Arm, Hitch Lift - RH
(Superseded to 919-3096)

$

$

Not available

11

Cub Cadet 703-4137-0637

Shield, PTO Shaft

$

$

Not available

11

Cub Cadet 777S30634

Graphic, Warning

$

$

Not available

12

Cub Cadet 703-4143-0637

Bracket, Chain Mounting

$

$

Not available

13

Cub Cadet 710-04186

Screw, Hex Cap Lock, 1/2-13 x 1.25 GR5

$7.49

$

In Stock, only 1 left!

0

14

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3168

Screw, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3296

Screw, Hex Cap, 1/4-20 x .75 GR5

$4.49

$

In Stock, only 3 left!

0

18

Cub Cadet 731-04114

Cover, PTO Shaft

$

$

Not available

19

Cub Cadet 711-0599

Pin, Clevis, .372 x 1.79
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

20

Cub Cadet 711-1105

Pin, Klik

$11.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-1733

Pin, Clevis, 19mm x 84mm

$

$

Not available

22

Cub Cadet 711-1743

Pin, Hitch, .75 OD
(Superseded to 911-1743)

$

$

Not available

23

Cub Cadet 711-1750

Shaft, Hitch Rock
(Superseded to 911-1750)

$

$

Not available

24

Cub Cadet 711-1753

Clevis, Chain
(Superseded to 911-1753)

$

$

Not available

25

Cub Cadet 711-1761

Pin, Clevis, .75 x 1.938
(Superseded to 911-1761)

$

$

Not available

26

Cub Cadet 712-0301

Nut, Hex Jam, 3/4-10 GR5

$7.99

$

In Stock, only 1 left!

0

27

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 714-0117

Pin, Internal Cotter

$4.49

$

In Stock, Qty 16

0

29

Cub Cadet 714-0142

Pin, Cotter, 3/16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 714-0149B

Pin, Internal Cotter

$4.49

$

In Stock, Qty 18

0

31

Cub Cadet 715-0121

Pin, Spirol, 1/4 x 2.0

$6.99

$

In Stock, Qty 8

0

32

Cub Cadet 716-04004

Ring, Retaining
(Superseded to 916-04004)

$

$

Not available

33

Cub Cadet 717-3532A

Cylinder, Lift
(Superseded to 917-3532A)

$

$

Not available

34

Cub Cadet 736-0255

Washer, Belleville, .51 x 1.14 x .04

$4.99

$

In Stock, only 3 left!

0

35

Cub Cadet 736-0315

Washer, Flat, .76 x 1.5 x .12

$6.99

$

In Stock, Qty 6

0

36

Cub Cadet 736-0364

Washer, Lock, 3/4
(Superseded to 936-0364)

$

$

Not available

37

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 738-0143

Screw, Shoulder, 3/8-16

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 741-04084

Bearing, Sleeve, 1.25 x 1.50 x 1.25
(Superseded to 941-04084)

$

$

Not available

40

Cub Cadet 747-04122

Rod, Top Link Hanger
(Superseded to 947-04122)

$

$

Not available

41

Cub Cadet 736-0185

Washer, Flat, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-04177

Washer, Flat, .938 x 1.75 x .235

$

$

Not available

44

Cub Cadet 603-04332-0637

Bracket, Ass’y., Upper Hitch

$

$

Not available
