5264 DL (54AL546-710) - Cub Cadet Series 5000 Tractor Cylinder Assembly Parts Diagram

Series 5000 Tractor

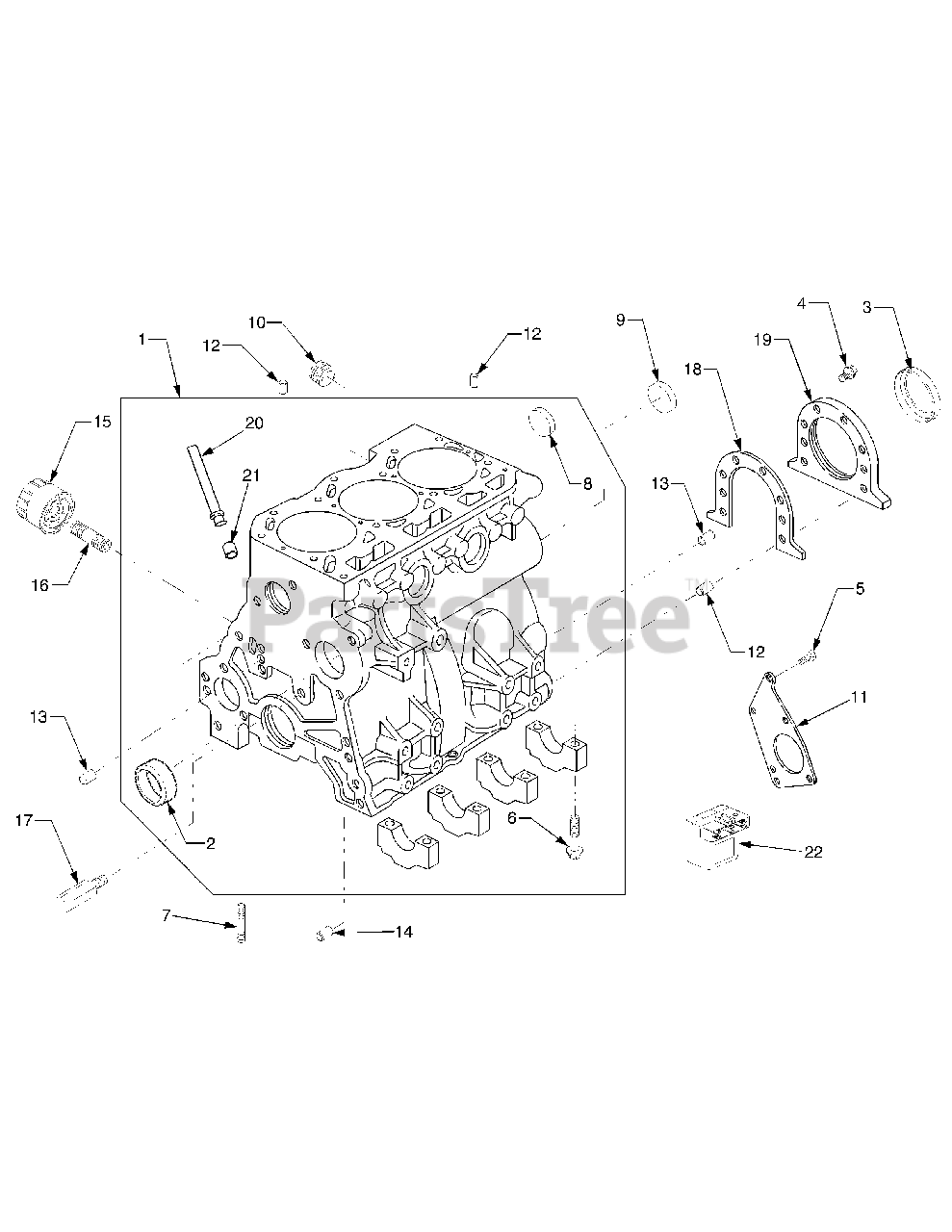

Cylinder Assembly Parts Diagram

  • Title

1

Cub Cadet BS-582447-0205

Service Engine

$5519.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-820129

Bushing
(Superseded to BS-821299)

$45.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-821073

Seal, Oil
(Superseded to BS-821328)

$73.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-820031

Screw, Hex, 6mm

$3.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-820176

Screw, Hex, 10mm

$3.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-820042

Screw, Hex, 10mm

$3.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-820016

Stud, Metric

$4.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-820004

Plug, Welch

$7.49

$

In Stock, only 2 left!

0

9

Cub Cadet BS-821069

Plug, Welch Camshaft

$67.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-820052

Plug, Cylinder Block

$6.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-820147

Bracket, Mounting

$60.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-820063

Pin, Locating

$6.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-820062

Pin, Locating

$7.49

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-820061

Pin, Locating

$6.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-820314

Filter, Oil

$

$

Not available

16

Cub Cadet BS-820851

Adapter, Oil Filter

$106.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-820102

Nozzle, Oil

$11.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-820145

Gasket, Retainer

$11.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-820146

Seal, Retainer

$

$

Not available

20

Cub Cadet BS-820144

Tube, Dipstick

$18.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-820662

Collar, Dipstick Tube

$11.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-820373

Module-Pre Heat

$192.99

$

Usually ships in 2-12 days

0
