5264 DE (54BE546-710) - Cub Cadet Series 5000 Tractor Front Axle Parts Diagram

Series 5000 Tractor

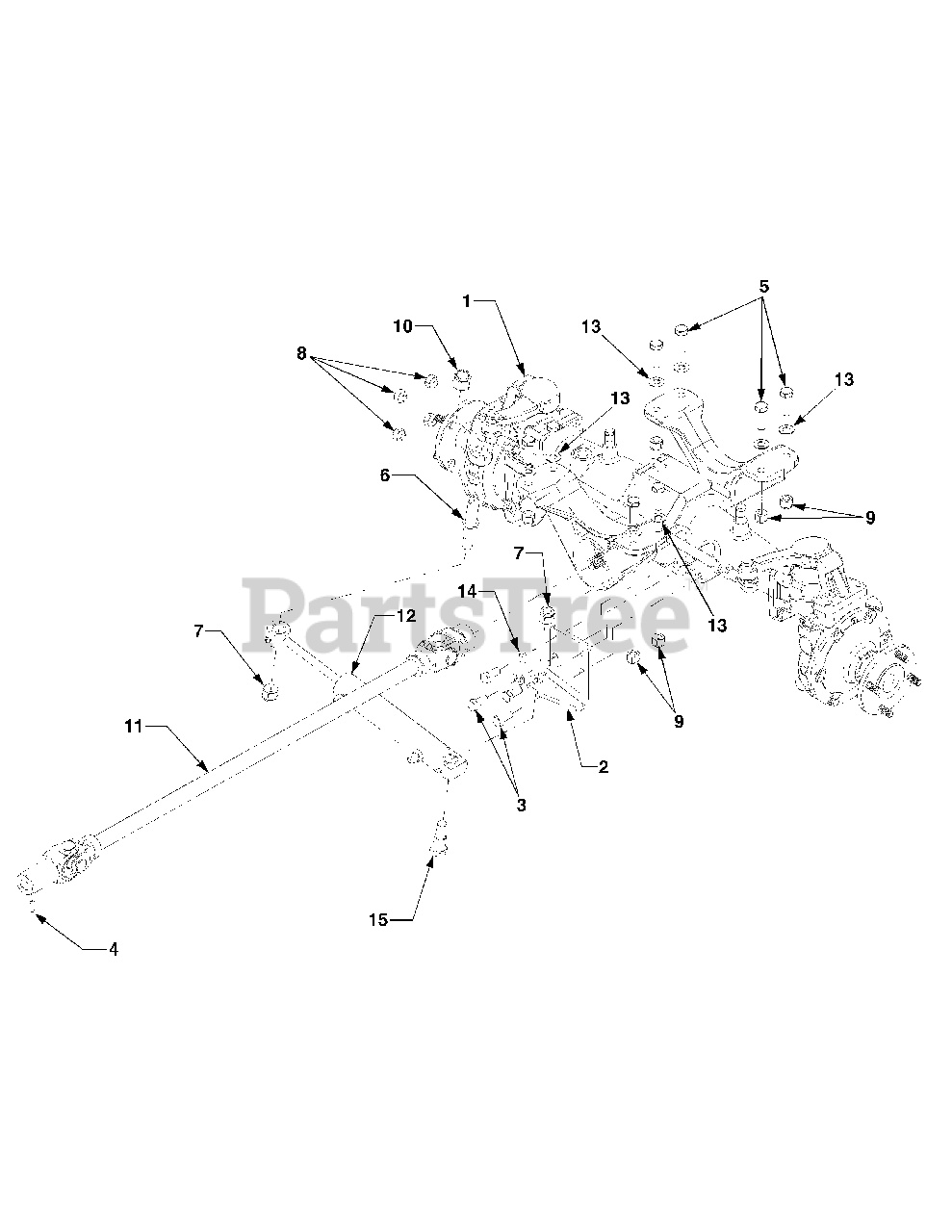

Front Axle Parts Diagram

  • Title

1

Cub Cadet 618-04028A

Axle, 4WD Front
(Superseded to 618-04266)

$

$

Not available

2

Cub Cadet 703-05357

Bracket, Cylinder Mounting
(Superseded to 703-05357-0637)

Variations

Cub Cadet 703-05357-0637

Cylinder Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-04208

Screw, Hex Cap, w/Patch M12-1.75 x 25 GR8

$

$

Not available

4

Cub Cadet 710-04214

Screw, Sq. Hd Lock. 5/16-18

$

$

Not available

5

Cub Cadet 710-3181

Screw, Hex Cap 1/2-13 x 1.5 GR5

$6.99

$

In Stock, only 1 left!

0

6

Cub Cadet 711-1410

Stud, Cylinder Mounting

$

$

Not available

7

Cub Cadet 712-3016

Nut, Hex Insert Lock 5/8-11 GR5

$6.99

$

In Stock, Qty 13

0

8

Cub Cadet 712-3050

Nut, Lug, 7/16-14

$9.99

$

In Stock, only 2 left!

0

9

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13 GR8

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3107

Nut, Hex Lock, 3/4-10 GRC

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 717-04010

Shaft, 4WD Drive
(Superseded to 917-04010)

$

$

Not available

12

Cub Cadet 717-04119

Cylinder, Steering
(Superseded to 917-04119)

$875.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 727-3012

Fitting, 90 Deg Hyd 3/8 x 3/8

Note: Not shown

$26.99

$

In Stock, only 4 left!

0

12

Cub Cadet 927-3002

Connector - Swivel Tube 37 Degree Fl

Note: Not shown

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

15

Cub Cadet 738-04049

Screw, Shoulder, .75 x 1.03
(Superseded to 938-04049)

$11.99

$

Usually ships in 3-6 days

0
