52627 - Gravely GEM Lawn Tractor, 14hp Kohler, Hydro SPEED SELECTOR Parts Diagram

GEM Lawn Tractor, 14hp Kohler, Hydro

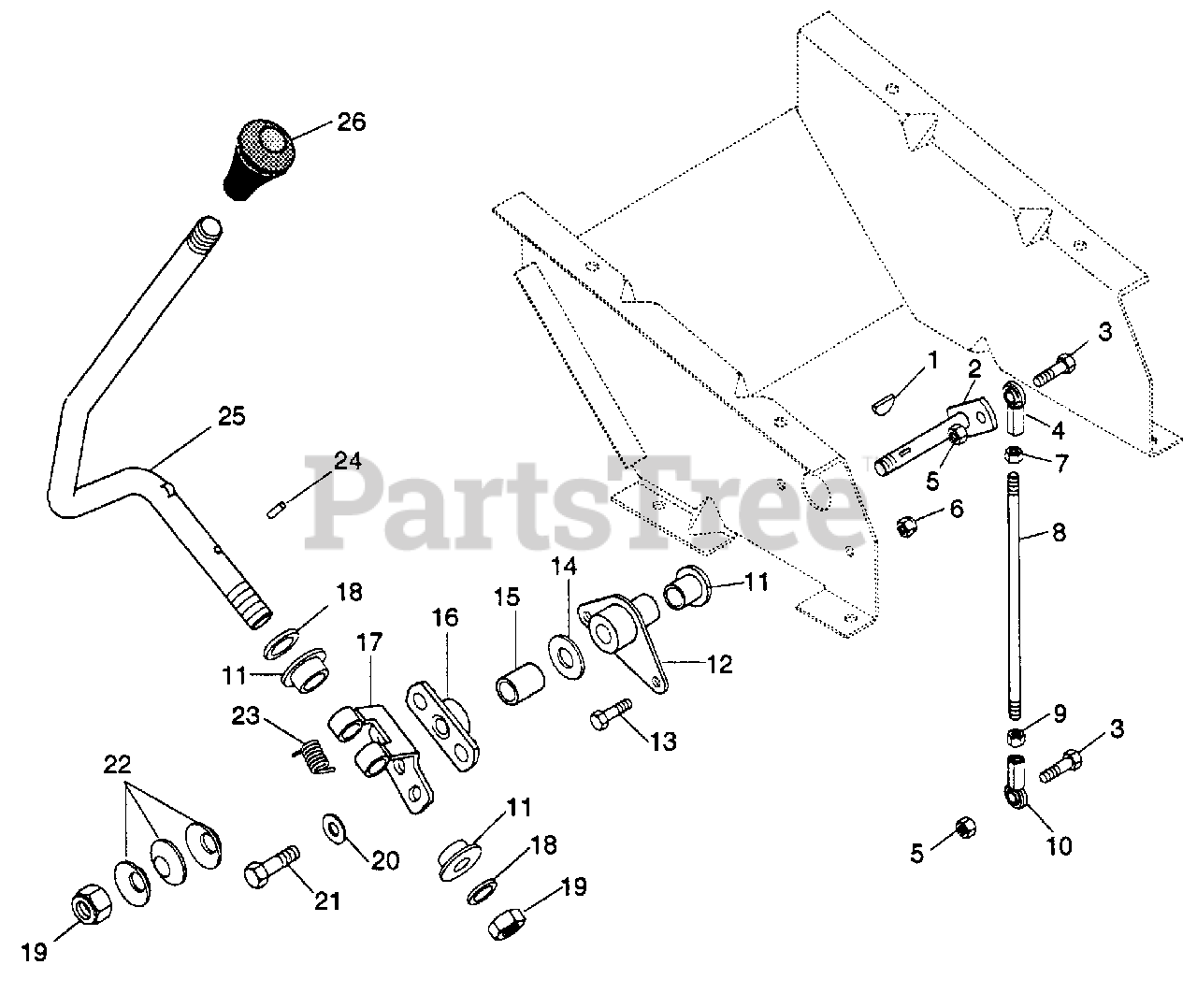

SPEED SELECTOR Parts Diagram

  • Title
1

Gravely 124543

Key, Wdrf 1/8 x 1/2 Hdr #3
(Superseded to 06608300)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 036123

Rod
(Superseded to 53128400)

$119.99

$

Usually ships in 4-12 days

0

3

Gravely 059080

Blt-Hex .25-20 x .63 Pl Gr 2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

4

Gravely 045354

Rod End RH
(Superseded to 03573200)

$

$

Not available

5

Gravely 419454

Nut-Lk-Nyl .250-20 Pl
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 419455

Nut-Lk-Nyl .312-18 Pl
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 120367

Nut-Hex .250-28
(Superseded to 06500400)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 034947

Shift Rod

$

$

Not available

9

Gravely 045352

Nut-LH .250-28 Gr 2 Pl
(Superseded to 06516800)

$

$

Not available

10

Gravely 045351

Rod End LH
(Superseded to 03573300)

$94.99

$

Usually ships in 4-12 days

0

11

Gravely 050215

Bshg-Flg .500 x .625 x .625 x .875
(Superseded to 05502500)

$5.99

$

Usually ships in 4-12 days

0

12

$

$

Not available

13

Gravely 180079

Blt-Hex .31-18 x 1.00 Pl Gr 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 050381

Friction Washer
(Superseded to 03463300)

$

$

Not available

15

Gravely 050380

Bshg-Slv .500 x .625 x .500
(Superseded to 05515900)

$6.99

$

Usually ships in 4-12 days

0

16

Gravely 050379

Arm
(Superseded to 03463400)

$

$

Not available

17

Gravely 050217

Outer Arm
(Superseded to 03450200)

$

$

Not available

18

Gravely 417098

Wshr-Fl-Stl .531 x 1.000 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 011835

Nut-Lk .50-20 Pl
(Superseded to 06544000)

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 120394

Wshr-Fl-Stl .406 x .812 x .065 Pl
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 180122

Blt-Hex .38-16 x 1.00 Pl Gr 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 050382

Spring Washer
(Superseded to 03463500)

$

$

Not available

23

Gravely 050219

Sg-Tors .08 x .56 x .65
(Superseded to 08325700)

$59.99

$

Usually ships in 4-12 days

0

24

Gravely 273936

Pin, Spring .125 x 1.000
(Superseded to 05800900)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 036125

Shift Lever

$

$

Not available

26

Gravely 041161

Knob
(Superseded to 07514500)

$23.99

$

Usually ships in 4-12 days

0
