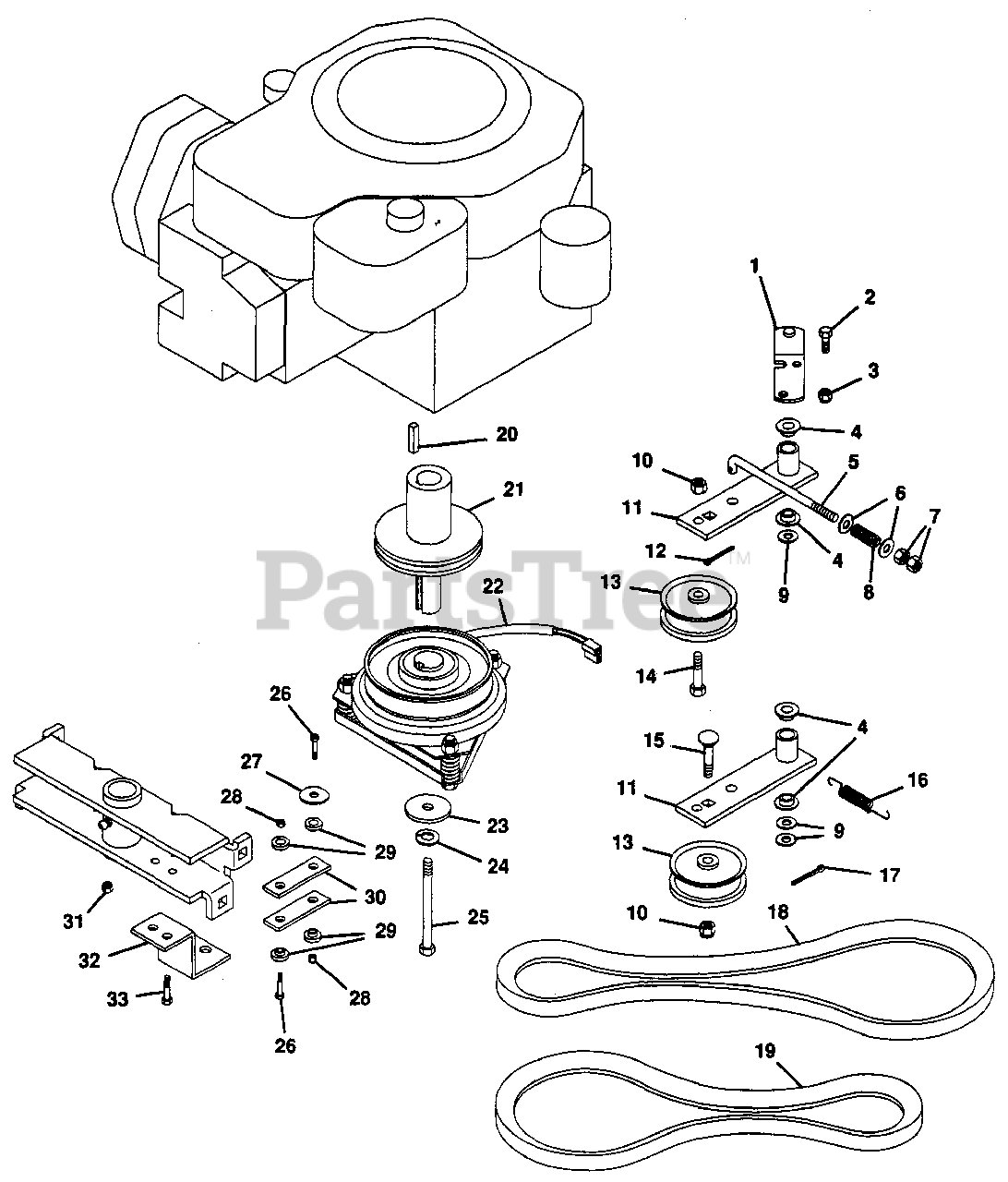

52626 - Gravely GEM Lawn Tractor, 12.5hp Kohler, Hydro MAIN DRIVE Parts Diagram

GEM Lawn Tractor, 12.5hp Kohler, Hydro

MAIN DRIVE Parts Diagram

  • Title

1

Gravely 049673

Weldment, Idler Pivot

$

$

Not available

2

Gravely 180077

Bolt, Hex 5/16-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 036057

Bushing, Flange
(Superseded to 05503700)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 051276

Rod, Idler
(Superseded to 03491700)

$

$

Not available

6

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 011779

Spring, Comp. 1 x .78 x 338 Lb/In
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

9

Gravely 417098

Washer, Flat .531 x 1.000 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 052570

Weldment, Idler
(Superseded to 03490100)

$

$

Not available

12

Gravely 121224

Pin, Cotter .094 x 1.00

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 035851

Idler
(Superseded to 07311100)

$39.99

$

In Stock, only 3 left!

0

14

Gravely 180128

Bolt, Hex 3/8-16 x 1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 126416

Bolt, 3/8-16 x 1.75 Rd Hd Sq Nk
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 050234

Extension Spring
(Superseded to 08320000)

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 120123

Pin, Cotter .125 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 049994

Belt, Transaxle
(Superseded to 07206400)

$69.99

$

Usually ships in 4-12 days

0

19

Gravely 049995

V-Belt, Jackshaft
(Superseded to 07214900)

$48.99

$

Usually ships in 4-12 days

0

20

Gravely 009213

Key, Square .250 x 1.00
(Superseded to 00966045)

$2.99

$

In Stock, only 2 left!

0

21

Gravely 051185

Weldment, Pulley
(Superseded to 03493000)

$

$

Not available

22

Gravely 050236

Clutch, Electric
(Superseded to 03450500)

$362.99

$

Usually ships in 4-12 days

0

23

Gravely 044379

Washer, Special
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

24

Gravely 131100

Washer, Lock 7/16 SP Heavy
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 049232

Bolt, Hex M10-1.5 x 140 mm
(Superseded to 05943700)

$

$

Not available

25

Gravely 193214

Bolt, Hex 7/16-20 x 5.5 Gr. 5
(Superseded to 05969000)

$7.99

$

In Stock, only 1 left!

0

26

Gravely 159957

Screw, Mach. 10-24 x 1.00 PHCR
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

27

Gravely 012694

Washer, Flat .265 x 1.250 x .063
(Superseded to 06403700)

$

$

Not available

28

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 050239

Special Washer
(Superseded to 03015600)

$25.99

$

Usually ships in 4-12 days

0

30

Gravely 050240

Link
(Superseded to 03036200)

$

$

Not available

31

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

32

Gravely 050238

Bracket, Torque
(Superseded to 03452300)

$

$

Not available

33

Gravely 180020

Bolt, Hex 1/4-20 x .750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0
