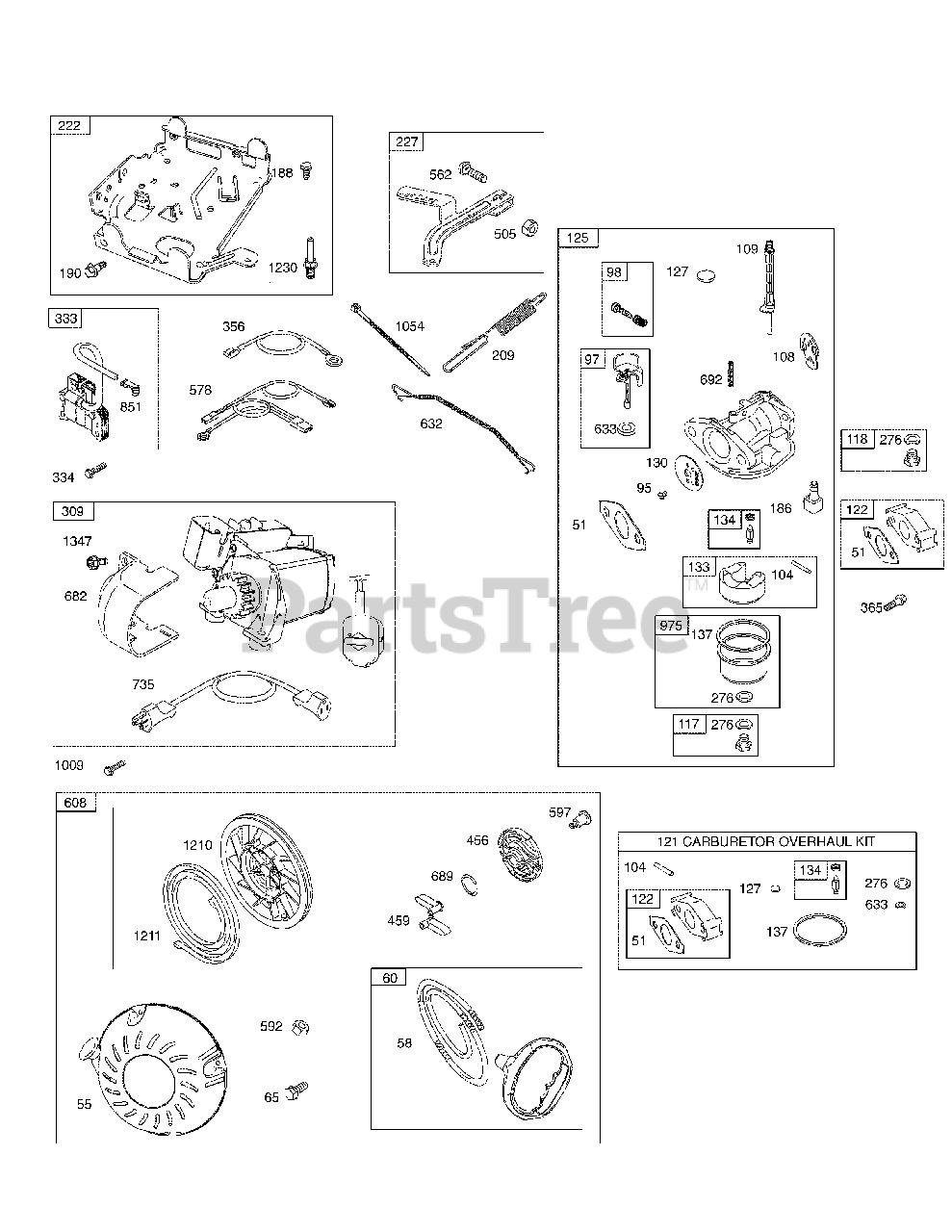

526 WE (31AH6WTS710) - Cub Cadet 26" Snow Thrower (2008) Engine Assembly 4 Parts Diagram

26" Snow Thrower

Engine Assembly 4 Parts Diagram

  • Title

1

Cub Cadet BS-794188

Cylinder Assembly

$232.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-399269

Kit-Bushing/Seal (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil (Magneto Side)
(Superseded to BS-299819S)

Note: Included in Engine Gasket Set, Ref No. 358

$5.49

$

In Stock, Qty 17

0

5

Cub Cadet BS-791720

Head-Cylinder

$172.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-791716

Gasket-Cylinder Head

Note: Included in Engine Gaset Set, Ref No. 358 & 1095

$14.99

$

In Stock, only 2 left!

0

11

Cub Cadet BS-695745

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-699485

Gasket-Crankcase

Note: Included in Engine Gasket Set, Ref No. 358

$8.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-699482

Screw (Cylinder Head)

$4.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-691686

Plug-Oil Drain

$5.49

$

In Stock, only 2 left!

0

16

Cub Cadet BS-795116

Crankshaft

$

$

Not available

18

Cub Cadet BS-699696

Cover-Crankcase

$199.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-692550

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set, Ref No. 358

$8.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-699478

Screw (Crankcase Cover/Sump)
(Superseded to BS-799318)

$

$

Not available

23

Cub Cadet BS-699516

Flywheel

$199.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-791786

Piston Assembly (Standard)

$122.99

$

In Stock, only 1 left!

0

25

Cub Cadet BS-791791

Piston Assembly (.020" Oversize)

$130.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-791787

Ring Set (Standard)

$38.99

$

In Stock, only 2 left!

0

26

Cub Cadet BS-791792

Ring Set (.020" Oversize)

$45.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-690975

Lock-Piston Pin

$3.99

$

In Stock, Qty 10

0

28

Cub Cadet BS-690229

Pin-Piston

$17.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-791783

Rod-Connecting

$61.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-791784

Screw (Connecting Rod)

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet BS-499642

Valve-Exhaust

$35.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-499641

Valve-Intake
(Superseded to BS-795443)

$27.99

$

In Stock, only 1 left!

0

35

Cub Cadet BS-691304

Spring-Valve (Intake)

$5.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-691304

Spring-Valve (Exhaust)

$5.99

$

Usually ships in 2-12 days

0

40

Cub Cadet BS-692194

Retainer-Valve

$5.99

$

In Stock, Qty 11

0

45

Cub Cadet BS-690977

Tappet-Valve

$7.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-693404

Camshaft

$73.99

$

In Stock, Qty 5

0

48

Cub Cadet N/A

Short Block

$

$

Currently unavailable

51

Cub Cadet BS-791718

Gasket-Intake

Note: Included in Engine Gasket Set, Ref No. 358,121 & 1095

$4.49

$

In Stock, Qty 7

0

55

Cub Cadet BS-696710

Housing-Rewind Starter

$45.99

$

Usually ships in 2-12 days

0

58

Cub Cadet BS-693389

Rope-Starter

$9.49

$

In Stock, only 2 left!

0

60

Cub Cadet BS-699334

Grip-Starter Rope

$13.99

$

In Stock, only 1 left!

0

65

Cub Cadet BS-690937

Screw (Rewind Starter) (SAE)

$8.49

$

In Stock, only 1 left!

0

65A

Cub Cadet BS-699228

Screw (Rewind Starter) (Metric)

$3.99

$

Usually ships in 2-12 days

0

95

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Cub Cadet BS-690024

Shaft-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-398185

Kit-Idle Speed#

Note: Included in Carburetor Overhaul Kit, Ref No. 121

$7.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-691242

Pin-Float Hinge#
(Superseded to BS-797622)

Note: Included in Carburetor Overhaul Kit, Ref No. 121

$3.99

$

In Stock, Qty 10

0

108

Cub Cadet BS-695807

Valve-Choke

$

$

Not available

109

Cub Cadet BS-791954

Shaft-Choke

$20.99

$

In Stock, Qty 6

0

117

Cub Cadet BS-691428

Jet-Main (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Cub Cadet BS-690048

Jet-Main (High Altitude)

$

$

Not available

121

Cub Cadet BS-792006

Kit-Carburetor Overhaul

$28.99

$

In Stock, Qty 20+

0

122

Cub Cadet BS-791717

Spacer-Carburetor

$13.99

$

In Stock, only 1 left!

0

125

Cub Cadet BS-794588

Carburetor
(Superseded to BS-594014)

$103.99

$

In Stock, only 3 left!

0

127

Cub Cadet BS-691739

Plug-Welch#

Note: Included in Carburetor Overhaul Kit, Ref No. 121

$4.49

$

Usually ships in 2-12 days

0

130

Cub Cadet BS-691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Cub Cadet BS-398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Cub Cadet BS-693981

Gasket-Float Bowl

Note: Included in Carburetor Overhaul Kit, Ref No. 121

$3.99

$

In Stock, Qty 20+

0

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, Qty 8

0

155

Cub Cadet BS-698214

Plate-Cylinder Head

$10.99

$

Usually ships in 2-12 days

0

177

Cub Cadet BS-795015

Seal-O Ring (Dipstick)

$11.99

$

Usually ships in 2-12 days

0

186

Cub Cadet BS-692317

Connector-Hose (Carburetor)

$6.49

$

In Stock, Qty 20+

0

187

Cub Cadet BS-791874

Line-Fuel (Formed)

$16.99

$

In Stock, only 1 left!

0

188

Cub Cadet BS-699479

Screw (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

190

Cub Cadet BS-699220

Screw (Fuel Tank)
(Superseded to BS-597133)

$4.99

$

In Stock, Qty 11

0

192

Cub Cadet BS-694543

Ball-Rocker Arm

$

$

Not available

209

Cub Cadet BS-692571

Spring-Governor

$7.49

$

In Stock, only 1 left!

0

219

Cub Cadet BS-693578

Gear-Governor

$26.99

$

In Stock, only 2 left!

0

220

Cub Cadet BS-691724

Washer (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

222

Cub Cadet BS-793100

Bracket-Control

$45.99

$

Usually ships in 2-12 days

0

227

Cub Cadet BS-794367

Lever-Governor Control

$16.99

$

In Stock, Qty 6

0

238

Cub Cadet BS-691300

Cap-Valve

$9.49

$

In Stock, Qty 9

0

276

Cub Cadet BS-271716

Washer-Sealing

$6.99

$

In Stock, Qty 7

0

281

Cub Cadet BS-793122

Panel-Control

$35.99

$

Usually ships in 2-12 days

0

300

Cub Cadet BS-794728

Muffler
(Superseded to BS-594222)

$86.99

$

In Stock, only 2 left!

0

304

Cub Cadet BS-699598

Housing-Blower

$90.99

$

In Stock, only 4 left!

0

305

Cub Cadet BS-699480

Screw (Blower Housing)
(Superseded to BS-699481)

$3.99

$

In Stock, only 4 left!

0

306

Cub Cadet BS-695710

Shield-Cylinder

$18.99

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-699483

Screw (Cylinder Shield) (M4)

$

$

Not available

307A

Cub Cadet BS-699234

Screw (Cylinder Shield) (M5)

$3.99

$

Usually ships in 2-12 days

0

307B

Cub Cadet BS-790557

Screw (Cylinder Shield) (M4)

$4.99

$

In Stock, only 1 left!

0

309

Cub Cadet BS-793667

Motor-Starter
(Superseded to BS-796238)

$

$

Not available

318

Cub Cadet BS-690370

Screw (Mounting Bracket)

$3.99

$

In Stock, Qty 20+

0

332

Cub Cadet BS-792723

Nut (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Cub Cadet BS-695711

Armature-Magneto
(Superseded to BS-796964)

$55.99

$

In Stock, Qty 9

0

334

Cub Cadet BS-699477

Screw (Magneto Armature)

$3.99

$

Usually ships in 2-12 days

0

337

Cub Cadet 759-3336

Plug-Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

347

Cub Cadet BS-698338

Switch-Rocker
(Superseded to BS-795333)

$13.99

$

In Stock, only 1 left!

0

356

Cub Cadet BS-695630

Wire-Stop

$7.99

$

Usually ships in 2-12 days

0

358

Cub Cadet BS-791797

Gasket Set-Engine

$67.99

$

In Stock, only 2 left!

0

363

Cub Cadet BS-19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

365

Cub Cadet BS-699484

Screw (Carburetor)

$3.99

$

In Stock, only 2 left!

0

383

Cub Cadet BS-19374S

Wrench-Spark Plug
(Superseded to BS-19576S)

$5.99

$

In Stock, only 1 left!

0

455

Cub Cadet BS-692591

Cup-Flywheel
(Superseded to BS-591302)

$11.99

$

Usually ships in 2-12 days

0

456

Cub Cadet BS-692299

Plate-Pawl Friction

$4.99

$

In Stock, only 2 left!

0

459

Cub Cadet BS-281505S

Pawl-Ratchet

$3.49

$

In Stock, Qty 15

0

472

Cub Cadet BS-791948

Knob-Choke Shaft

$7.99

$

Usually ships in 2-12 days

0

474

Cub Cadet BS-793118

Alternator

$102.99

$

Usually ships in 2-12 days

0

493

Cub Cadet BS-695744

Bracket-Mounting

$9.49

$

In Stock, only 1 left!

0

505

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

523

Cub Cadet BS-790546

Dipstick
(Superseded to BS-798468)

$24.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-281370S

Seal-Dipstick Tube

$8.49

$

In Stock, Qty 20+

0

528

Cub Cadet BS-793006

Hose-Primer

$8.49

$

In Stock, only 2 left!

0

552

Cub Cadet BS-692346

Bushing-Governor Crank
(Superseded to BS-231078)

$

$

Not available

562

Cub Cadet BS-691119

Bolt (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

564

Cub Cadet BS-699854

Screw (Control Cover)

$3.99

$

In Stock, Qty 9

0

578

Cub Cadet BS-791956

Wire Assembly

$22.99

$

In Stock, only 1 left!

0

584

Cub Cadet BS-791759

Cover-Breather Passage

$10.99

$

Usually ships in 2-12 days

0

585

Cub Cadet BS-791760

Gasket-Breather Passage

$9.49

$

Usually ships in 2-12 days

0

592

Cub Cadet BS-690800

Nut (Rewind Starter)
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

597

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, Qty 6

0

598

Cub Cadet BS-220624

Shim-End Play

$22.99

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-791850

Hose-Clamp

$3.49

$

In Stock, Qty 20+

0

604

Cub Cadet BS-793134

Cover-Control

$24.99

$

Usually ships in 2-12 days

0

604A

Cub Cadet BS-790473

Cover-Control

$6.99

$

In Stock, only 1 left!

0

608

Cub Cadet BS-699335

Starter-Rewind

$87.99

$

In Stock, Qty 8

0

610

Cub Cadet BS-794614

Arrester-Intake

$

$

Not available

613

Cub Cadet BS-791972

Screw (Muffler)

$4.49

$

In Stock, Qty 7

0

615

Cub Cadet BS-692576

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Cub Cadet BS-692547

Crank-Governor

$9.49

$

Usually ships in 2-12 days

0

619

Cub Cadet BS-699481

Screw (Cylinder Head Plate)

$3.99

$

In Stock, only 4 left!

0

632

Cub Cadet BS-692653

Spring/Link-Mechanical Governor

$8.99

$

Usually ships in 2-12 days

0

633

Cub Cadet BS-691321

Seal-Choke/Throttle Shaft (Throttle Shaft)

Note: Included in Carburetor Overhaul Kit, Ref No. 121

$4.99

$

Usually ships in 2-12 days

0

635

Cub Cadet BS-692927

Boot-Spark Plug
(Superseded to BS-798619)

$6.49

$

In Stock, only 1 left!

0

663

Cub Cadet BS-699854

Screw (Control Panel)

$3.99

$

In Stock, Qty 9

0

682

Cub Cadet BS-698039

Shield-Starter

$8.49

$

Usually ships in 2-12 days

0

684

Cub Cadet BS-791761

Screw (Breather Passage Cover)

$3.99

$

Usually ships in 2-12 days

0

689

Cub Cadet BS-691855

Spring-Friction

$4.49

$

In Stock, only 3 left!

0

692

Cub Cadet BS-690572

Spring-Detent
(Superseded to BS-590931)

$5.49

$

In Stock, Qty 11

0

718

Cub Cadet BS-690959

Pin-Locating (Cylinder)

$6.99

$

In Stock, only 1 left!

0

731

Cub Cadet BS-794589

Hood-Snow

$28.99

$

In Stock, only 4 left!

0

731A

Cub Cadet BS-793643

Hood-Snow

$79.99

$

Usually ships in 2-12 days

0

741

Cub Cadet BS-695087

Gear-Timing

$18.99

$

Usually ships in 2-12 days

0

742

Cub Cadet BS-692564

Retainer-E Ring

$4.49

$

In Stock, only 2 left!

0

746

Cub Cadet BS-790278

Gear-Idler

$17.99

$

Usually ships in 2-12 days

0

830

Cub Cadet BS-694544

Stud-Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

832

Cub Cadet BS-793193

Guard-Muffler

$55.99

$

Usually ships in 2-12 days

0

836

Cub Cadet BS-699854

Screw (Muffler Guard)

$3.99

$

In Stock, Qty 9

0

847

Cub Cadet BS-790545

Dipstick/Tube Assembly
(Superseded to BS-798468)

$24.99

$

Usually ships in 2-12 days

0

851

Cub Cadet BS-493880S

Terminal-Spark Plug

$3.49

$

In Stock, Qty 20+

0

883

Cub Cadet BS-691893

Gasket-Exhaust

Note: Included in Engine Gasket Set, Ref No. 358

$4.49

$

In Stock, Qty 20+

0

892

Cub Cadet BS-791944

Switch-Key

$14.99

$

In Stock, only 1 left!

0

914

Cub Cadet BS-699481

Screw (Rocker Cover) (M6)

$3.99

$

In Stock, only 4 left!

0

914A

Cub Cadet BS-692557

Screw (Rocker Cover) (1/3 Inches Long)

$3.99

$

Usually ships in 2-12 days

0

914B

Cub Cadet BS-697551

Screw (Rocker Cover) (2/3 InchesLong)

$3.49

$

In Stock, Qty 20+

0

957

Cub Cadet BS-795027

Cap-Fuel Tank

$10.99

$

In Stock, Qty 20+

0

972

Cub Cadet BS-694260

Tank-Fuel
(Superseded to BS-799863)

$89.99

$

In Stock, Qty 10

0

975

Cub Cadet BS-790559

Bowl-Float

$16.99

$

Usually ships in 2-12 days

0

976

Cub Cadet BS-793382

Primer-Carburetor

$10.99

$

In Stock, only 3 left!

0

990

Cub Cadet BS-794696

Key Set

$7.49

$

In Stock, Qty 20+

0

993

Cub Cadet BS-694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

996

Cub Cadet BS-794687

Shield-Carburetor

$23.99

$

Usually ships in 2-12 days

0

998

Cub Cadet BS-794701

Pipe-Oil

$13.99

$

Usually ships in 2-12 days

0

1005

Cub Cadet BS-692592

Fan-Flywheel
(Superseded to BS-555778)

$14.99

$

Usually ships in 2-12 days

0

1009

Cub Cadet BS-790537

Screw (Starter Motor)

$

$

Not available

1022

Cub Cadet BS-691890

Gasket-Rocker Cover

Note: Included in Engine Gasket Set, Ref No. 358 &1095

$7.99

$

In Stock, Qty 5

0

1023

Cub Cadet BS-499924

Cover-Rocker

$

$

Not available

1026

Cub Cadet BS-790287

Rod-Push

$11.99

$

In Stock, only 2 left!

0

1029

Cub Cadet BS-691230

Arm-Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Cub Cadet BS-691343

Guide-Push Rod

$9.99

$

In Stock, only 2 left!

0

1036

Cub Cadet N/A

Label-Emissions

$

$

Currently unavailable

1054

Cub Cadet BS-280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1070

Cub Cadet BS-699201

Screw (Flywheel Fan)

$4.49

$

Usually ships in 2-12 days

0

1095

Cub Cadet BS-791798

Gasket Set-Valve

$33.99

$

In Stock, only 1 left!

0

1119

Cub Cadet BS-699772

Screw (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1196

Cub Cadet BS-696692

Screw (Snow Hood)
(Superseded to BS-798785)

$3.99

$

In Stock, Qty 20+

0

1196A

Cub Cadet BS-699854

Screw (Snow Hood)

$3.99

$

In Stock, Qty 9

0

1210

Cub Cadet BS-498144

Pulley/Spring Assembly (Pulley)

$19.99

$

In Stock, Qty 20+

0

1210A

Cub Cadet BS-498144

Pulley/Spring Assembly (Spring)

$19.99

$

In Stock, Qty 20+

0

1230

Cub Cadet BS-699847

Stud (Control Bracket)

$5.99

$

In Stock, only 1 left!

0

1251

Cub Cadet BS-790555

Shield-Snow

$11.99

$

In Stock, only 3 left!

0

1251A

Cub Cadet BS-790556

Shield-Snow

$12.99

$

Usually ships in 2-12 days

0

1252

Cub Cadet BS-699234

Screw (Snow Shield) (M5)

$3.99

$

Usually ships in 2-12 days

0

1252A

Cub Cadet BS-699632

Screw (Snow Shield) (M6)

$3.99

$

Usually ships in 2-12 days

0

1329

Cub Cadet BS-15D1114-0017

Replacement Engine

$

$

Currently unavailable

1347

Cub Cadet BS-699200

Screw (Starter Shield)

$3.99

$

Usually ships in 2-12 days

0

1427

Cub Cadet BS-695757

Cap-Pipe

$6.99

$

Usually ships in 2-12 days

0
