526 WE (31AE6GTS710) - Cub Cadet 26" Snow Thrower (2007) Drive System Parts Diagram

26" Snow Thrower

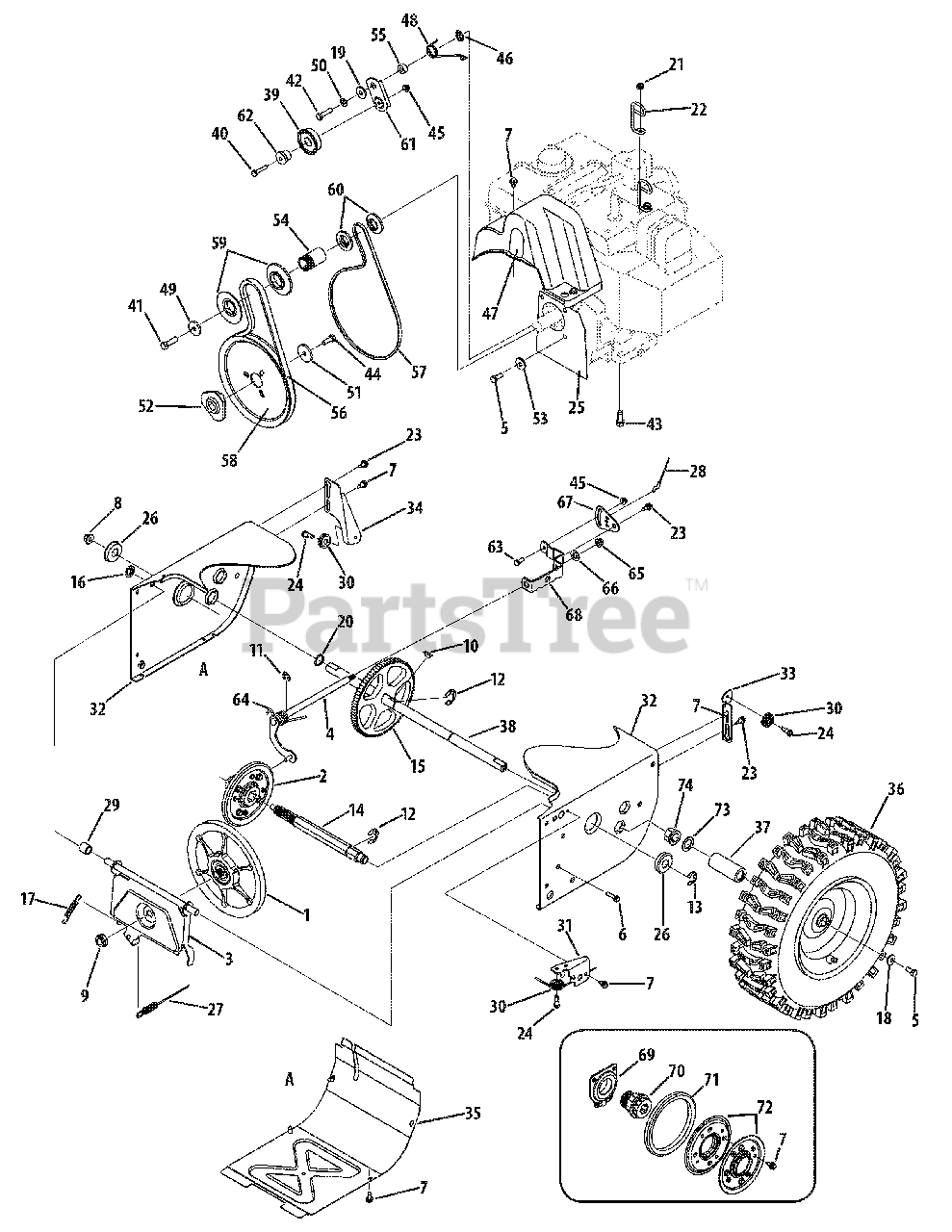

Drive System Parts Diagram

  • Title

1

Cub Cadet 656-04025A

Disc Assembly, Friction Wheel
(Superseded to 656-04055A)

$59.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-04153

Friction Wheel Assembly, 5.5 OD
(Superseded to 684-04153C)

$101.99

$

In Stock, only 3 left!

0

3

Cub Cadet 684-04154

Support Bracket, Friction Wheel
(Superseded to 684-04154B-0637)

Variations

Cub Cadet 684-04154-0637

USE 684-04154B-0637 BRACKET A - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 684-01456A

Shift Assembly, Rod

$

$

Currently unavailable

5

Cub Cadet 710-0627

Hex Screw, 5/16-24, .750, Gr5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0788

Screw, 1/4-20, 1.000

$7.49

$

In Stock, only 4 left!

0

7

Cub Cadet 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0413

Jam Lock Nut

$6.49

$

In Stock, only 1 left!

0

10

Cub Cadet 714-0126

Hi-pro Key

$4.99

$

In Stock, Qty 19

0

11

Cub Cadet 716-0104

E-Ring, .500 Dia
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 15

0

12

Cub Cadet 716-0136

E-Ring, .875 Dia

$8.99

$

In Stock, only 2 left!

0

13

Cub Cadet 716-0231

E-Ring, .750 Dia

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 717-04209A

Hex Shaft, .8125
(Superseded to 917-04209B)

$143.99

$

In Stock, only 1 left!

0

15

Cub Cadet 717-04230

Gear
(Superseded to 917-04230)

$108.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 1 left!

0

17

Cub Cadet 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 748-04112A

Shoulder Spacer
(Superseded to 748-04112B)

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-04161

Flat Washer, .75 x 1.00 x .060

$6.99

$

In Stock, only 1 left!

0

21

Cub Cadet 710-0602

TT Screw, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 732-0705

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 738-04184A

Shoulder Screw, .37 x .105, 1/4-20

$6.99

$

In Stock, Qty 15

0

24

Cub Cadet 738-0924A

Screw, 1/4-28, .375

$6.99

$

In Stock, Qty 5

0

25

Cub Cadet 790-00289A

Cover Plate
(Superseded to 790-00289B-0637)

Variations

Cub Cadet 790-00289A-0637

PLATE-COVER EXPORT - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 741-0563

Ball Bearing, 17 x 40 x 12
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

27

Cub Cadet 746-04229

Wheel Clutch Cable, 44.95''
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

28

Cub Cadet 746-04396

Speed Selector Cable
(Superseded to 946-04396A)

$20.99

$

In Stock, Qty 20+

0

29

Cub Cadet 748-0190

Spacer, .508 ID x .75 OD x 68

$6.49

$

In Stock, only 1 left!

0

30

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

31

Cub Cadet 790-00096

Auger Cable Front Guide Bracket
(Superseded to 790-00096B)

Variations

Cub Cadet 790-00096A-0637

Auger Cable Bracket, Black - POWDER BLACK

$9.49

$

In Stock, only 1 left!

0

$7.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 790-00180A

Frame
(Superseded to 790-00180D)

Variations

Cub Cadet 790-00180C-0637

FRAME-WHL DRV 600 - POWDER BLACK

$160.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0606

FRAME-DRIVE HSG - MAJESTIC ORANGE

$160.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0638

FRAME-DRIVE HSG - MTD/TROY-BILT RED

$160.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0665

FRAME-DRIVE HSG - YARDMAN GREEN

$139.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0691

FRAME-DRIVE HSG - BLACK JACK

$139.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0709

FRAME-DRIVE HSG - MASTERCRAFT GREEN

$139.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-4021

FRAME-DRIVE HSG - CUB YELLOW 2

$139.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-4044

FRAME-DRIVE HSG - CRAFTSMAN RED

$153.99

$

Usually ships in 3-6 days

0

$139.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 790-00206A

Auger Cable Guide Bracket
(Superseded to 790-00206B)

Variations

Cub Cadet 790-00206A-0637

Auger Cable Guide Bracket - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$8.49

$

In Stock, only 1 left!

0

34

Cub Cadet 790-00207A

Drive Cable Guide Bracket
(Superseded to 790-03997)

Variations

Cub Cadet 790-00207A-0637

Clutch Drive Cable - POWDER BLACK (0637)

$5.49

$

In Stock, only 4 left!

0

$5.49

$

In Stock, only 4 left!

0

35

Cub Cadet 790-00316

Frame Cover

Variations

Cub Cadet 790-00316-0637

Frame Snowth Cover - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

Cub Cadet 790-00316-4021

Snowthrower Frame Cover - CUB YELLOW 2 (4021)

$47.99

$

In Stock, only 1 left!

0

Cub Cadet 790-00316-0606

Snowthrower Frame Cover - MAJESTIC ORANGE (0606)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0638

Frame Snowth Cover - MTD/TROY-BILT RED (0638)

$47.99

$

In Stock, only 1 left!

0

Cub Cadet 790-00316-4033

Snowthrower Frame Cover - FLINT MICA (4033)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-4043

COVER-SNWTH FRAME - CRAFTSMAN METALLIC GRAY (4043)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0691

Frame Snowth Cover - BLACK JACK (0691)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0662

COVER-FRAME SNOWTH - OYSTER GRAY (0662)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0665

COVER-FRAME SNOWTH - YARDMAN GREEN (0665)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0667

COVER-FRAME SNOWTH - MIDNIGHT BLUE (0667)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0689

COVER-FRAME SNOWTH - POLO GREEN (0689)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0709

COVER-FRAME SNOWTH - MASTERCRAFT GREEN (0709)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-0729

COVER-FRAME SNOWTH - STORM GRAY (0729)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-4041

CVR-SNWTH FRAME - PURE ORANGE (4041)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-4044

COVER-SNWTH FRAME - CRAFTSMAN RED (4044)

$47.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00316-4062

CVR-SNWTH FRAME - COOL GRAY (4062)

$44.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 634-04146

Wheel Assembly-RH

Variations

Cub Cadet 634-04146-0931

Wheel Assembly, RH X-Tra - Carlisle Beige (0931)

$248.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04146-0911

WHEEL COMP-RH X-TRA - Carlisle Gray (0911)

$267.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04146-0921

WHL COMP-RH X-TRA - Carlisle White (0921)

$267.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04146-0941

WHEEL COMP-RH X-TRA - Carlisle Yellow (0941)

$248.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04146-0961

WHL COMP-RH X-TRA - Carlisle Gray (0961)

$248.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04146-0971

WHEEL COMP-RH X-TRA - Carlisle Yellow (0971)

$233.99

$

Usually ships in 3-6 days

0

$217.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 634-04147A

Whhel Assembly-LH

Variations

Cub Cadet 634-04147A-0911

WHEEL COMP-LH - Carlisle Gray (0911)

$194.99

$

In Stock, only 1 left!

0

Cub Cadet 634-04147A-0931

Wheel Assembly, LH - Carlisle Beige (0931)

$239.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04147A-4028

WHL COMP-LH - SEARS YELLOW (4028)

$194.99

$

In Stock, only 1 left!

0

Cub Cadet 634-04147A-0921

WHEEL COMP-LH - Carlisle White (0921)

$239.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04147A-0941

WHEEL COMP-LH - Carlisle Yellow (0941)

$194.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04147A-0961

WHL COMP-LH - Carlisle Gray (0961)

$222.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04147A-0951

WHEEL COMP-LH - Carlisle Yellow (0951)

$

$

Not available

$193.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-04873

Spacer, 1.25 x .75 x 3.0

$10.99

$

In Stock, only 2 left!

0

38

Cub Cadet 738-04168

Axle, .75 x 22''
(Superseded to 938-04493)

$63.99

$

In Stock, only 1 left!

0

39

Cub Cadet 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0106

Hex Screw, 1/4-20, 1.25

$3.99

$

In Stock, only 2 left!

0

41

Cub Cadet 710-0191

Hex Screw, 3/8-24, 1.25

$4.99

$

In Stock, Qty 8

0

42

Cub Cadet 710-0672

Hex Screw, 5/16-24, 1.253

$4.49

$

In Stock, Qty 19

0

43

Cub Cadet 710-0654A

Sem Screw, 3/8-16, 1.11

$4.49

$

In Stock, only 3 left!

0

44

Cub Cadet 710-1245B

Hex Screw, 5/16-24, .875, Gr8

$8.49

$

In Stock, only 2 left!

0

45

Cub Cadet 712-04064

Flange Lock nut, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 726-04012

Push-on Nut, .25 Dia

$7.49

$

In Stock, Qty 10

0

47

Cub Cadet 731-05353

Belt Cover
(Superseded to 731-05353B)

$

$

Not available

48

Cub Cadet 732-04308A

Torsion Spring, .850 ID x .354
(Superseded to 732-04308C)

$5.49

$

In Stock, only 4 left!

0

49

Cub Cadet 736-0247

Flat Washer, .406 x 1.25 x .157

$9.49

$

In Stock, Qty 16

0

50

Cub Cadet 736-0119

Lock Washer, .3125
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0505

Flat Washer, .34 x 1.50 x .150

$6.49

$

In Stock, only 2 left!

0

52

Cub Cadet 748-04053A

Adapter Pulley, .75 Dia

$22.99

$

In Stock, only 1 left!

0

53

Cub Cadet 748-0234

Shoulder Spacer, .317 x .50 x .102

$4.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 1 left!

0

55

Cub Cadet 750-04477

Spacer, .340 x .750 x .360
(Superseded to 750-04477A)

$5.49

$

In Stock, Qty 5

0

56

Cub Cadet 754-04050

Auger Drive Belt, .500 x 35
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

57

Cub Cadet 754-04088

Wheel Drive Belt, 3/8 x 34.4

$15.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 756-04109

Auger Drive Pulley, 8.1 x .5

$54.99

$

In Stock, only 2 left!

0

59

Cub Cadet 756-04113

Pulley Half, V x 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

60

Cub Cadet 756-04252

Pulley Half, 1/4-V x 1.5 OD

$6.49

$

In Stock, only 1 left!

0

61

Cub Cadet 790-00208B

Wheel Drive Idler Bracket
(Superseded to 790-00208D)

$8.99

$

In Stock, only 1 left!

0

62

Cub Cadet 750-04571

Shoulder Spacer, .26 x .79 x .538

$6.99

$

In Stock, only 3 left!

0

63

Cub Cadet 710-0751

Hex Screw, 1/4-20, .620

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet 732-04311

Torsion Spring, .750 ID x .968
(Superseded to 732-04311A)

$10.99

$

In Stock, only 1 left!

0

65

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 736-3015

Shift Spacer Bracket
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

67

Cub Cadet 790-00217A

Speed Selector Pivot Bracket

Variations

Cub Cadet 790-00217A-0637

Speed Select Shift Bracket - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

$9.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 790-00218A

Speed Selector Shift Bracket

Variations

Cub Cadet 790-00218A-0637

Shift Speed Bracket - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 618-0063A

Bearing Assembly

$92.99

$

Usually ships in 3-6 days

0

70

Cub Cadet N/A

Friction Wheel Hub

Note: use 684-04153

$

$

Currently unavailable

71

Cub Cadet 735-04054

Friction Wheel rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

72

Cub Cadet 790-00174

Friction Wheel Plate
(Superseded to 790-00174C)

$14.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 736-0287

Flat Washer

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0
