526 WE (31AE6GTS710) - Cub Cadet 26" Snow Thrower (2006) Handle Assembly Parts Diagram

26" Snow Thrower

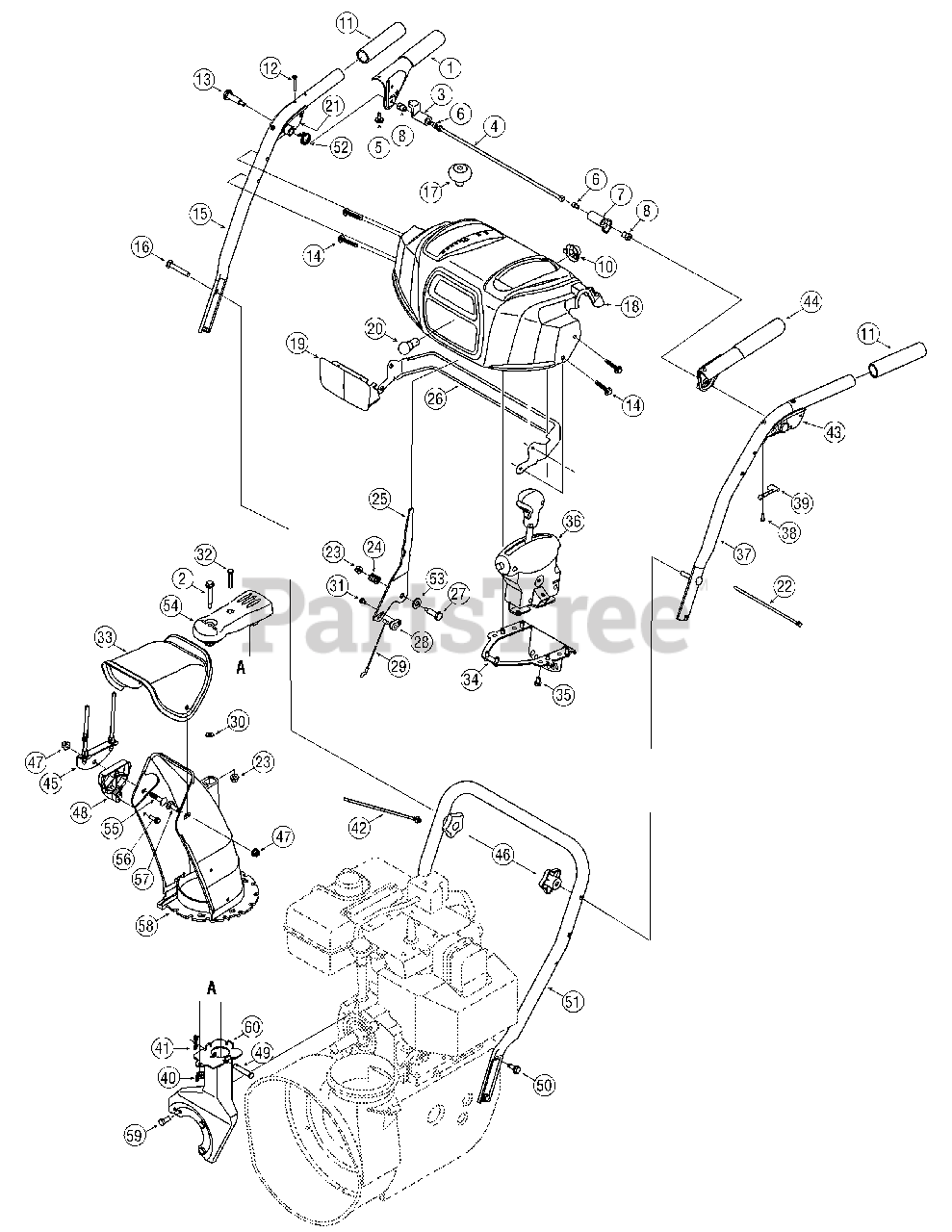

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 684-04106B

Handle Engagement Assembly RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

2

Cub Cadet 738-04194

Flange Shoulder Screw

$6.49

$

In Stock, only 2 left!

0

3

Cub Cadet 731-04894B

Lock Plate
(Superseded to 731-04894D)

$5.49

$

In Stock, only 1 left!

0

4

Cub Cadet 711-04287

Pivot Rod
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

5

Cub Cadet 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-04354

Screw, 1/4-20 x.375

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet 731-04896A

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 9

0

9

Cub Cadet 725-04314

Wire Harness (Not Shown)

$

$

Not available

10

Cub Cadet 725-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

11

Cub Cadet 720-0274

Handle Grip

$11.99

$

In Stock, only 2 left!

0

12

Cub Cadet 710-1233

Screw, #10-24 x 0.375

$4.99

$

In Stock, Qty 11

0

13

Cub Cadet 738-04122

Shoulder Screw, 1/4-20 x 1.345
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 749-04190

Upper Handle RH
(Superseded to 749-04190A)

Variations

Cub Cadet 749-04190-0637

Right Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04190-0638

Right Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0449

Carriage Screw, 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

18

Cub Cadet 931-05335

Handle Panel (Includes Ref. #19)
(Superseded to 931-04187A)

$71.99

$

In Stock, only 1 left!

0

19

Cub Cadet 731-05324

Lens

$14.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 725-04213

Lamp
(Superseded to 925-04213)

$4.99

$

In Stock, only 1 left!

0

21

Cub Cadet 631-04134A

Handle Clutch Lock RH Assy
(Superseded to 631-04134B)

$15.99

$

In Stock, only 1 left!

0

22

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

23

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

25

Cub Cadet 790-00203

Shift Lever
(Superseded to 790-00203-0637)

Variations

Cub Cadet 790-00203-0637

Shift Lever - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 790-00248

Panel Bracket
(Superseded to 790-00248E-0637)

Variations

Cub Cadet 790-00248-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

27

Cub Cadet 738-04125

Shoulder Screw

$4.99

$

In Stock, only 3 left!

0

28

Cub Cadet 746-0605

Cable Barrel Holder
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 5

0

29

Cub Cadet 746-04227A

Speed Selector Cable

$22.99

$

In Stock, only 4 left!

0

30

Cub Cadet 736-0463

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 710-0224

Screw, #10-16 x .500
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

32

Cub Cadet 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 9

0

33

Cub Cadet 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

34

Cub Cadet 790-00155

Joystick Bracket
(Superseded to 790-00155A-0637)

Variations

Cub Cadet 790-00155A-0637

BRACKET-JOYSTICK MTG - POWDER BLACK

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

36

Cub Cadet 984-04116B

4-Way Chute Control Assembly
(Superseded to 753-08388A)

$304.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 749-04191

Upper Handle LH
(Superseded to 749-04191A)

Variations

Cub Cadet 749-04191-0638

Left Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04191-0637

Left Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

39

Cub Cadet 732-04219A

Clutch Lock Spring
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

42

Cub Cadet 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 631-04133

Handle Clutch Lock LH Assy
(Superseded to 631-04133A)

$15.99

$

In Stock, only 1 left!

0

44

Cub Cadet 684-04105A

Handle Engagement Assembly LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

45

Cub Cadet 784-5594

Cable Bracket

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

47

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

49

Cub Cadet 711-04469A

Clevis Pin

$5.99

$

In Stock, only 4 left!

0

50

Cub Cadet 710-1260A

Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 749-04138

Lower Handle
(Superseded to 749-04138A)

Variations

Cub Cadet 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

53

Cub Cadet 736-0262

Flat Washer

$3.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 731-04890A

Joystick Pulley Cover
(Superseded to 753-04875P)

$114.99

$

In Stock, Qty 5

0

55

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

56

Cub Cadet 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

57

Cub Cadet 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 15

0

58

Cub Cadet 731-04861A

Lower Chute
(Superseded to 731-04861B)

$43.99

$

In Stock, only 1 left!

0

59

Cub Cadet 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 684-04162

Chute Support Bracket
(Superseded to 684-04162B-0637)

Variations

Cub Cadet 684-04162-0637

USE 684-04162A-0637 BRACKET A - POWDER BLACK (0637)

$

$

Not available

$

$
