526 SWE (31BH54TS710) - Cub Cadet 26" Snow Thrower (2011) 478-SUA Cylinder Head Parts Diagram

26" Snow Thrower

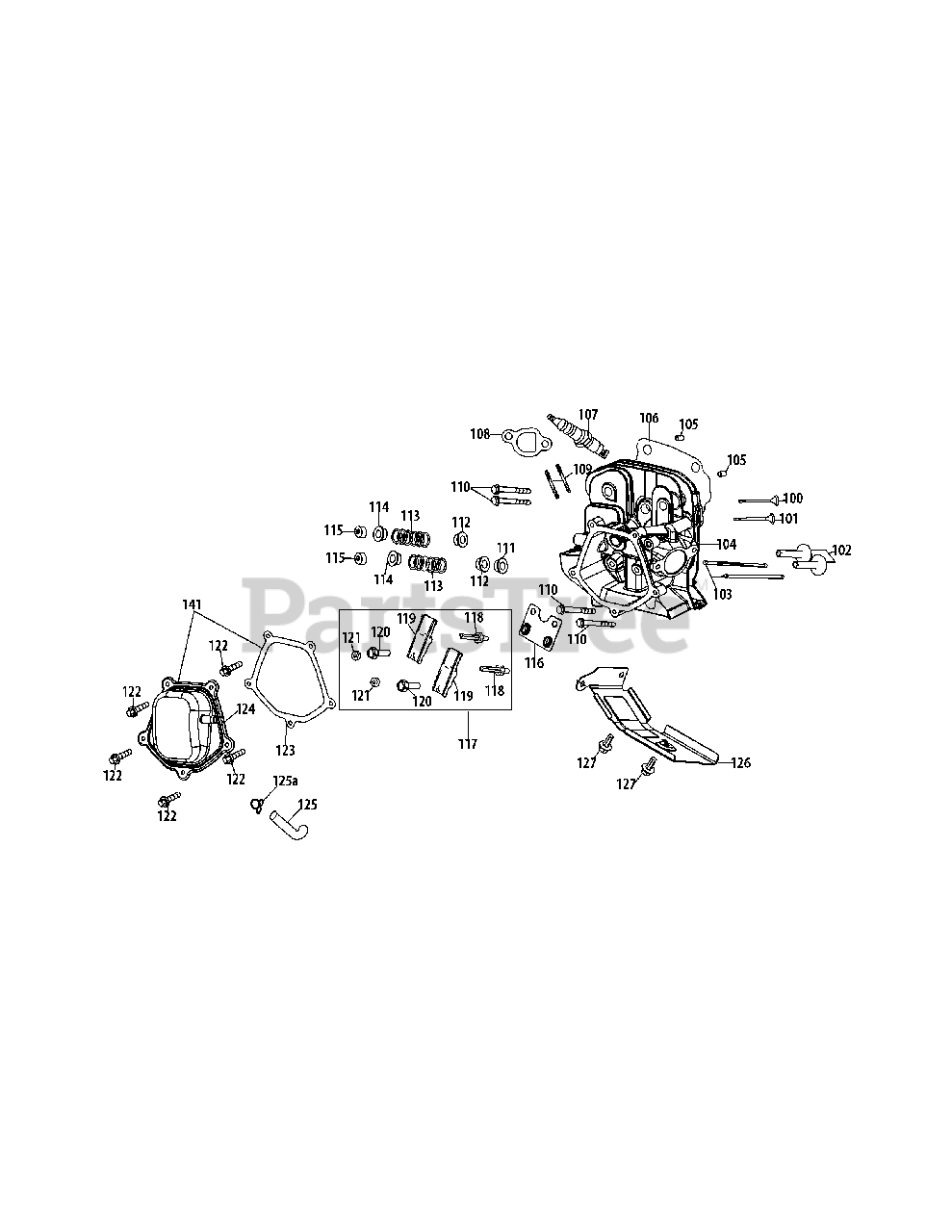

478-SUA Cylinder Head Parts Diagram

  • Title

100

Cub Cadet 951-11198

Valve Kit

$48.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 951-11198

Valve Kit

$48.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 951-11962

Tappet
(Superseded to 951-11962A)

$6.99

$

In Stock, only 1 left!

0

103

Cub Cadet 951-11199

Push Rod Kit

$13.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 951-11226

Cylinder Head Kit

Note: (Incl.106,110,111,123)

$37.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 715-04097

Dowel Pin 12×20

$6.49

$

Usually ships in 3-6 days

0

106

Cub Cadet 951-12076

Gasket, Cylinder Head

$12.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

108

Cub Cadet 951-11212

Exhaust Pipe Gasket
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

109

Cub Cadet 710-04964

Stud M8×48.5

$6.49

$

In Stock, only 1 left!

0

109

Cub Cadet 951-11207

Muffler Stud Assembly

$8.49

$

Usually ships in 3-6 days

0

110

Cub Cadet 710-04973

Bolt M10×1.25×80
(Superseded to 710-04965)

$6.99

$

In Stock, only 1 left!

0

111

Cub Cadet 951-11964

Intake Valve Seal
(Superseded to 951-11964A)

$11.99

$

Usually ships in 3-6 days

0

112

Cub Cadet 951-12077

Valve Spring Retainer
(Superseded to 951-12077A)

$3.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-12078

Valve Spring

$3.99

$

Usually ships in 3-6 days

0

114

Cub Cadet 951-12080

Retainer, Ex. Valve Spring

$4.49

$

In Stock, Qty 20+

0

115

Cub Cadet 951-12081

Adjuster, Ex. Valve
(Superseded to 951-12269)

$6.49

$

In Stock, Qty 6

0

116

Cub Cadet 951-11965

Push Rod Guide
(Superseded to 951-11965B)

$6.99

$

Usually ships in 3-6 days

0

117

Cub Cadet 951-11981

Rocker Arm Assembly
(Superseded to 951-11981A)

$40.99

$

Usually ships in 3-6 days

0

118

Cub Cadet 710-04962

Bolt, Pivot

$6.49

$

In Stock, only 1 left!

0

119

Cub Cadet 951-11966

Rocker Arm

$8.49

$

In Stock, only 3 left!

0

120

Cub Cadet 751-11123

Adjusting Nut ,Valve

$10.99

$

In Stock, only 4 left!

0

121

Cub Cadet 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

122

Cub Cadet 710-05054

Valve Cover Bolt

$6.49

$

In Stock, only 2 left!

0

123

Cub Cadet 951-11967

Valve Cover Gasket

$16.99

$

Usually ships in 3-6 days

0

124

Cub Cadet 951-11220

Valve Cover

$35.99

$

Usually ships in 3-6 days

0

125

Cub Cadet 951-11221

Breather Hose

$6.99

$

In Stock, only 1 left!

0

125a

Cub Cadet 726-04101

Clamp, Breather Hose

$4.49

$

In Stock, only 1 left!

0

126

Cub Cadet 951-11180

Cylinder Baffle

$24.99

$

Usually ships in 3-6 days

0

127

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, only 3 left!

0

141

Cub Cadet 951-11333

Valve Cover Kit

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11210

Gasket Kit - External

Note: Not shown (Incl.79,108,123,129-131)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11209

Gasket Kit - Complete

Note: Not shown (Incl.53,60,65,79,81,106,108,123,129-131)

$72.99

$

Usually ships in 3-6 days

0

Cub Cadet 951-11188

Cylinder Head Ass'y

Note: Not shown (Incl.100,101,104,106,108-116,118-121,123,128-130)

$338.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z478-SU

Complete Engine
(Superseded to 952Z678-SUA)

Note: Not shown

$1375.99

$

Usually ships in 3-6 days

0
