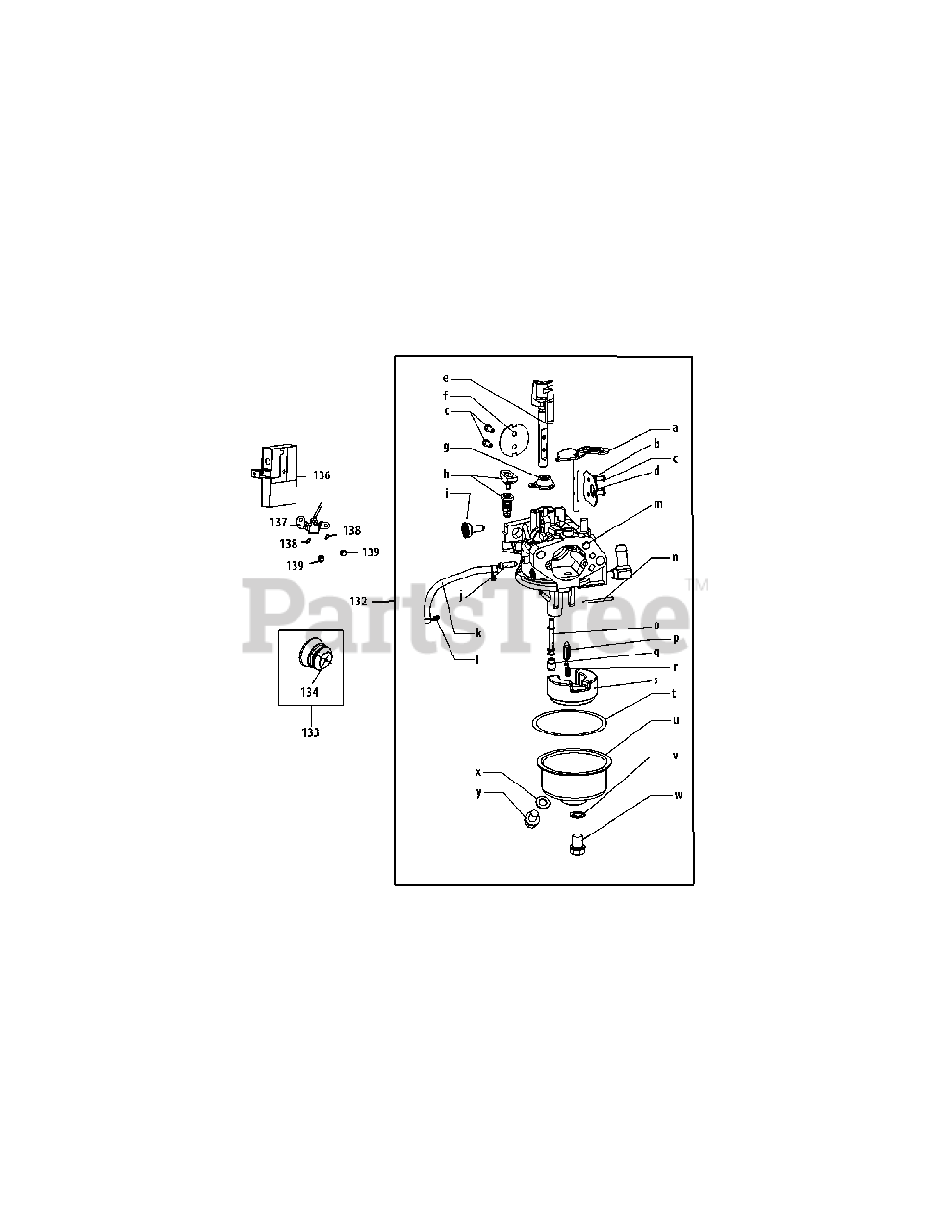

526 SWE (31AH54TS710) - Cub Cadet 26" Snow Thrower (2010) Engine 478-SU-10-Carburetor Assembly Parts Diagram

26" Snow Thrower

Engine 478-SU-10-Carburetor Assembly Parts Diagram

  • Title

132

Cub Cadet 951-11193A

Carburetor Assembly
(Superseded to 951-14024A)

$113.99

$

Usually ships in 3-6 days

0

133

Cub Cadet 951-10639A

Primer Assembly

$15.99

$

In Stock, Qty 20+

0

134

Cub Cadet 951-11824

Primer Bulb

$11.99

$

In Stock, only 2 left!

0

a

Choke Shaft

$

$

Not available

b

Lock Washer

$

$

Not available

c

Screw M3×5

$

$

Not available

d

Choke Plate

$

$

Not available

e

Throttle Shaft

$

$

Not available

f

Throttle Plate

$

$

Not available

g

Lock Plate

$

$

Not available

h

Idle Jet Assembly

$

$

Not available

i

Idle Speed Adjusting Screw

$

$

Not available

j

Mixture Screw

$

$

Not available

k

Cub Cadet 751-12082

Primer Hose

$6.49

$

In Stock, only 1 left!

0

l

Hose Clamp

$

$

Not available

m

Carburetor Body

$

$

Not available

n

Float Pin

$

$

Not available

o

Emulsion Tube

$

$

Not available

p

Needle Valve

$

$

Not available

q

Main Jet

$

$

Not available

r

Needle Valve Spring

$

$

Not available

s

Float

$

$

Not available

t

Cub Cadet 751-11970

Fuel Bowl Gasket
(Superseded to 951-11970)

$6.99

$

In Stock, Qty 17

0

u

Fuel Bowl

$

$

Not available

v

Cub Cadet 751-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

w

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

x

Cub Cadet 751-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

y

Cub Cadet 710-04903

Fuel Drain Plug
(Superseded to 710-04938)

$4.49

$

In Stock, Qty 10

0

Cub Cadet 951-11219

Carburetor Repair Kit - Major
(Superseded to 951-12762A)

Note: (Incl. Ref No. g,n,o,p,q,r,s,t,v & x) Not shown

$54.99

$

Usually ships in 3-6 days

0
