52588 - Gravely Idler Update Kit for GEM Tractor UPDATE KIT GEM Parts Diagram

Idler Update Kit for GEM Tractor

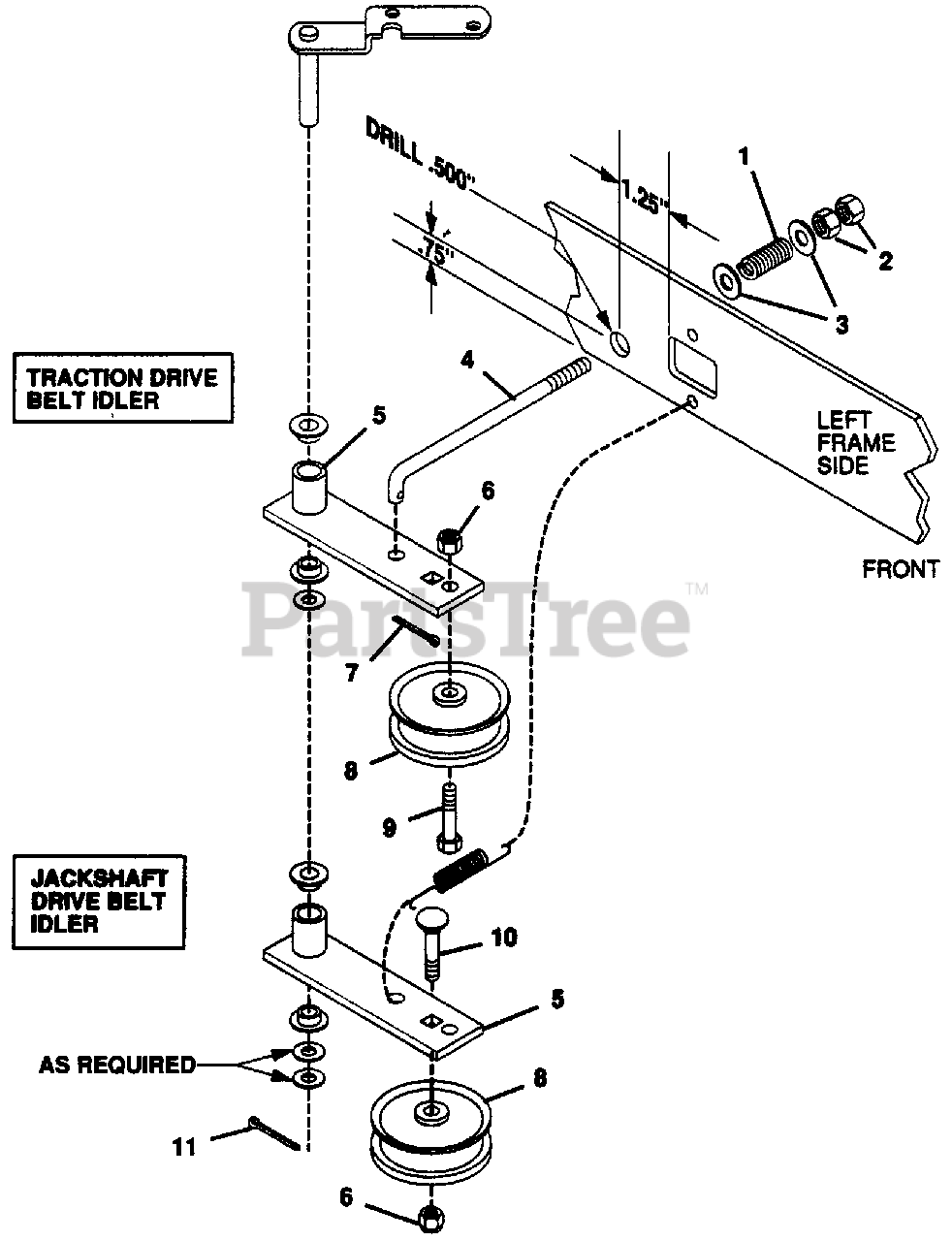

UPDATE KIT GEM Parts Diagram

  • Title
1

Gravely 011779

Spring, Comp. 1X.78X338 Lb/In
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

2

Gravely 120377

Nut, Hex 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 051276

Rod, Idler
(Superseded to 03491700)

$

$

Not available

5

Gravely 052570

Weldment, Idler Arm
(Superseded to 03490100)

$

$

Not available

6

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

7

Gravely 121224

Pin, Cotter .094x1.00

$0.99

$

Usually ships in 4-12 days

0

8

Gravely 035851

Idler
(Superseded to 07311100)

$39.99

$

In Stock, only 3 left!

0

9

Gravely 180128

Bolt, Hex 3/8-16x1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 126416

Bolt, 3/8-16x1.75 Rd.Hd.Sq.Nk.
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 120123

Pin, Cotter .125x1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0
