525607x692B - Stanley 52" Lawn Tractor (2002) Steering Assembly Parts Diagram

52" Lawn Tractor

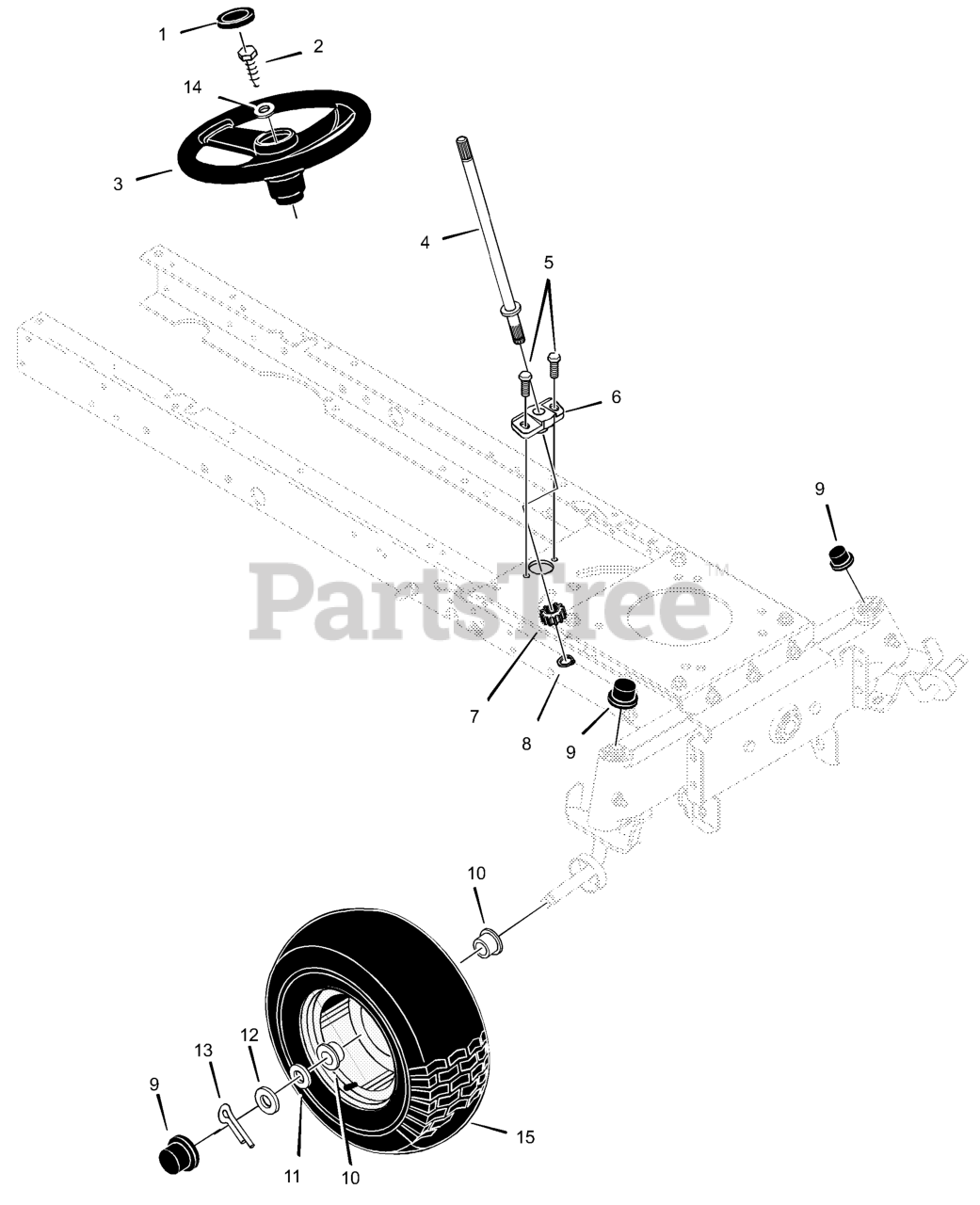

Steering Assembly Parts Diagram

  • Title

$

$

Not available

2

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

3

Murray 1001226MA

Wheel, Steering

$98.99

$

Usually ships in 2-12 days

0

4

Murray 690625

Shaft, Steering

$49.99

$

In Stock, only 1 left!

0

5

$4.99

$

In Stock, Qty 20+

0

6

Murray 094124MA

Bearing

Note: (Included with Ref. No. 4)

$14.99

$

In Stock, only 1 left!

0

7

Murray 690183MA

Gear, Pinion

Note: (Included with Ref. No. 4)

$

$

Not available

8

Murray 011X25MA

Ring, Snap

Note: (Included with Ref. No. 4)

$4.49

$

In Stock, Qty 5

0

$5.99

$

In Stock, only 4 left!

0

10

Murray 091334

Bearing, Wheel

$

$

Not available

11

$4.99

$

In Stock, Qty 5

0

12

$4.99

$

In Stock, Qty 15

0

13

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

14

$5.49

$

Usually ships in 2-12 days

0

15

Murray 094755601

Wheel & Tire, Front

$120.99

$

Usually ships in 2-12 days

0

--

$91.99

$

Usually ships in 2-12 days

0

--

$

$

Not available

--

Murray 024373MA

Stem, Valve

$

$

Not available
