525607x692B - Stanley 52" Lawn Tractor (2002) Frame Assembly Parts Diagram

52" Lawn Tractor

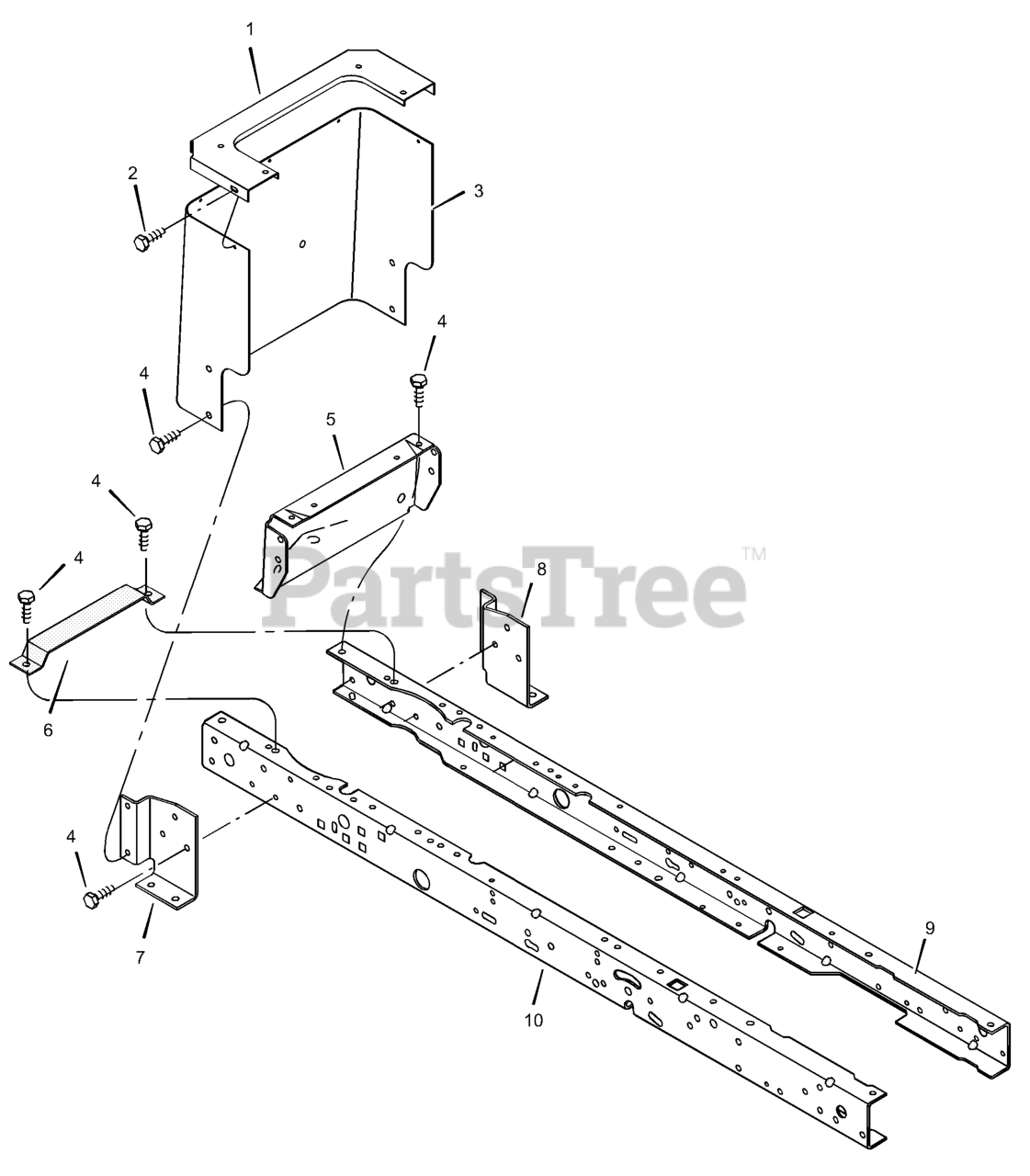

Frame Assembly Parts Diagram

  • Title
1

Murray 094186E700

Plate, Top Rear

$

$

Currently unavailable

2

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

3

Murray 690218E700

Plate, Rear

$

$

Not available

4

$

$

Not available

5

Murray 1001002E701

Plate, Hitch

$

$

Not available

6

Murray 690482E700

Bracket, Support

$

$

Currently unavailable

7

Murray 094184E700

Bracket, Right Transaxle

$

$

Currently unavailable

8

Murray 094185E700

Bracket, Left Transaxle

$

$

Currently unavailable

9

Murray 1001269E700

Frame, Left

$

$

Currently unavailable

10

Murray 1001268E700

Frame, Right

$

$

Currently unavailable
