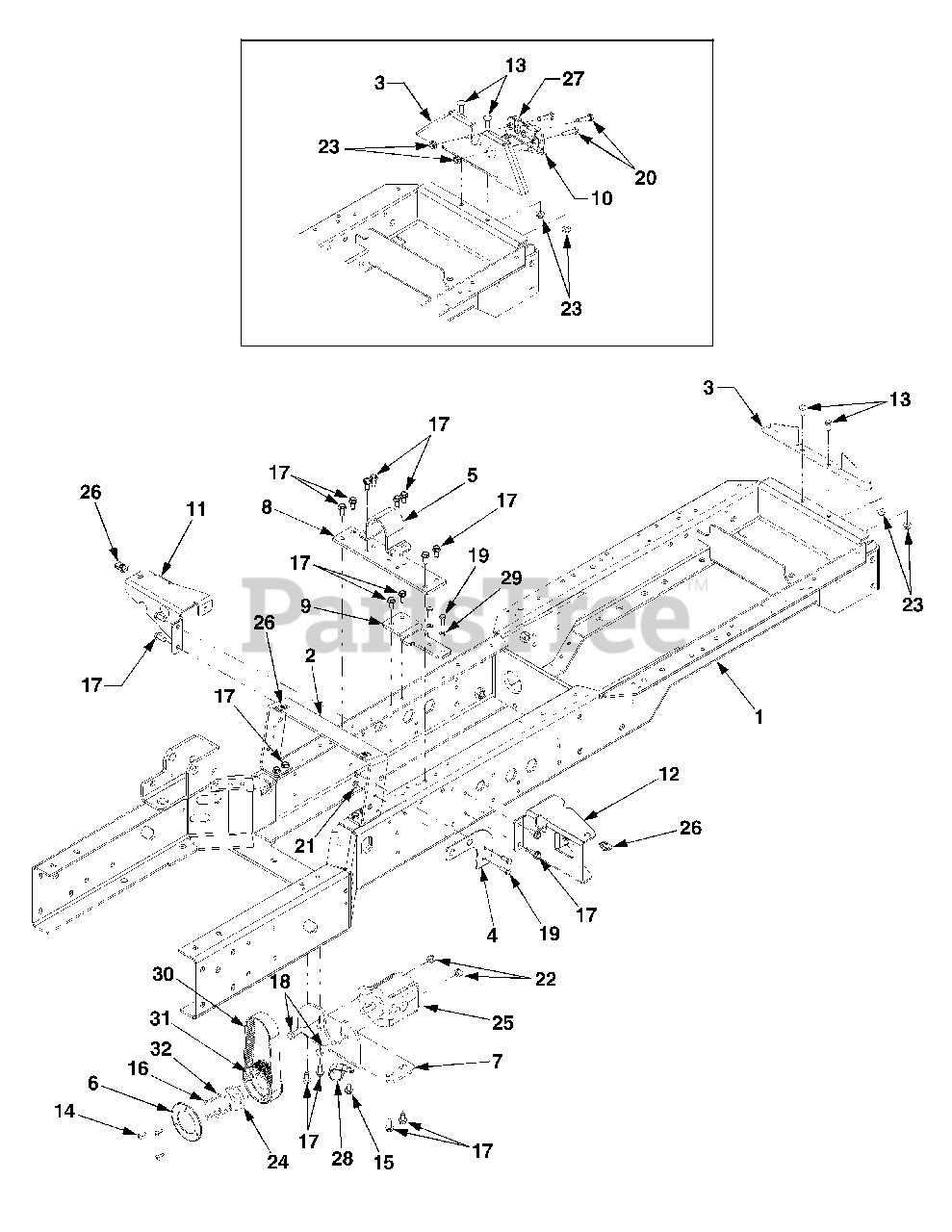

5254 L (54BL542-710) - Cub Cadet Compact Tractor Frame Parts Diagram

Compact Tractor

Frame Parts Diagram

  • Title

1

Cub Cadet 603-0961A-0637

Frame

$

$

Not available

2

Cub Cadet 703-05031-0637

Bracket, Front Seat Mount

$

$

Not available

3

Cub Cadet 703-05137A

Bracket, Hood Latch Mtg. — Mfg. Code 1C315G and before

Variations

Cub Cadet 703-05137A-0637

BRACKET-HOOD LATCH - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 703-05782

Bracket, Hood Latch — Mfg. Code 1D015G and After

Variations

Cub Cadet 703-05782-0637

USE 703-05782 BRACKET-HOOD LA - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-05714-0637

Bracket, Fitting Mtg.

$

$

Not available

5

Cub Cadet 703-05737-0637

Shield, Drive Shaft

$

$

Not available

6

Cub Cadet 703-05741

Keeper, Belt

$

$

Not available

7

Cub Cadet 703-05743-0637

Bracket, Aux. Pump Mtg.

$

$

Not available

8

Cub Cadet 703-05748-0637

Shield Lower Drive Shaft

$

$

Not available

9

Cub Cadet 703-05771A-0637

Plate, Filter Mounting

$

$

Not available

10

Cub Cadet 703-3503A

Lever, Hood Latch — Mfg. Code 1C315G and before

$

$

Not available

11

Cub Cadet 703-4124A-0637

Bracket, Running Board Mtg.

$

$

Not available

12

Cub Cadet 703-4125A-0637

Bracket, Running Board Mtg.

$

$

Not available

13

Cub Cadet 710-0276

Screw, Carriage, 5/16-18 x 1.0 — Mfg. Code 1C315G and before

$3.99

$

In Stock, Qty 11

0

Cub Cadet 710-3025

Screw, Hex Cap, 5/16-18 x .625 GR5 — Mfg. Code 1D015G and After

$3.99

$

In Stock, Qty 8

0

14

Cub Cadet 710-0473

Screw, Truss Hd. Mach. #10-24 x .5

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 710-0607

Screw, Hex Wash. Hd Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

16

Cub Cadet 710-1194

Screw, Hex Mach. #10-24 x 1.0 GR5

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 9

0

19

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3083

Screw, Hex Cap, 5/16-18 x 1.375 GR5 — Mfg. Code 1C315G and before

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-04064

Nut, Hex Nylon Flange Lock, 1/4-20 GRF

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3000

Nut, Hex Lock, 3/8-20 GrB

$4.49

$

In Stock, Qty 9

0

23

Cub Cadet 712-04063

Nut, Hex Flange Insert Lock, 5/16- 16 GrF (Replaces 712-3004A) (5)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 718-04129

Bushing, Tapered
(Superseded to 718-04129P)

$

$

Not available

25

Cub Cadet 718-04130

Pump, Aux. Hydraulic
(Superseded to 918-04130)

$

$

Not available

26

Cub Cadet 726-0211

Nut, U Speed, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 726-0455

Latch, Hood — Mfg. Code 1C315G and before

$

$

Not available

28

Cub Cadet 726-0475

Clamp

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-0329

Washer,Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

Cub Cadet 754-04086

Belt, HTS, 5 x 25 x 500
(Superseded to 954-04086)

$67.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 756-04176

Pulley, 52T Cog
(Superseded to 956-04176)

$

$

Not available

32

Cub Cadet 736-0722

Washer, Lock, #10

$6.99

$

Usually ships in 3-6 days

0
