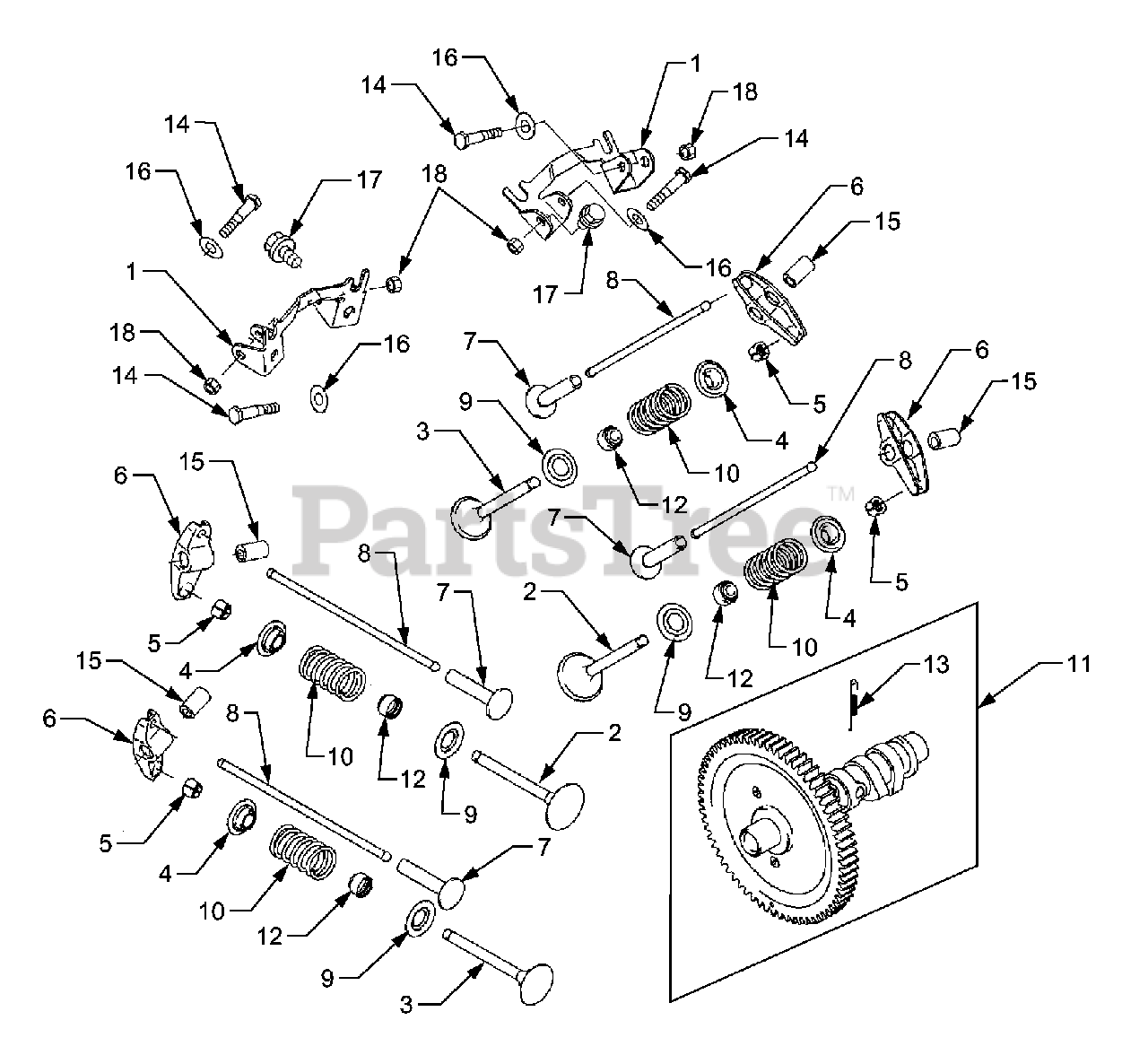

5254 E (54CE542-710) - Cub Cadet Compact Tractor Valves And Camshaft Parts Diagram

Compact Tractor

Valves And Camshaft Parts Diagram

  • Title

1

Cub Cadet KM-11051-2092

Bracket

$9.49

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-12004-2113

Valve, Intake

$31.99

$

In Stock, only 2 left!

0

3

Cub Cadet KM-12005-2100

Valve, Exhaust

$41.99

$

In Stock, only 2 left!

0

4

Cub Cadet KM-12009-2060

Retainer, Valve Spring

$5.99

$

In Stock, Qty 6

0

5

Cub Cadet KM-12011-2052

Collet

$2.99

$

In Stock, Qty 5

0

6

Cub Cadet KM-12016-2063

Arm, Rocker
(Superseded to KM-12016-6005)

$12.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-12032-2060

Tappet

$17.99

$

In Stock, only 2 left!

0

8

Cub Cadet KM-13116-2074

Rod, Push

$13.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-16007-2052

Seat, Spring

$1.49

$

In Stock, Qty 7

0

10

Cub Cadet KM-49078-2060

Spring, Valve

$4.99

$

In Stock, Qty 11

0

11

Cub Cadet KM-49118-2138

Camshaft

$218.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-92049-2100

Seal, Oil

$5.49

$

In Stock, only 3 left!

0

13

Cub Cadet KM-92145-2085

Spring

$2.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92151-2165

Bolt, M6

$3.99

$

In Stock, only 1 left!

0

15

Cub Cadet KM-92152-2077

Collar

$2.49

$

In Stock, only 1 left!

0

16

Cub Cadet KM-92200-2128

Washer, 8.1 x 18 x .5
(Superseded to KM-92200-2151)

$1.49

$

In Stock, Qty 8

0

17

Cub Cadet KM-130G0814

Bolt, Flanged
(Superseded to KM-130BA0814)

$

$

Not available

18

Cub Cadet KM-311B0600

Nut, Hex
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 16

0
