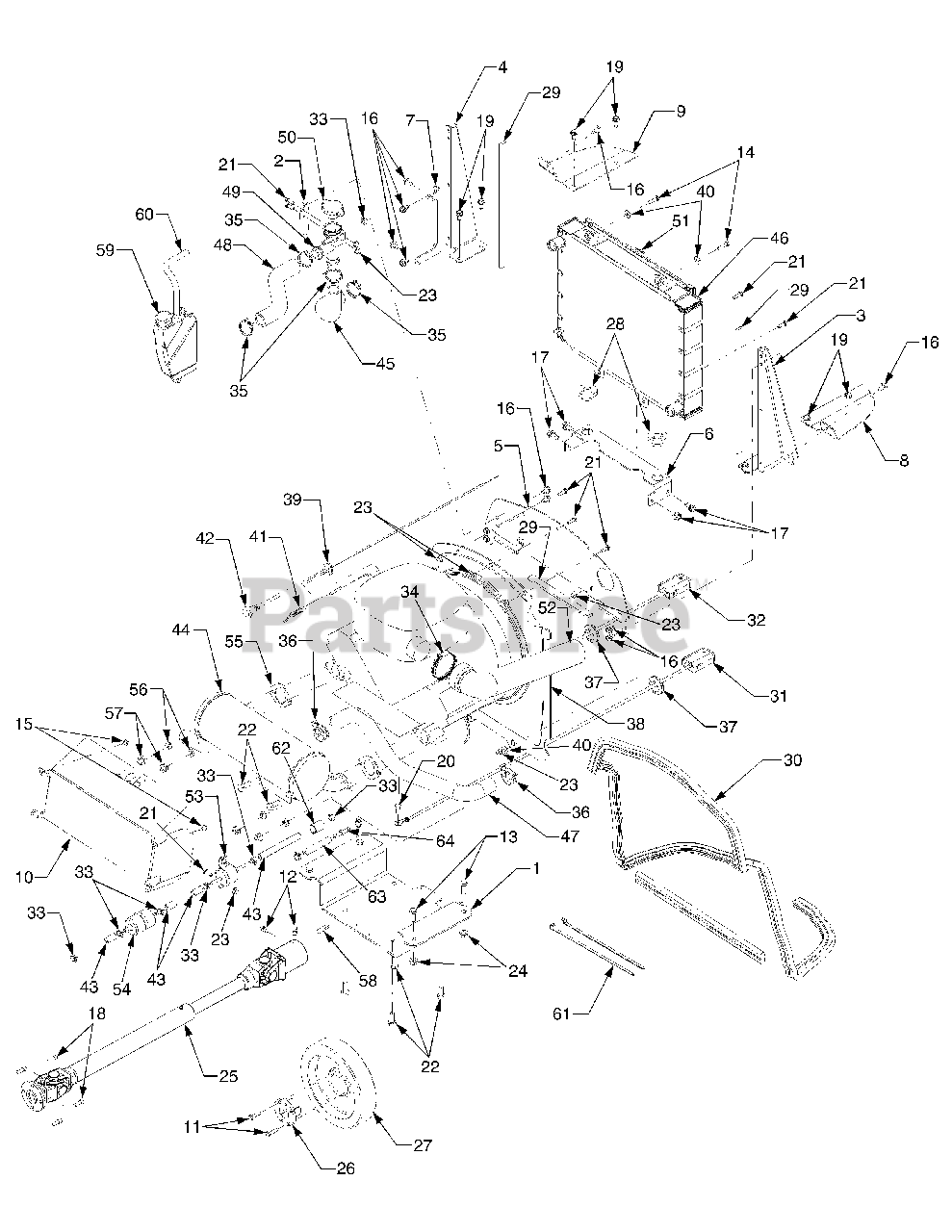

5254 E (54CE542-710) - Cub Cadet Compact Tractor Engine And Drive Shaft 1B075G & After Parts Diagram

Compact Tractor

Engine And Drive Shaft 1B075G & After Parts Diagram

  • Title

Cub Cadet 629-04131

Harness, Engine

$

$

Not available

1

Cub Cadet 703-3521B

Plate, Engine Mtg.
(Superseded to 703-3521B-0637)

Variations

Cub Cadet 703-3521B-0637

PLATE-ENGINE MTG - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 703-3684

Bracket, Filler Neck

$

$

Not available

3

Cub Cadet 703-3688

Bracket, Radiator Mtg. RH

$

$

Not available

Cub Cadet 777S30632

Graphic, Warning

$

$

Not available

4

Cub Cadet 703-3689

Bracket, Radiator Mtg. LH .

$

$

Not available

Cub Cadet 777S30632

Graphic, Warning

$

$

Not available

5

Cub Cadet 703-3691

Plate, Radiator Baffle

$

$

Not available

Cub Cadet 777S30631

Graphic, Fan Warning

$

$

Not available

Cub Cadet 777S30633

Graphic, Warning

$

$

Not available

6

Cub Cadet 703-3692

Bracket, Radiator Mtg.

$

$

Not available

7

Cub Cadet 703-3722

Bracket, Ovrflw Bottle Mtg.

$

$

Not available

8

Cub Cadet 703-05140B

Plate, Baffle RH

Variations

Cub Cadet 703-05140B-0637

BAFFLE PLATE (LH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-05141B

Plate, Baffle LH

Variations

Cub Cadet 703-05141B-0637

BAFFLE PLATE (RH) (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 703-4063B

Shield, Heat

$

$

Not available

11

Cub Cadet 710-0299

Screw, Hex Cap, 1/4-28 x 1.0 GR5

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0357

Screw, Square Hd. Set, 3/8-16

$

$

Not available

13

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 GR5

$3.99

$

In Stock, Qty 14

0

15

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

17

Cub Cadet 710-0623

Screw, Hex Wash Hd Tapp 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 710-3218

Screw, Socket Hd Cap, 1/4-20 x .62 GR8

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-1376

Screw, Hex Cap, M8-20 x 16 GR8.8

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3208

Screw, Hex Cap, M10 x 1.5 x 25 GR5

$3.99

$

In Stock, only 4 left!

0

23

Cub Cadet 712-04064

Nut, Hex Insert Flange Lock 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04065

Nut, Hx Insert Flange Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 717-04112

Shaft, Drive
(Superseded to 917-04112)

$699.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 718-04068

Bushing, D Type
(Superseded to 918-04068)

$

$

Not available

27

Cub Cadet 718-04069

Flywheel
(Superseded to 918-04069)

$

$

Not available

28

Cub Cadet 722-0268

Grommet, Rubber

$

$

Not available

29

Cub Cadet 722-3022

Tape, Foam, .625 wide 42in.
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 723-3061

Seal, Heat Baffle 103in.

$2.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 725-3282

Wire, Battery Neg.

$

$

Not available

32

Cub Cadet 725-3289

Wire, Battery Pos.

$

$

Not available

33

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

34

Cub Cadet 726-0476

Clamp, Hose - Adjustable .

$12.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 726-0480

Clamp, Hose

$

$

Not available

36

Cub Cadet 726-04026

Clamp, Hose

$

$

Not available

37

Cub Cadet 731-04018

Grommet

$

$

Not available

38

Cub Cadet 731-3364

Shroud, Fan
(Superseded to 931-3364)

$

$

Not available

39

Cub Cadet 735-0226

Grommet

$10.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-0173

Washer, Flat,. 28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 746-3086A

Cable, Throttle

$

$

Not available

42

Cub Cadet 746-04015

Cable, Choke Control

$53.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 751-3130

Fuel Line 5/16 ID 92in.

$32.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 751-3166

Muffler

$

$

Not available

45

Cub Cadet 751-3177

Hose, Filler to Radiator

$31.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 751-3185

Radiator

$

$

Not available

47

Cub Cadet 751-3187

Hose, Lower Radiator

$

$

Not available

48

Cub Cadet 751-3189B

Hose, Engine to Filler Neck

$

$

Not available

49

Cub Cadet 751-3190

Filler Neck, Remote Radiator

$

$

Not available

50

Cub Cadet 751-3192

Cap, Remote Filler
(Superseded to 759-04129)

$50.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 751-3193

Screen, Radiator

$

$

Not available

52

Cub Cadet 751-3186

Hose, Intake Air
(Superseded to 751-3203)

$

$

Not available

53

Cub Cadet KM-49040-2065

Pump, Fuel

$182.99

$

In Stock, Qty 6

0

54

Cub Cadet KM-49019-1055

Filter, Fuel
(Superseded to KM-49019-0032)

$25.99

$

In Stock, Qty 20+

0

55

Cub Cadet KM-11060-2467

Gasket, Exhaust

$6.49

$

In Stock, Qty 20+

0

56

Cub Cadet KM-461F0800

Washer, Spring
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0

57

Cub Cadet KM-317R0800

Nut, Hex

$2.99

$

In Stock, Qty 16

0

58

Cub Cadet KM-92038-2101

Key, Crankshaft

$4.99

$

Usually ships in 2-5 days

0

59

Cub Cadet KM-43078-2055

Bottle, Over Flow

$47.99

$

In Stock, Qty 14

0

60

Cub Cadet KM-39062-2086

Tube

$7.49

$

Usually ships in 2-5 days

0

61

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

62

Cub Cadet 751-10054

Sleeve, Fuel Line Reflective

$78.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 751-0535

Fuel Line, 1/4 Return 65in.

$

$

Currently unavailable

64

Cub Cadet 751-10221

Fitting, Fuel Restrictor: 2mm

$13.99

$

Usually ships in 3-6 days

0
