5254 E (54CE542-710) - Cub Cadet Compact Tractor Deck Lift Parts Diagram

Compact Tractor

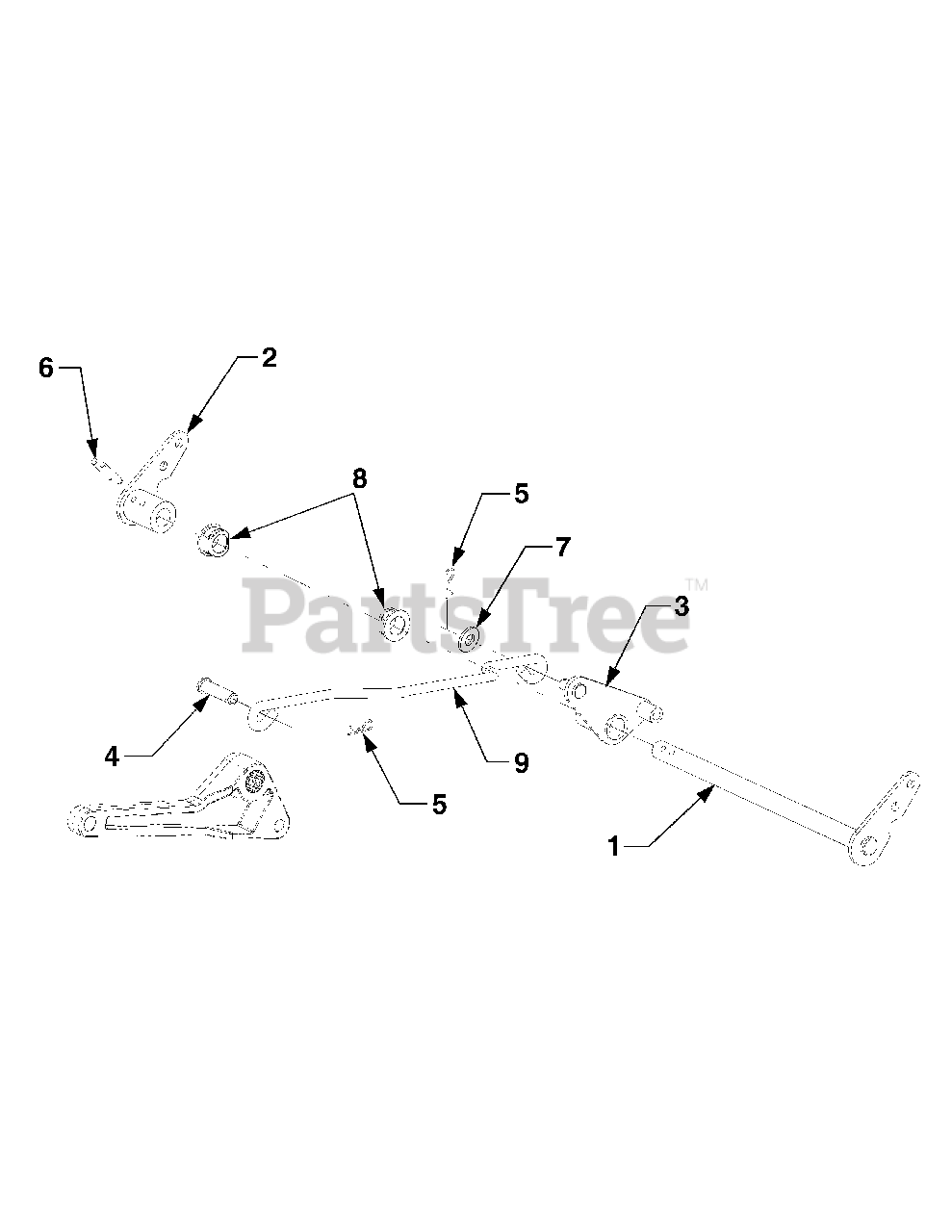

Deck Lift Parts Diagram

  • Title
1

Cub Cadet 603-0959

Shaft. Lift
(Superseded to 903-0959)

Variations

Cub Cadet 603-0959-0637

USE 903-0959-0637 SHAFT-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

$

$

Not available

3

Cub Cadet 603-0979-0637

Plate, Lift Crank

$

$

Currently unavailable

4

Cub Cadet 711-04343

Pin, Clevis, .625 x 2.18

$

$

Not available

5

Cub Cadet 714-0145

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 715-0118

Pin, Spirol, 5/16 x 1.75

$12.99

$

In Stock, Qty 7

0

7

Cub Cadet 736-0531

Washer, Flat, .635 x 1.24 x .181
(Superseded to 936-04088)

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 741-0170

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

9

Cub Cadet 747-3484A

Rod, Crank Lift

$32.99

$

Usually ships in 3-6 days

0
