5254 E (54CE542-710) - Cub Cadet Compact Tractor 4WD Transmission Connections 1B075G & After Parts Diagram

Compact Tractor

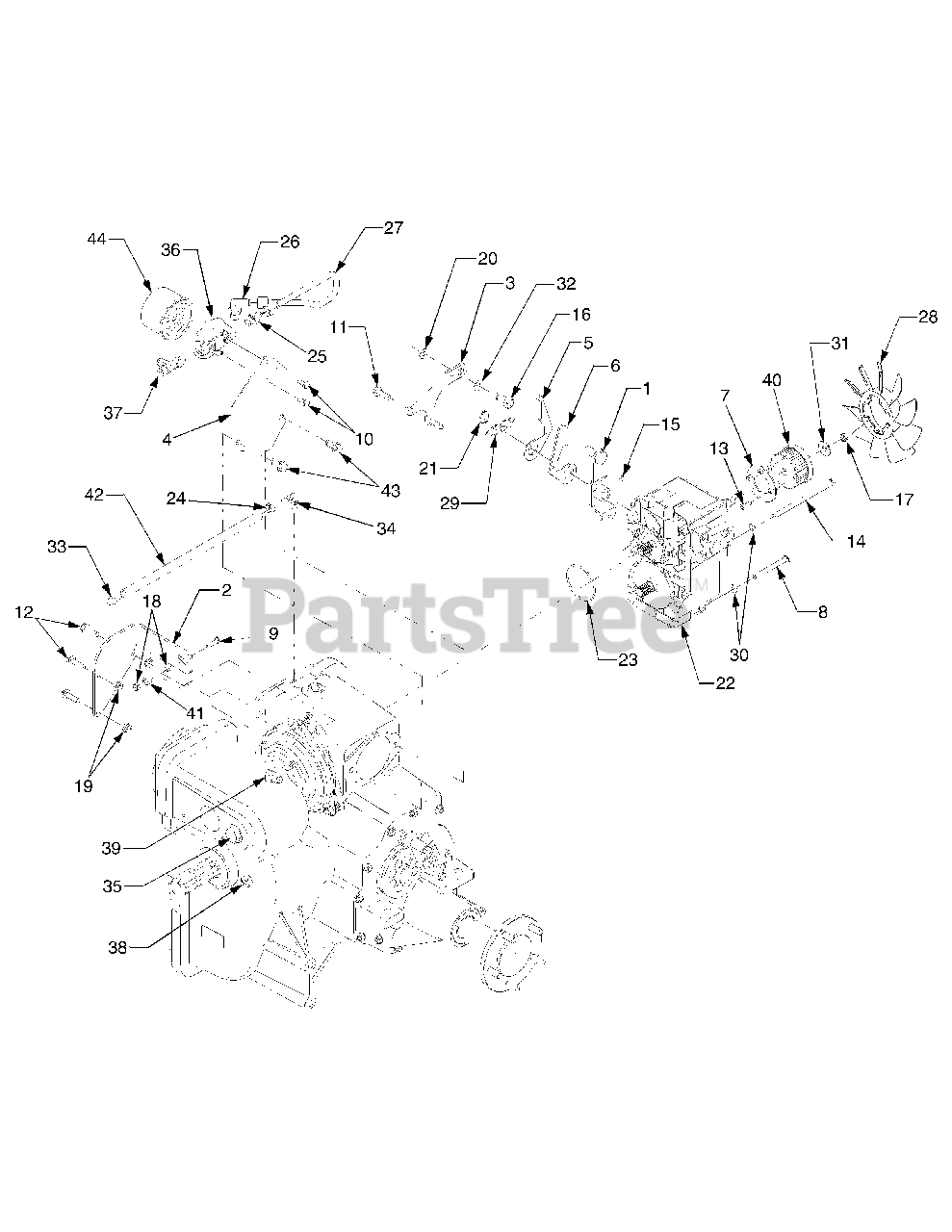

4WD Transmission Connections 1B075G & After Parts Diagram

  • Title

Cub Cadet 737-3120

Transmission Oil, 1 Qt.
(Superseded to 490-000-C051)

Note: 5 gal

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 737-3121

Transmission Oil, 1 Gal.

$77.99

$

In Stock, only 2 left!

0

Cub Cadet 759-3958

Sealant, Loctite® Black, 5.3 oz.

$

$

Not available

1

Cub Cadet 603-0980

Arm, Hydro
(Superseded to 903-0980)

$

$

Not available

2

Cub Cadet 603-04192

Bracket, Clutch Torque

$

$

Not available

3

Cub Cadet 603-04195

Bracket, Return

$

$

Not available

4

Cub Cadet 603-04298

Bracket, Filter Mounting

$

$

Not available

5

Cub Cadet 703-05041

Arm, Neutral - RH

$

$

Not available

6

Cub Cadet 703-05042

Arm, Neutral - LH

$43.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-05742

Keeper, Belt

$

$

Not available

8

Cub Cadet 710-0189

Screw, Hex Cap, 5/16-18 x 3.0 GR5

$6.49

$

In Stock, Qty 5

0

9

Cub Cadet 710-0299

Screw, Hex Cap, 1/4-28 x 1.0 GR5

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0817

Screw, Hex Wash. Hd. Tapp, 5/16-18 x 1.25 GR5

$6.99

$

In Stock, Qty 15

0

12

Cub Cadet 710-1882

Screw, Hex Flange, 5/16-18 x 1.5 GR5

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3218

Screw, Socket Hd. Cap 1/4-20 x .62 GR8

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-3226

Screw, Hex Cap Lock, 5/16-18 x 5.5 GR5

$14.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3242

Screw, Set - Lock 5/16 x .5 GR5

$

$

Not available

16

Cub Cadet 710-04040

Screw, Shoulder, .497 x .750: 3/8-16

$15.99

$

In Stock, only 1 left!

0

17

Cub Cadet 712-0262

Nut, Hex Jam Lock, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0896

Nut, Hex Nylon Lock, 1/4-28

$4.99

$

In Stock, Qty 6

0

19

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 716-0111

Ring, Retaining

$6.99

$

In Stock, only 4 left!

0

22

Cub Cadet 718-04141

Pump, Hydrostatic Transmission
(Superseded to 918-04141)

$2322.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 721-04002

O-Ring, 2.425 ID x .103
(Superseded to 921-04002)

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 727-3002

Fitting, Straight
(Superseded to 927-3002)

$12.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 727-3012

Fitting, 90 Degree

$26.99

$

In Stock, only 4 left!

0

27

Cub Cadet 727-04095

Tube, Hydro Inlet
(Superseded to 927-04095)

$

$

Not available

28

Cub Cadet 731-05247

Fan, Transmission Cooling
(Superseded to 931-05247)

$39.99

$

In Stock, only 2 left!

0

29

Cub Cadet 732-3119

Spring, Extension, .50 x 1.975 x.072
(Superseded to 732-3119A)

$23.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0331

Washer, Belleville

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0864

Washer, Thrust, .375 x .812 x .06

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 737-0296

Vent, 3/8 Dia

$12.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 737-0299

Fitting, Elbow

$

$

Not available

35

Cub Cadet 737-0349

Fitting, Plug

$21.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 737-04011

Adapter, Oil Filter
(Superseded to 937-04011)

$47.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 737-04026

Fitting, Run Tee

$

$

Not available

38

Cub Cadet 737-04032

Indicator, Oil Level Sight
(Superseded to 937-04032)

$

$

Not available

39

Cub Cadet 737-04047

Fitting, Elbow
(Superseded to 937-04047)

$

$

Not available

40

Cub Cadet 748-04086

Adapter. Cog Pump
(Superseded to 948-04086)

$172.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 751-0535

Hose, Fuel Line .38in

$

$

Currently unavailable

42

Cub Cadet 751-3130

Hose, Vent 13 in.

$32.99

$

Usually ships in 3-6 days

0

43

Cub Cadet GW-90064

Screw, Hex Wash Hd Tapp 3/8-16 x .62
(Superseded to 710-0623)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet BS-492932S

Filter, Hydro Pump

$12.99

$

In Stock, Qty 20+

0
