5254 E (54CE542-710) - Cub Cadet Compact Tractor 4WD Axle Assembly (Part 1) 1B075G & After Parts Diagram

Compact Tractor

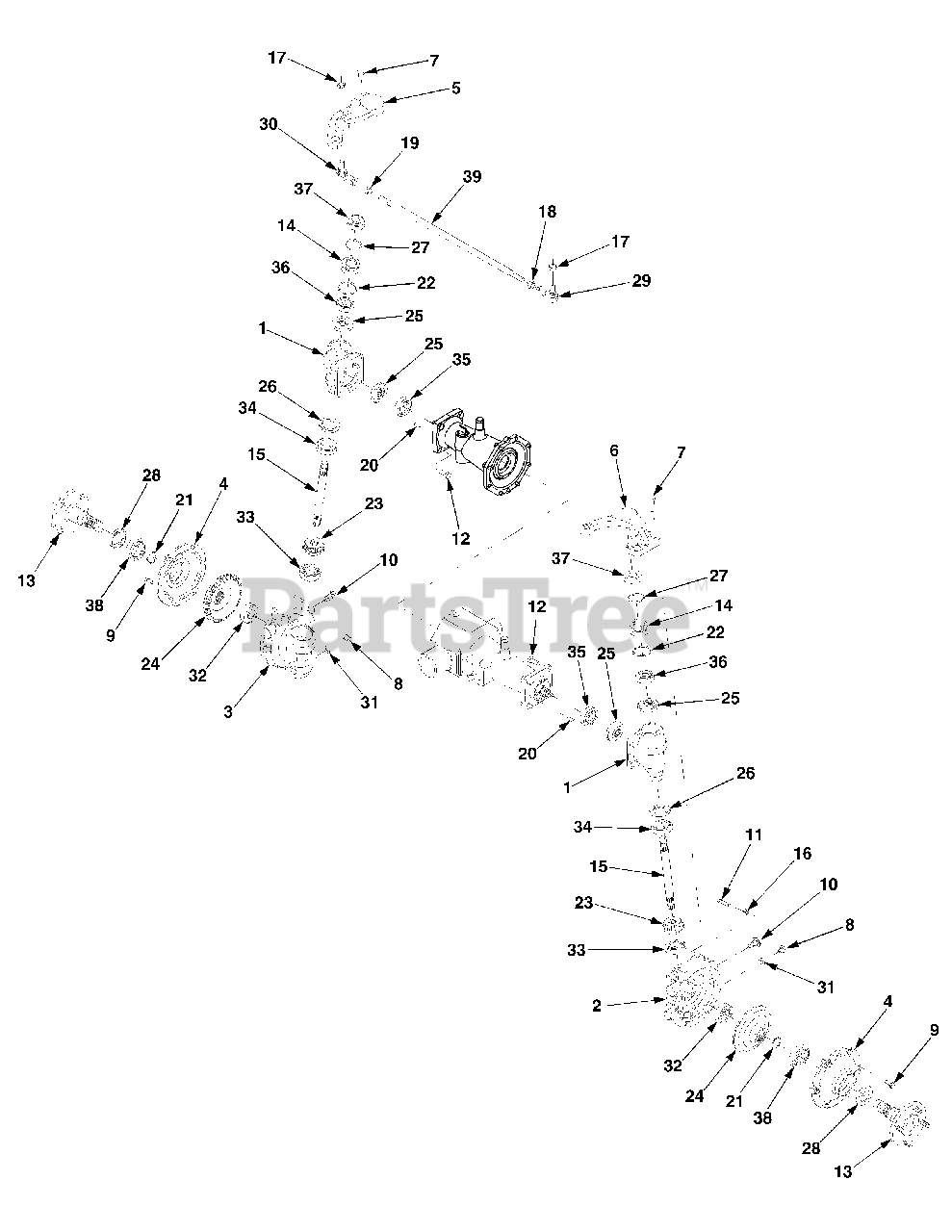

4WD Axle Assembly (Part 1) 1B075G & After Parts Diagram

  • Title

1

Cub Cadet 619-04017A

Housing, Kingpin
(Superseded to 619-04017AP)

$

$

Not available

Cub Cadet 759-3958

Sealant, Loctite(®) Black, 5.3 oz.

$

$

Not available

2

Cub Cadet 619-04020A

Housing, Axle Drop, RH
(Superseded to 919-04020A)

$

$

Not available

3

Cub Cadet 619-04021A

Housing, Axle Drop, LH
(Superseded to 919-04021A)

$327.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 619-04024A

Cover, Axle
(Superseded to 919-04024A)

$111.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 619-04027A

Arm, Steering, LH
(Superseded to 919-04027A)

$

$

Not available

6

Cub Cadet 619-04028A

Arm, Steering, RH
(Superseded to 919-04028A)

$

$

Not available

7

Cub Cadet 710-1313

Screw, Hex Cap, M10-1.5 x 35 GR8.8

$3.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1323

Plug, Hex, 3/8-16 x .5

$

$

Not available

9

Cub Cadet 710-1681

Screw, Hex Cap, M8-1.25 x 20 GR8.8

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-1633

Plug, Screw, M14-1.5 x .827

$14.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-1683

Screw, Hex Cap, M8-1.25 x 30

$

$

Not available

12

Cub Cadet 710-3208

Screw, Hex Cap, M10-1.5 x 25

$3.99

$

In Stock, only 4 left!

0

13

Cub Cadet 711-04060

Axle, Flange
(Superseded to 911-04060)

$

$

Not available

Cub Cadet 710-0852

Stud, Rib Neck, 7/16-14 x 1.6

$6.49

$

In Stock, only 4 left!

0

14

Cub Cadet 711-04104

Shaft, Stub
(Superseded to 911-04104)

$

$

Not available

15

Cub Cadet 711-04106

Shaft, Kingpin
(Superseded to 911-04106)

$

$

Not available

16

Cub Cadet 712-0690

Nut, Hex, M8-1.25

$

$

Not available

17

Cub Cadet 712-3103

Nut, Hex Flange Lock, M12-1.75

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 712-3104

Nut, Hex, M12-1.75 RH Thrd.

$6.99

$

In Stock, only 2 left!

0

19

Cub Cadet 712-3105

Nut, Hex, M12-1.75 LH Thrd.

$9.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 715-04014

Pin, Dowel, 8mm x 20mm
(Superseded to 915-04014)

$

$

Not available

21

Cub Cadet 716-0201

Ring, Retaining

$5.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 716-0393

Ring, Retaining

$

$

Not available

23

Cub Cadet 717-04040

Gear, Bevel, 13T
(Superseded to 917-04040)

$131.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 717-04041

Gear, Bevel, 34T
(Superseded to 917-04041)

$

$

Not available

25

Cub Cadet 717-04045

Gear, Bevel, 14T
(Superseded to 917-04045)

$

$

Not available

26

Cub Cadet 721-04087

Seal, Oil, 38 x 55 x 7 w/Dirt Lip

$21.99

$

In Stock, only 2 left!

0

27

Cub Cadet 721-04066

O-Ring, 40mm x 3mm
(Superseded to 921-04066)

$

$

Not available

28

Cub Cadet 721-0497

Seal, Oil, 35mm x 55mm x 8mm

$13.99

$

In Stock, only 4 left!

0

29

Cub Cadet 723-0462

Ball Joint, 12-1.75 RH

$69.99

$

In Stock, Qty 11

0

30

Cub Cadet 723-0463

Ball Joint, 12-1.75 LH

$69.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0567

Washer, Flat, .39 x .75 x .062

$3.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 741-0301

Bearing, Ball
(Superseded to 941-0301)

$53.99

$

In Stock, only 4 left!

0

33

Cub Cadet 741-04034

Bearing, Ball
(Superseded to 941-04034)

$

$

Not available

34

Cub Cadet 741-04043

Bearing, Tapered Roller w/ Race ...
(Superseded to 941-04043)

$54.99

$

In Stock, only 1 left!

0

35

Cub Cadet 741-04044

Bearing, Ball
(Superseded to 941-04044)

$30.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 741-04068

Bearing, Ball
(Superseded to 941-04068)

$20.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 741-0919

Bearing, Ball
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

38

Cub Cadet 741-3033A

Bearing, Ball
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 7

0

39

Cub Cadet 747-04134

Rod, Tie, M12-1.75
(Superseded to 947-04134)

$

$

Not available
