5254 E (54BE542-710) - Cub Cadet Compact Tractor Transmission Mounting 1B065G & Before Parts Diagram

Compact Tractor

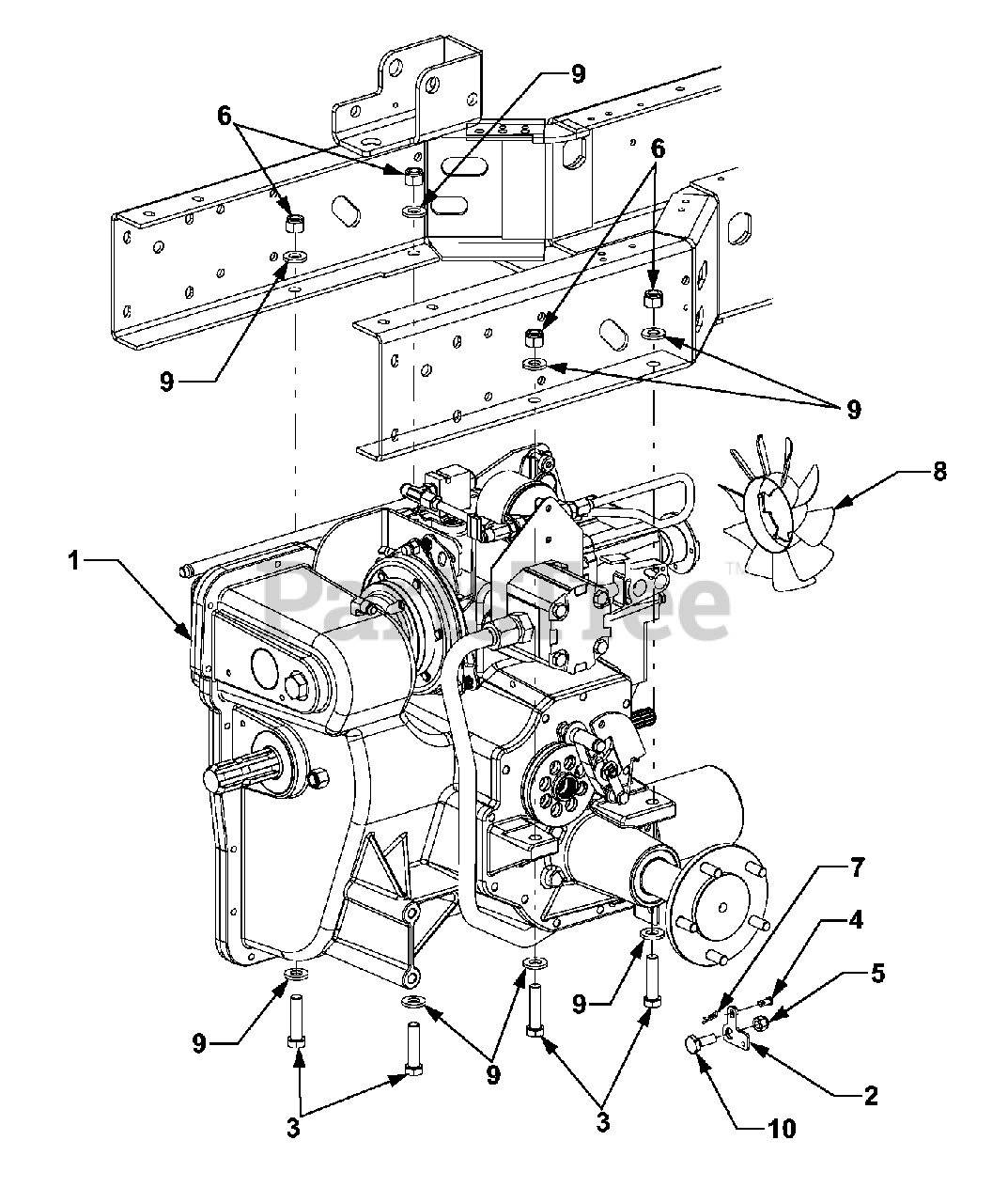

Transmission Mounting 1B065G & Before Parts Diagram

  • Title
1

Cub Cadet N/A

Transmission Assembly

$

$

Currently unavailable

2

Cub Cadet 703-05051

Link, Diff Lock Actuator

$

$

Not available

3

Cub Cadet 710-3071

Screw, Hex Cap 1/2-13 x 2.0 GR8

$

$

Not available

4

Cub Cadet 711-0701

Pin, Clevis, .25 x .50
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

5

Cub Cadet 712-3061

Nut. Hex Insert Lock, 3/8-24

$6.99

$

In Stock, Qty 14

0

6

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 731-3371

Fan, Transmission Cooling
(Superseded to 931-05247)

$39.99

$

In Stock, only 2 left!

0

9

Cub Cadet 736-3019

Washer, Flat, .531 x .1062 x .134

$5.99

$

In Stock, Qty 11

0

10

Cub Cadet 738-0689

Screw, Shoulder, 1/2 Dia. x .180
(Superseded to 938-0689)

$8.99

$

In Stock, only 2 left!

0
